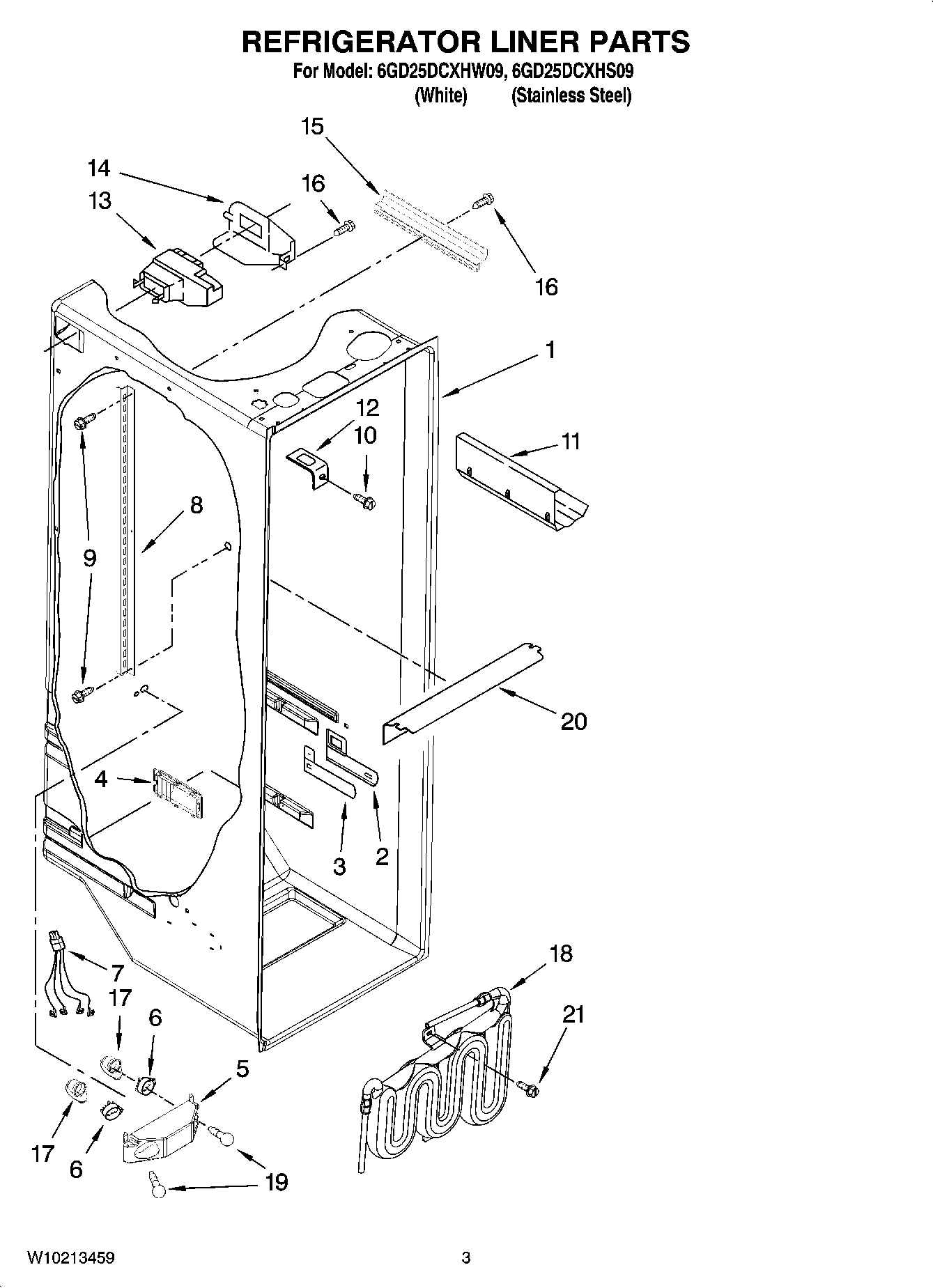

6GD25DCXHW09 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
6	Light Lens
7	Wire Harness, Dual Crisper
8	Shelf Ladder
9	WP489478 Whirlpool Refrigerator Screw
10	WP488488 Whirlpool Refrigerator Screw
11	W10777924 Whirlpool Refrigerator Wine Rack
12	WP2256085 Whirlpool Refrigerator Retainer
13	WPW10151378 Whirlpool Refrigerator Diffuser
14	WP2212240 Whirlpool Refrigerator Cover
15	2150331 Whirlpool Refrigerator Wire Cover
16	W10759522 Whirlpool Screw
17	W11447232 Whirlpool Refrigerator Socket
18	RESERVOIR
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Light Lens
21	Screw (2)
