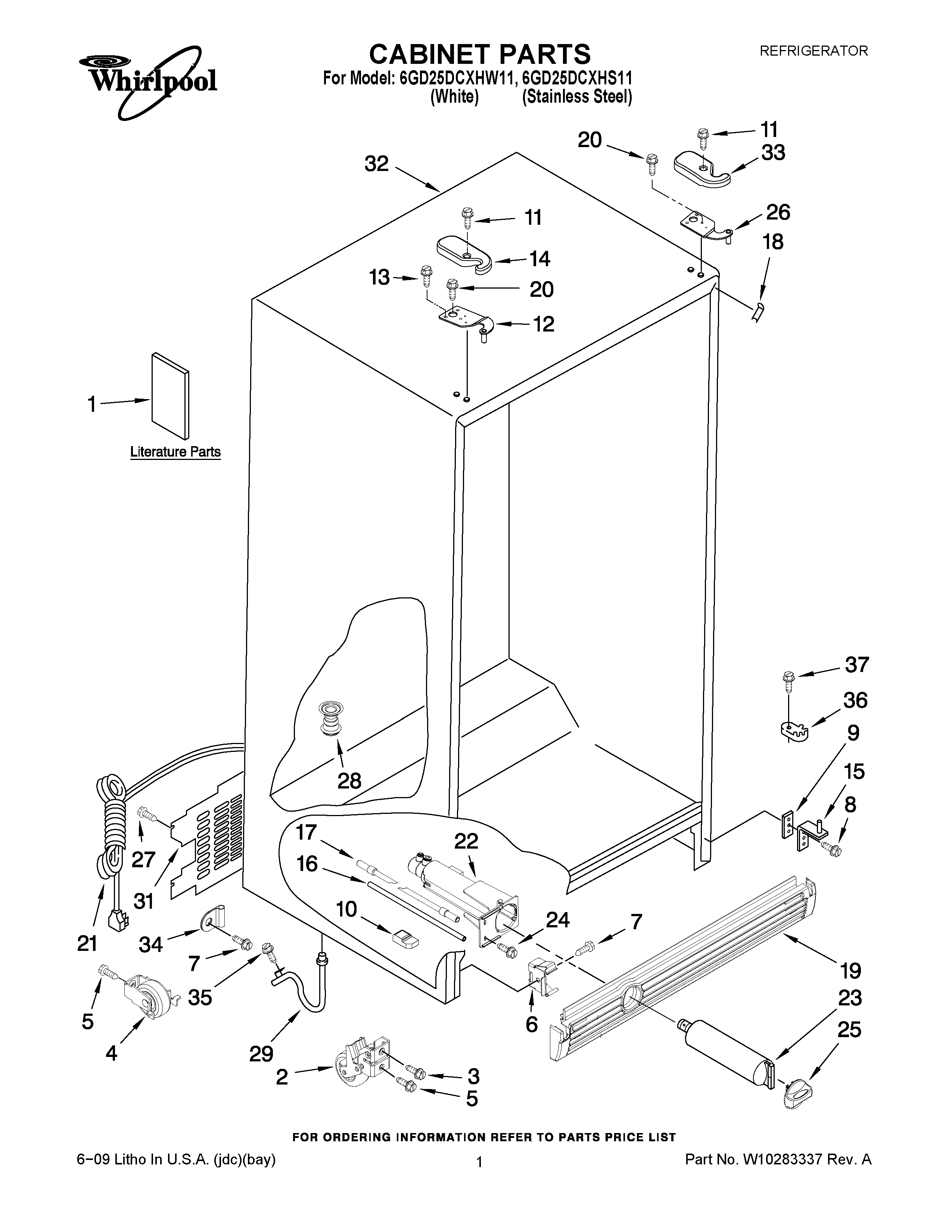

6GD25DCXHW11 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
1Use & Care Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP489497 Whirlpool Screw
9WP2181911 Whirlpool Refrigerator Shim
10Block, Housing Support
11WP8281227 Whirlpool Screw
12WP2203770 Whirlpool Refrigerator Door Hinge
13WP489128 Whirlpool Refrigerator Screw
14WP2203407B Whirlpool Refrigerator Cover
14WP2203407W Whirlpool Refrigerator Cover
15W10138965 Whirlpool Refrigerator Door Hinge
16WPW10350006 Whirlpool Refrigerator Water Tube
17WP2304697 Whirlpool Refrigerator Water Tube
18Filler, Wrapper (White)
18Filler, Wrapper (Black)
19W10803964 Whirlpool Grille Assembly
21W10199314 Whirlpool Refrigerator Power Cord
22WP2186443 Whirlpool Water Filter Housing
23EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
24WP489500 Whirlpool Refrigerator Screw
25WP2186494B Whirlpool Refrigerator Filter Cap
25WP2186494W Whirlpool Water Filter Cap
26WP2203771 Whirlpool Refrigerator Door Hinge
27WP489464 Whirlpool Refrigerator Screw
28W11566763 Whirlpool Fitting
29W11512417 Whirlpool Drain Connector
31Cover, Unit
32CABINET (NOT A SERVICEABLE PART)
33WP2203408W Whirlpool Refrigerator Cover
33WP2203408B Whirlpool Refrigerator Cover
34489348 Whirlpool Refrigerator Tube Clamp
35SCREW
36WPW10329686 Whirlpool Door Cam Black
37WP489483 Whirlpool Screw
