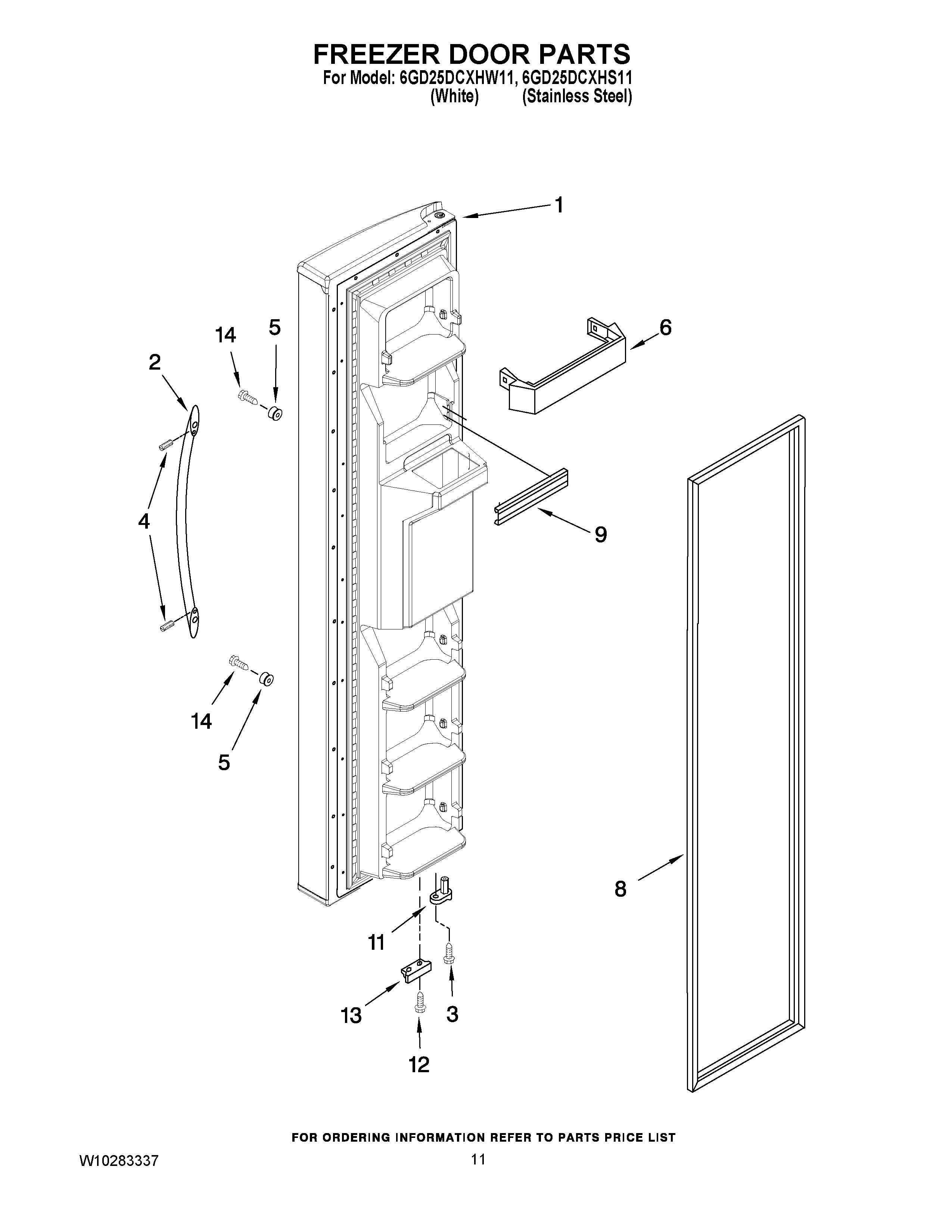

6GD25DCXHW11 07 – FREEZER DOOR PARTS

6GD25DCXHW11 07 – FREEZER DOOR PARTS

Written by

in

6GD25DCXHW11 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1FREEZER DOOR (INCLUDES ITEM No.8 AND DISPENSER FRONT PARTS) (WHITE)
2Handle, Door (Stainless Steel)
2WP2319727W Whirlpool Refrigerator Handle
3WP3400012 Whirlpool Refrigerator Screw
4SCREW
5WPW10170540 Whirlpool Screw
6WP2171157 Whirlpool Shelf Trim
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13W10185566 Whirlpool Bracket
13Bracket, Door Stop (Black)
14W10141596 Whirlpool Screw Assembly
