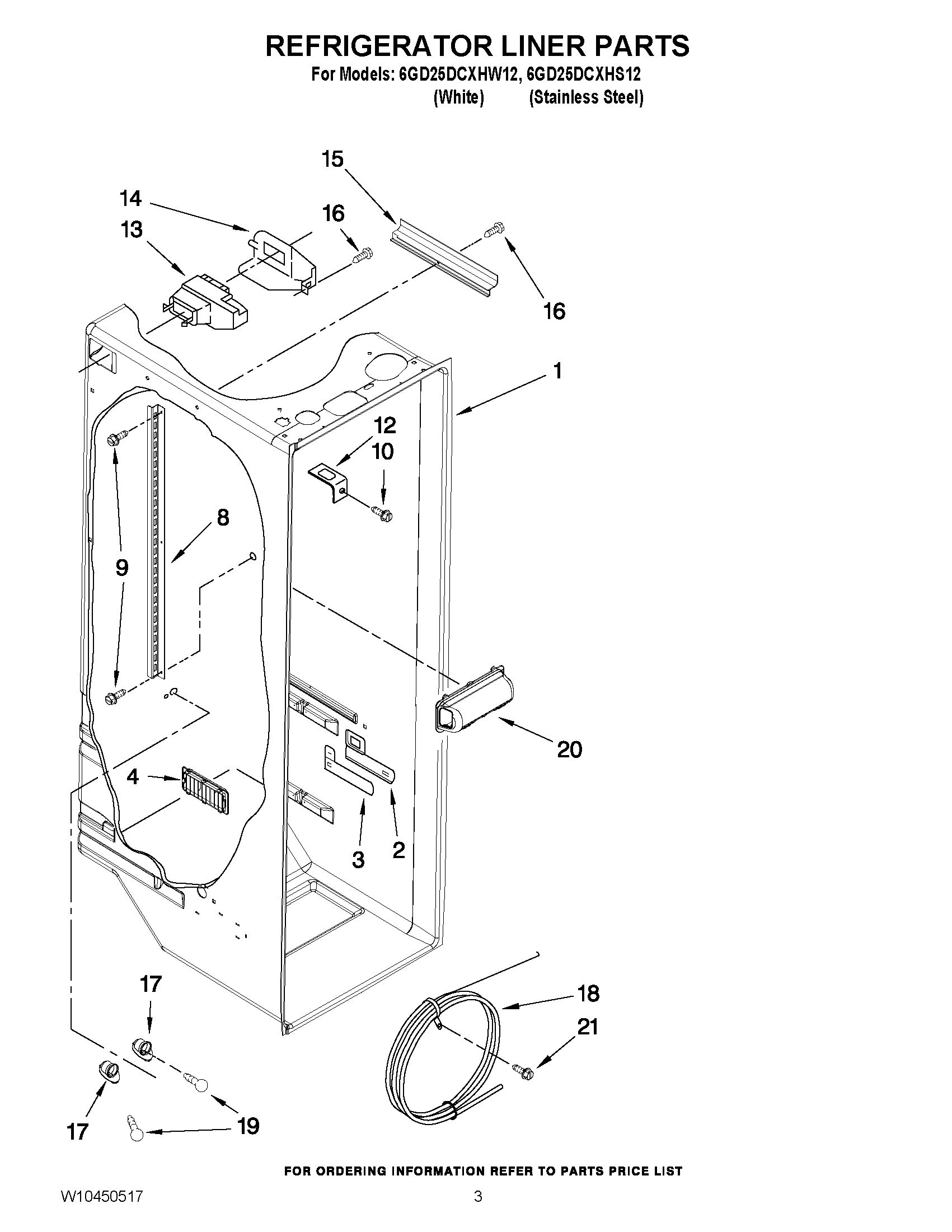

6GD25DCXHW12 02 – REFRIGERATOR LINER PARTS

6GD25DCXHW12 02 – REFRIGERATOR LINER PARTS

Written by

in

6GD25DCXHW12 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
8Shelf Ladder
9WP489478 Whirlpool Refrigerator Screw
10WP488488 Whirlpool Refrigerator Screw
12WP2256085 Whirlpool Refrigerator Retainer
13WPW10151378 Whirlpool Refrigerator Diffuser
14WP2212240 Whirlpool Refrigerator Cover
152150331 Whirlpool Refrigerator Wire Cover
16W10759522 Whirlpool Screw
17W11447232 Whirlpool Refrigerator Socket
18RESERVOIR
19WP67002552 Whirlpool Refrigerator Light Bulb
20W11239891 Whirlpool Refrigerator Light Lens
21W10141518 Whirlpool Refrigerator Screw
