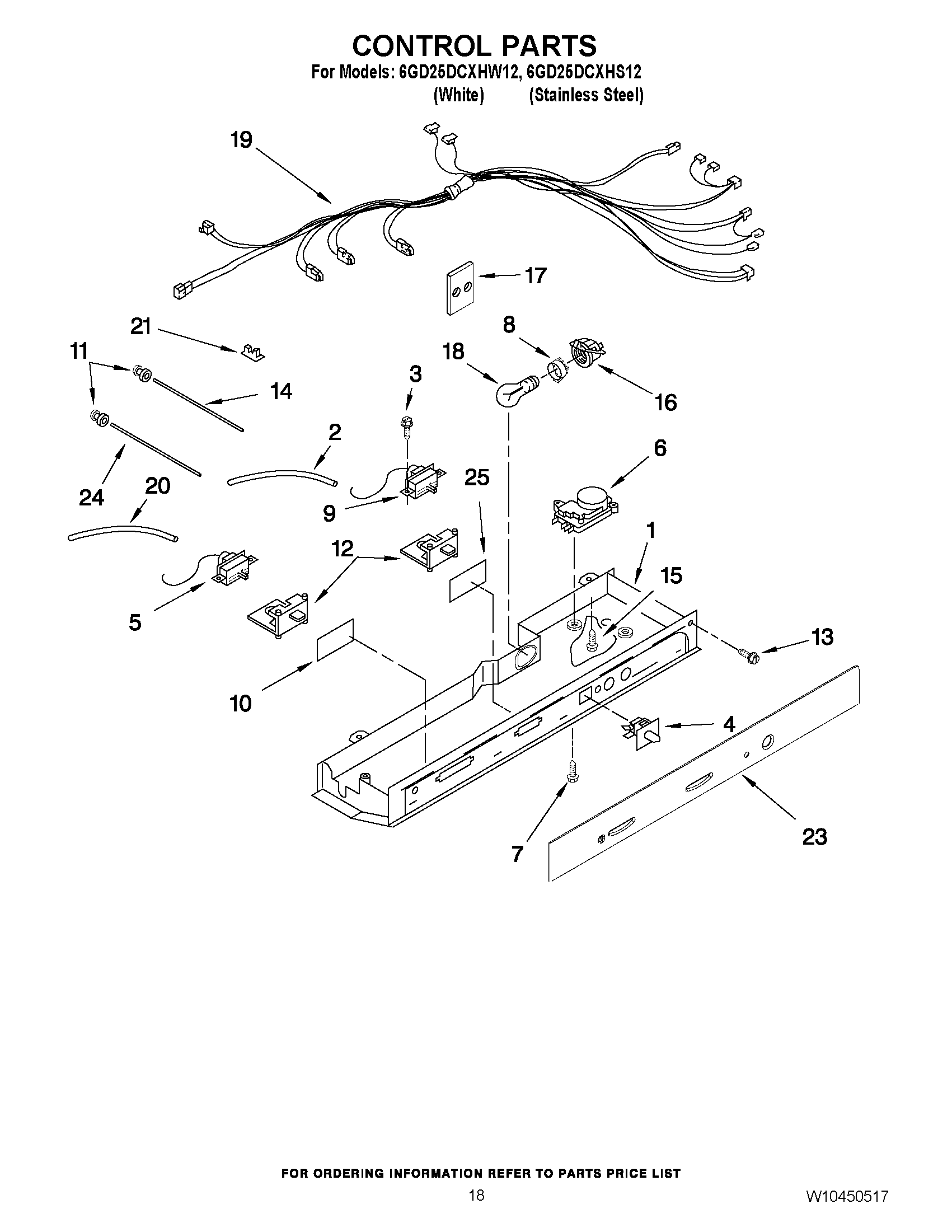

6GD25DCXHW12 11 – CONTROL PARTS

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2321289 Whirlpool Refrigerator Thermostat
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	SHROUD-LGHT SOCKET
9	WP2321305 Whirlpool Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
13	SCREW
14	Fiber Optic
15	WP488488 Whirlpool Refrigerator Screw
16	W11447232 Whirlpool Refrigerator Socket
17	Heat Shield
18	WP67002552 Whirlpool Refrigerator Light Bulb
19	W10129766 Whirlpool Wire Harness
21	CLIP, WIRING
23	Escutcheon, Control Box
24	Light Bar (FC)
25	Window
