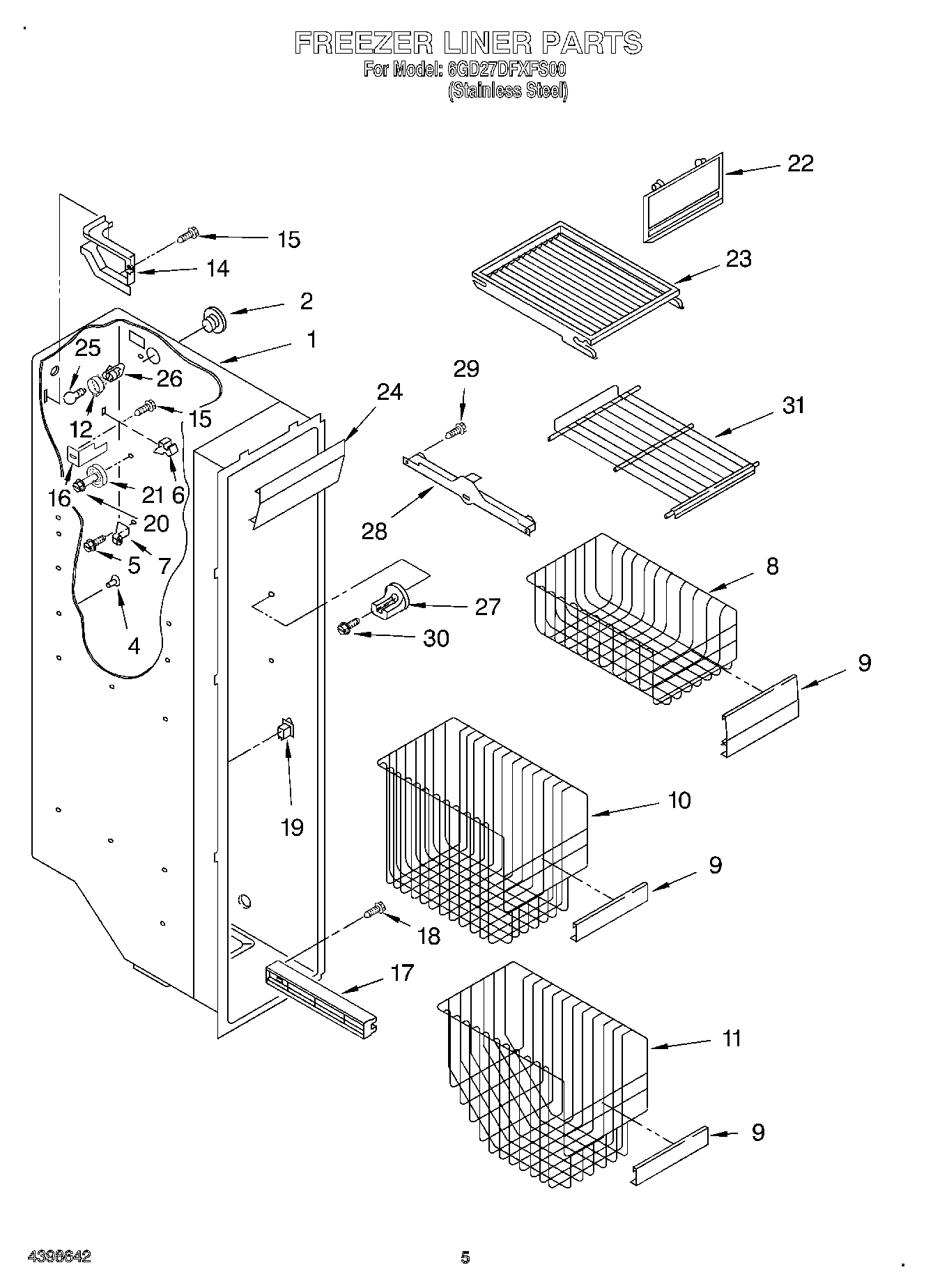

6GD27DFXFS00 04 – FREEZER LINER

6GD27DFXFS00 04 – FREEZER LINER

Written by

in

6GD27DFXFS00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP941839 Whirlpool Refrigerator Button Plug
4Grommet
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Basket
9Trim, Basket
10Basket, Tall
11Basket, Slope
12WP2175210 Whirlpool Refrigerator Shroud
14Cover, Wiring
15SCREW
16Bracket, Fill Tube
17Slide, Basket (Right Side (2))
17Slide, Basket (Left Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP3400806 Whirlpool Screw
21WP2196483 Whirlpool Refrigerator Shelf Stud
22WP2171713 Whirlpool Refrigerator Ice Door
23Shelf, Top Compartment
242171705 Whirlpool Refrigerator Light Lens
25WP67002552 Whirlpool Refrigerator Light Bulb
264387478 Whirlpool Refrigerator Light Socket
27Stud, Rear
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
30W10142289 Whirlpool Air Conditioner Screw
31WP2174267 Whirlpool Refrigerator Wire Shelf
