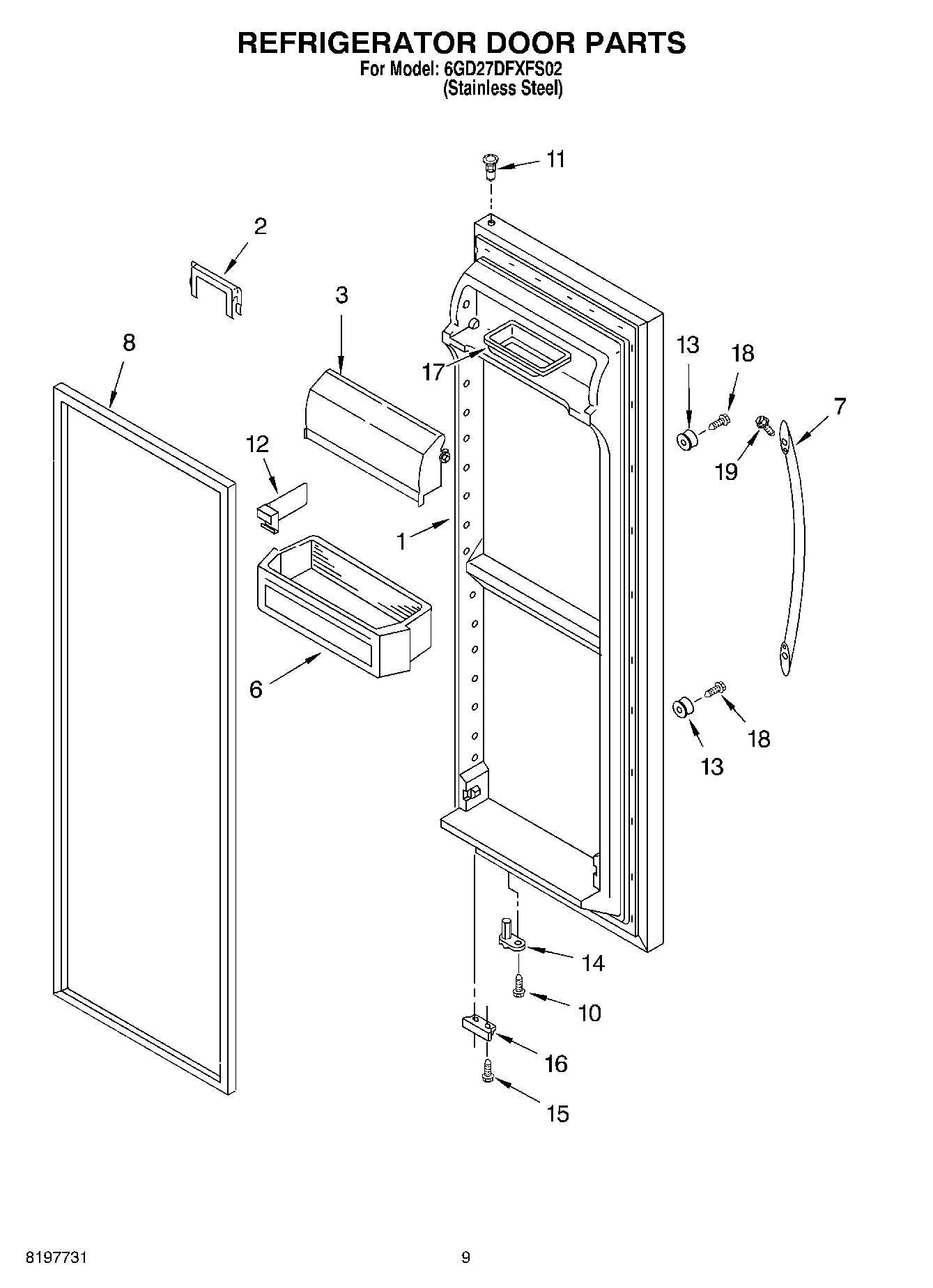

6GD27DFXFS02 06 – REFRIGERATOR DOOR

6GD27DFXFS02 06 – REFRIGERATOR DOOR

Written by

in

6GD27DFXFS02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
6WP2203872 Whirlpool Refrigerator Cantilever Bin
7Handle (Stainless Steel)
82159083 Whirlpool Gasket Door
10WP3400012 Whirlpool Refrigerator Screw
11WP2182181 Whirlpool Refrigerator Thimble
12Divider, Bin
13Stud, Handle
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
17Butter Tray
18WP489463 Whirlpool Refrigerator Screw
19Setscrew, 10-32
