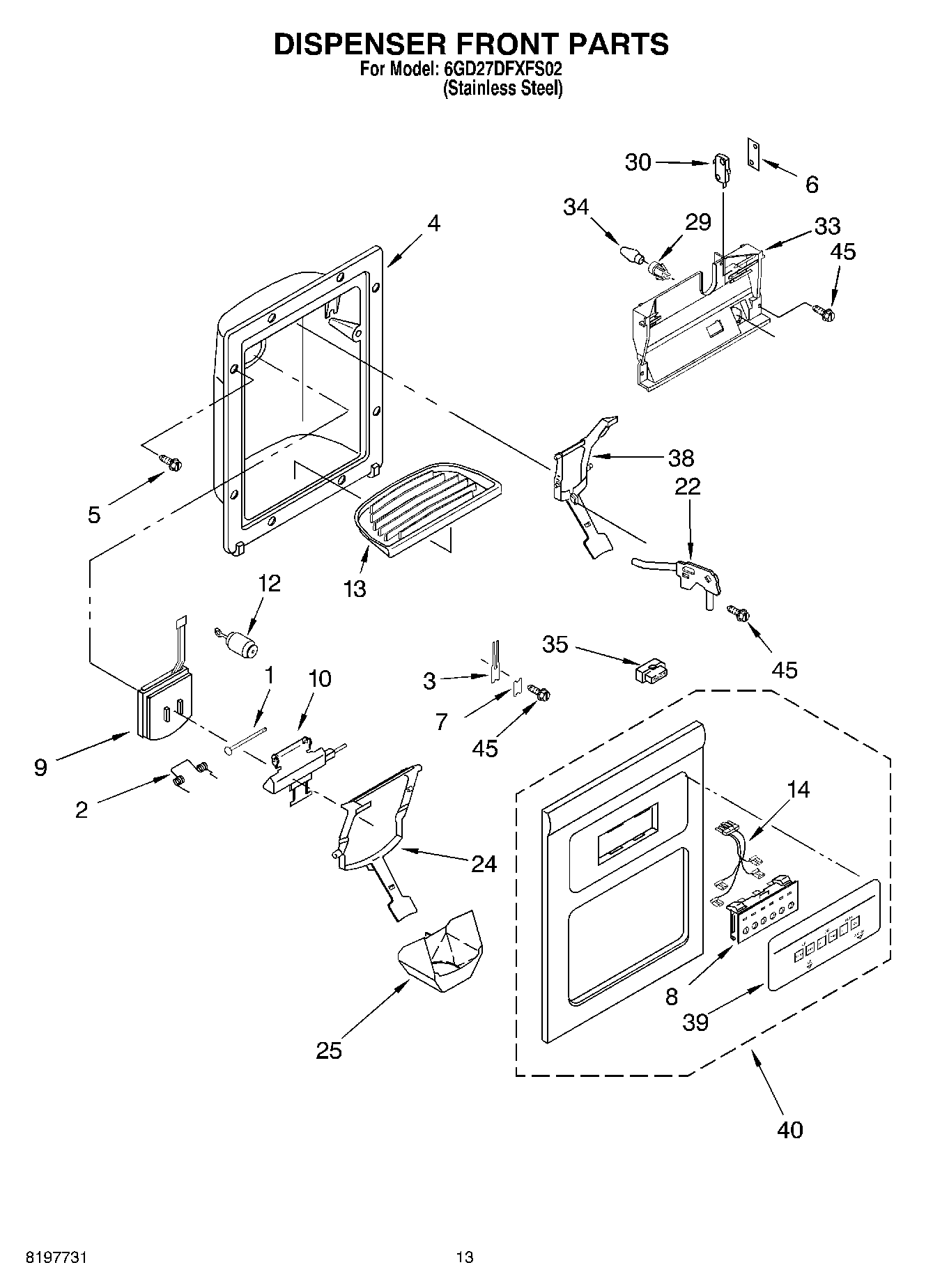

6GD27DFXFS02 08 – DISPENSER FRONT

Products

Position	Product
1	WP2196195 Whirlpool Refrigerator Door Pin
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	Housing, Dispenser (Not a Serviceable Part)
5	WP489069 Whirlpool Compactor Screw
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
8	WP2180236 Whirlpool Refrigerator Switch
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	Delay Mechanism
13	WP2180325 Whirlpool Dispenser Grille
14	2311650 Whirlpool Refrigerator Wire Harness
22	8201537 Whirlpool Water Tubing Assembly
24	Lever, Ice Dispenser (Black (Storm Grey Pad))
25	WP2180224 Whirlpool Dispenser Funnel Guide
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
35	Connector
38	WPW10152858 Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover
40	Front Cover, Housing (Includes Item) 8, 14 & 39)
45	WP3400906 Whirlpool Refrigerator Screw
