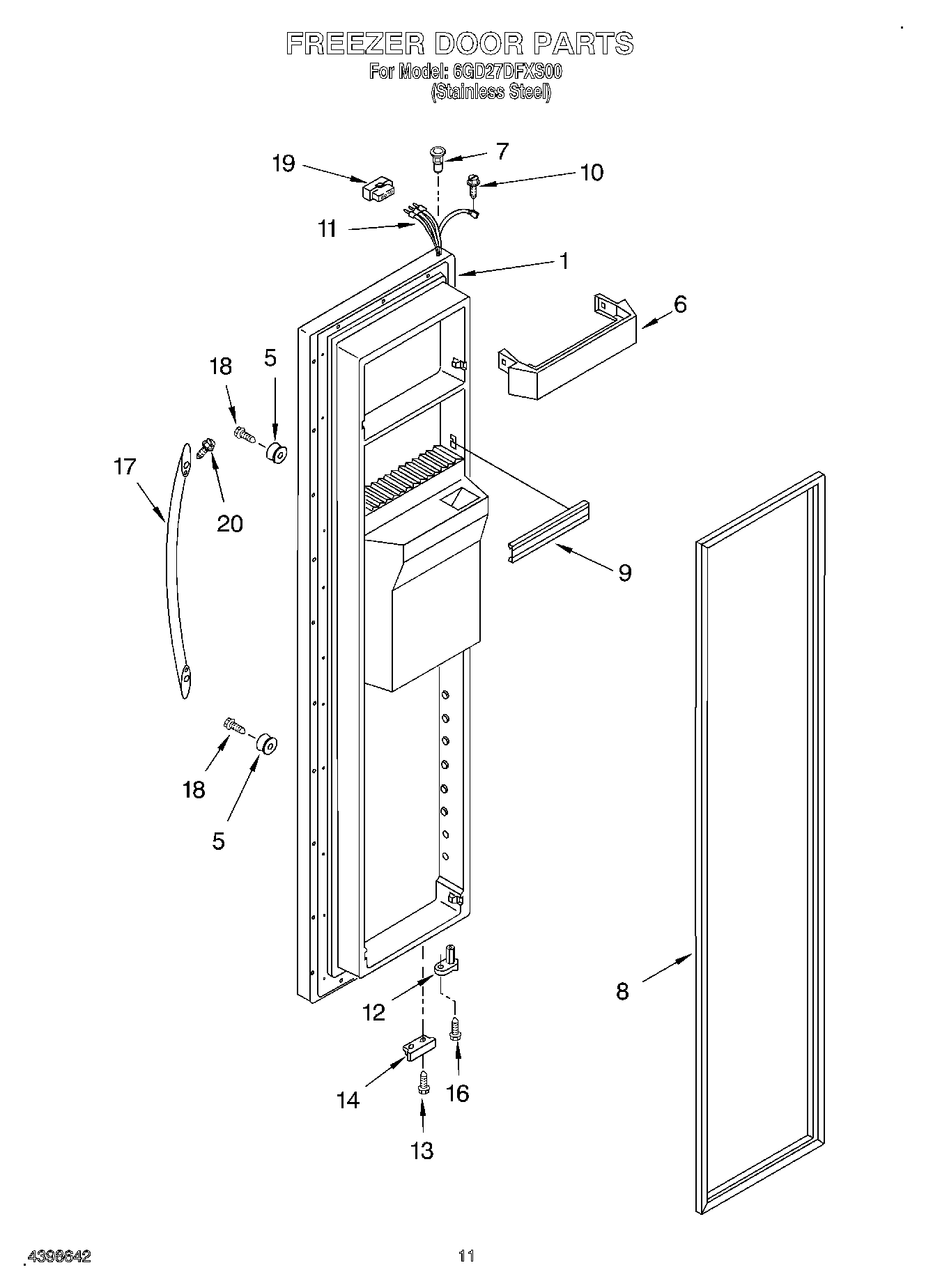

6GD27DFXS00 07 – FREEZER DOOR

6GD27DFXS00 07 – FREEZER DOOR

Written by

in

6GD27DFXS00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts)
5Stud, Handle
6WP2171157 Whirlpool Shelf Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
16WP3400012 Whirlpool Refrigerator Screw
17Handle
18WP489463 Whirlpool Refrigerator Screw
19WP2154473 Whirlpool Refrigerator Connector
20Setscrew, 10-32
