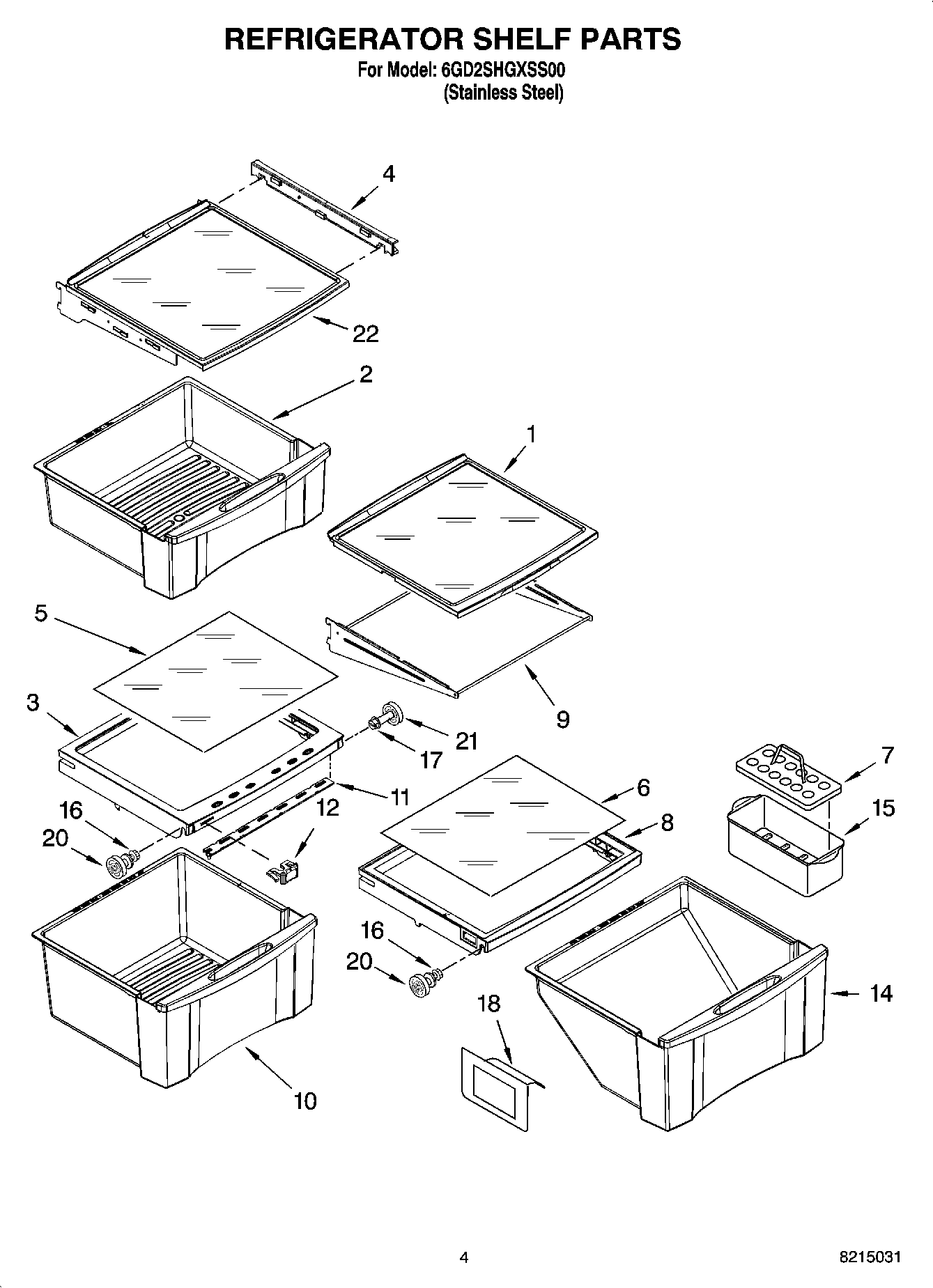

6GD2SHGXSS00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Slide Out (2)
2Snack Bin Asm
3Cover, Crisper
4WP2223320 Whirlpool Slide Track Pan
5WP2223591 Whirlpool Refrigerator Glass Shelf
6Glass, Meat Cover
7WP2177817 Whirlpool Refrigerator Egg Container
8WP2223242 Whirlpool Refrigerator Cover
9Frame Assembly (2)
10WPW10233488 Whirlpool Refrigerator Crisper Pan
11Knob, Humidity Control
122223308 Whirlpool Refrigerator Slide
14Meat Pan Assembly
15W10136387A Whirlpool Refrigerator Egg Container
16WP3-24004-109 Whirlpool Refrigerator Screw
17WP3400806 Whirlpool Screw
182179350 Whirlpool Refrigerator Deflector
20W11223328 Whirlpool Refrigerator Shelf Stud
21WP2196483 Whirlpool Refrigerator Shelf Stud
22WP2223288 Whirlpool Refrigerator Cantilever Shelf
