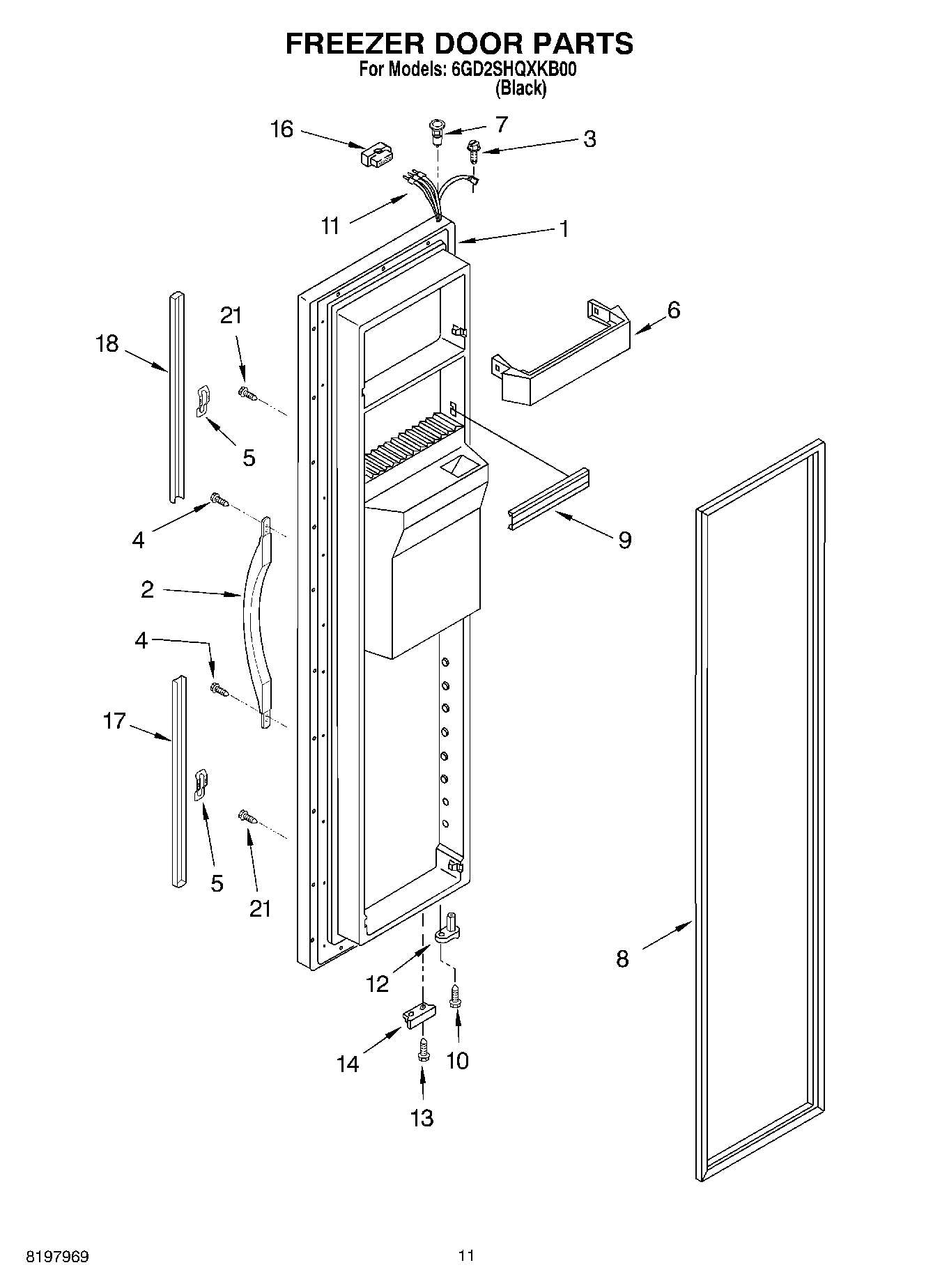

6GD2SHQXKB00 08 – FREEZER DOOR

6GD2SHQXKB00 08 – FREEZER DOOR

Written by

in

6GD2SHQXKB00 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Black (Includes Item No.8 And Dispenser Front Parts))
2WP2186649B Whirlpool Refrigerator Handle
3WP489128 Whirlpool Refrigerator Screw
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
6WP2156021 Whirlpool Refrigerator Door Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP2154473 Whirlpool Refrigerator Connector
17WP2194969B Whirlpool Refrigerator Handle Trim
18WP2194971B Whirlpool Refrigerator Handle Trim
21WP3400852 Whirlpool Refrigerator Screw
