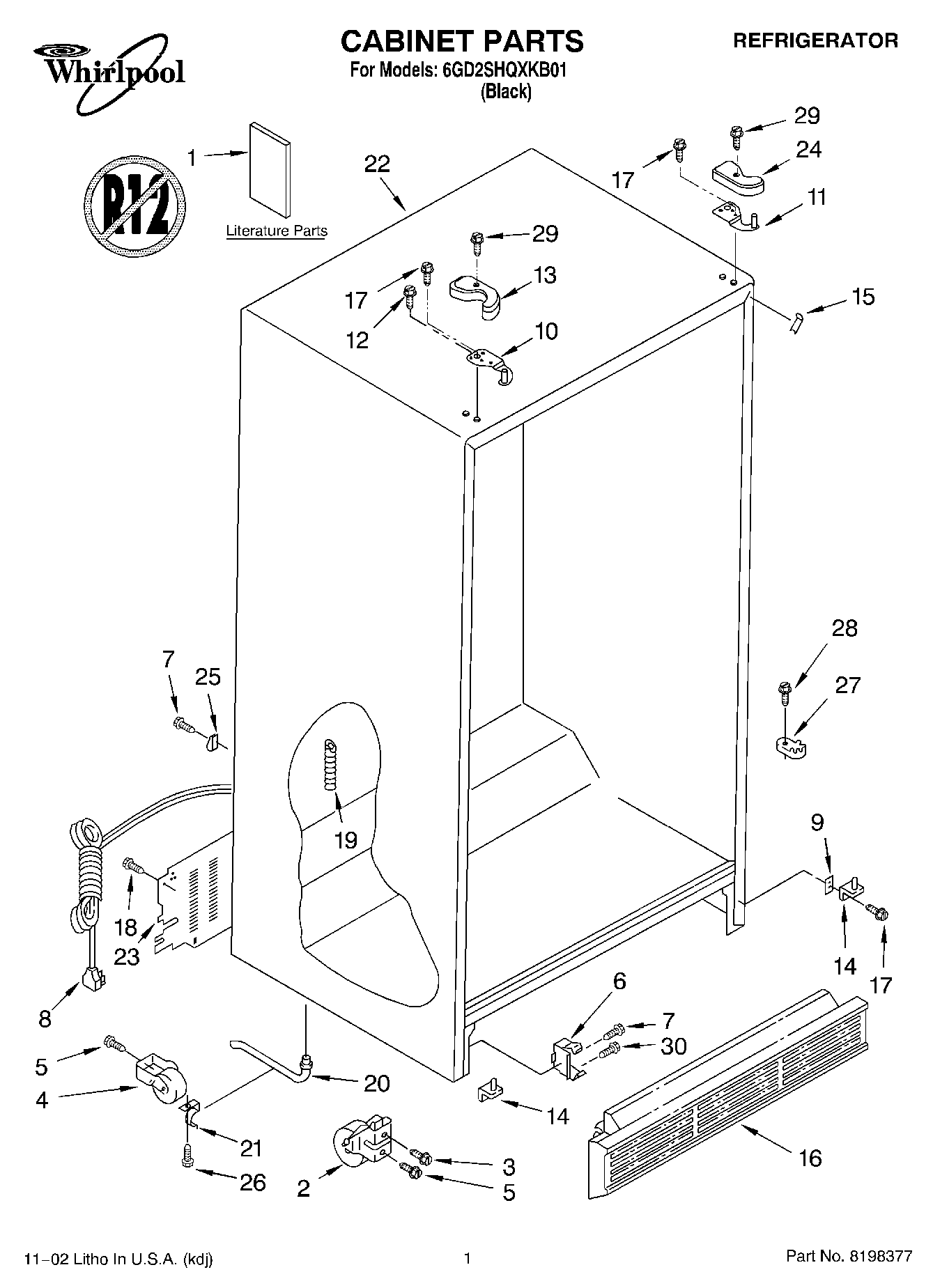

6GD2SHQXKB01 01 – CABINET, LITERATURE

6GD2SHQXKB01 01 – CABINET, LITERATURE

Written by

in

6GD2SHQXKB01 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Use & Care Guide)
1WPL LIT628371
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8Service Cord
9WP2209697 Whirlpool Refrigerator Shim
10WP2203770 Whirlpool Refrigerator Door Hinge
11WP2203771 Whirlpool Refrigerator Door Hinge
13WP2203407B Whirlpool Refrigerator Cover
148201707 Whirlpool Door Hinge
15Filler, Wrapper (Black)
16W10804014 Whirlpool Refrigerator Grille
17WP489497 Whirlpool Screw
18WP489464 Whirlpool Refrigerator Screw
19W11566763 Whirlpool Fitting
20WP1108438 Whirlpool Refrigerator Extension
21WP1108439 Whirlpool Refrigerator Clip
22Cabinet (Not A Service Part)
23Cover, Unit
24WP2203408B Whirlpool Refrigerator Cover
25489348 Whirlpool Refrigerator Tube Clamp
27WPW10329686 Whirlpool Door Cam Black
28WP489483 Whirlpool Screw
29WP8281227 Whirlpool Screw
30WP489128 Whirlpool Refrigerator Screw
