6GD2SHQXKB02 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

6GD2SHQXKB02 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Written by

in

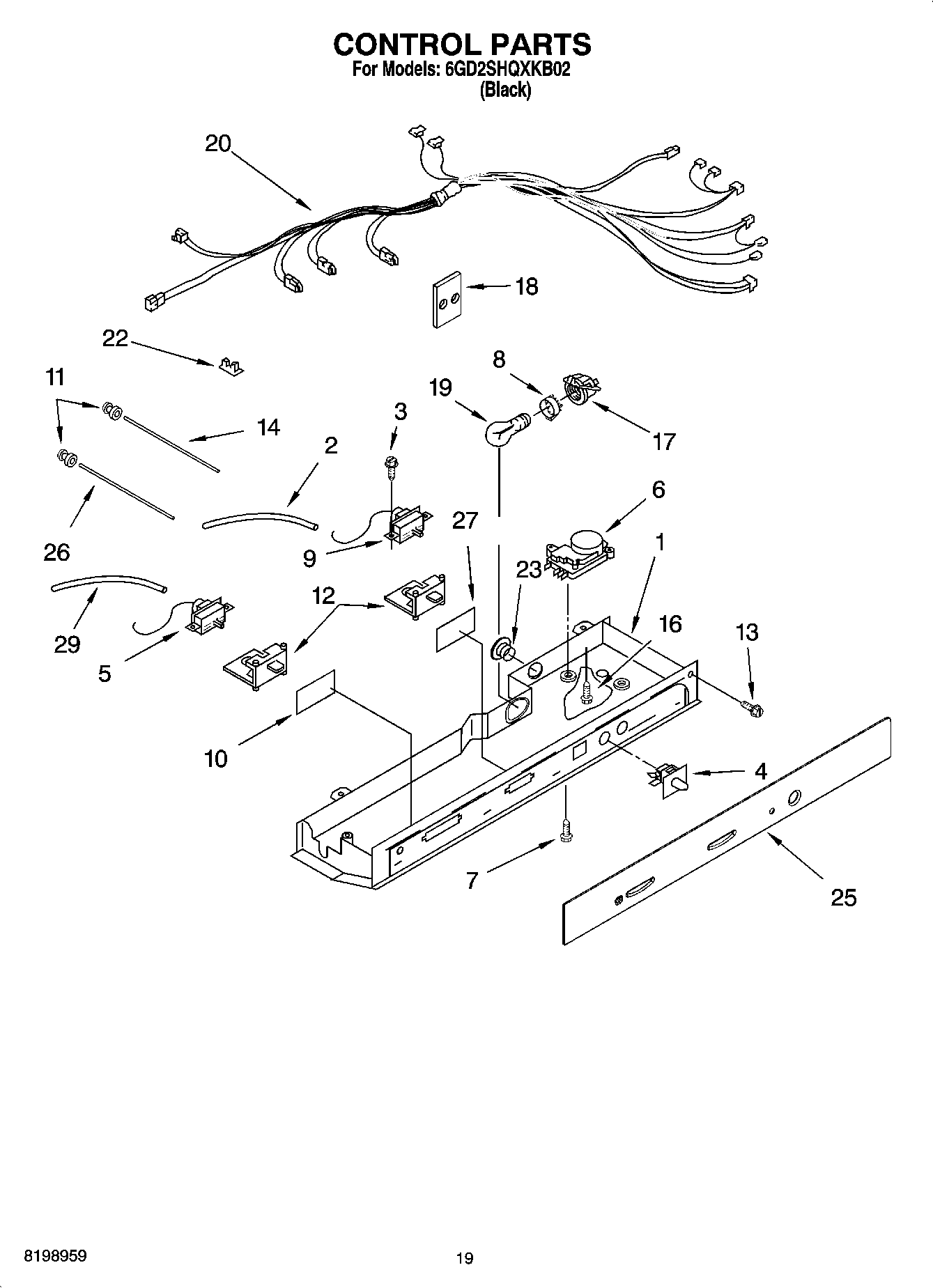

6GD2SHQXKB02 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL ARI16349A2
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
WPL ARI16348A1
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI16352A6
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
511873 Whirlpool Refrigerator Paint
WPL ARI16351A6
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
WPL ARI16350A4
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
WPW10312301 Whirlpool Refrigerator Ice Container
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5Thermostat (FC)
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8WP2175210 Whirlpool Refrigerator Shroud
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
22CLIP, WIRING
23940014 Whirlpool Refrigerator Primary Button Plug
25Escutcheon, Control Box
26Light Bar (FC)
27Window
