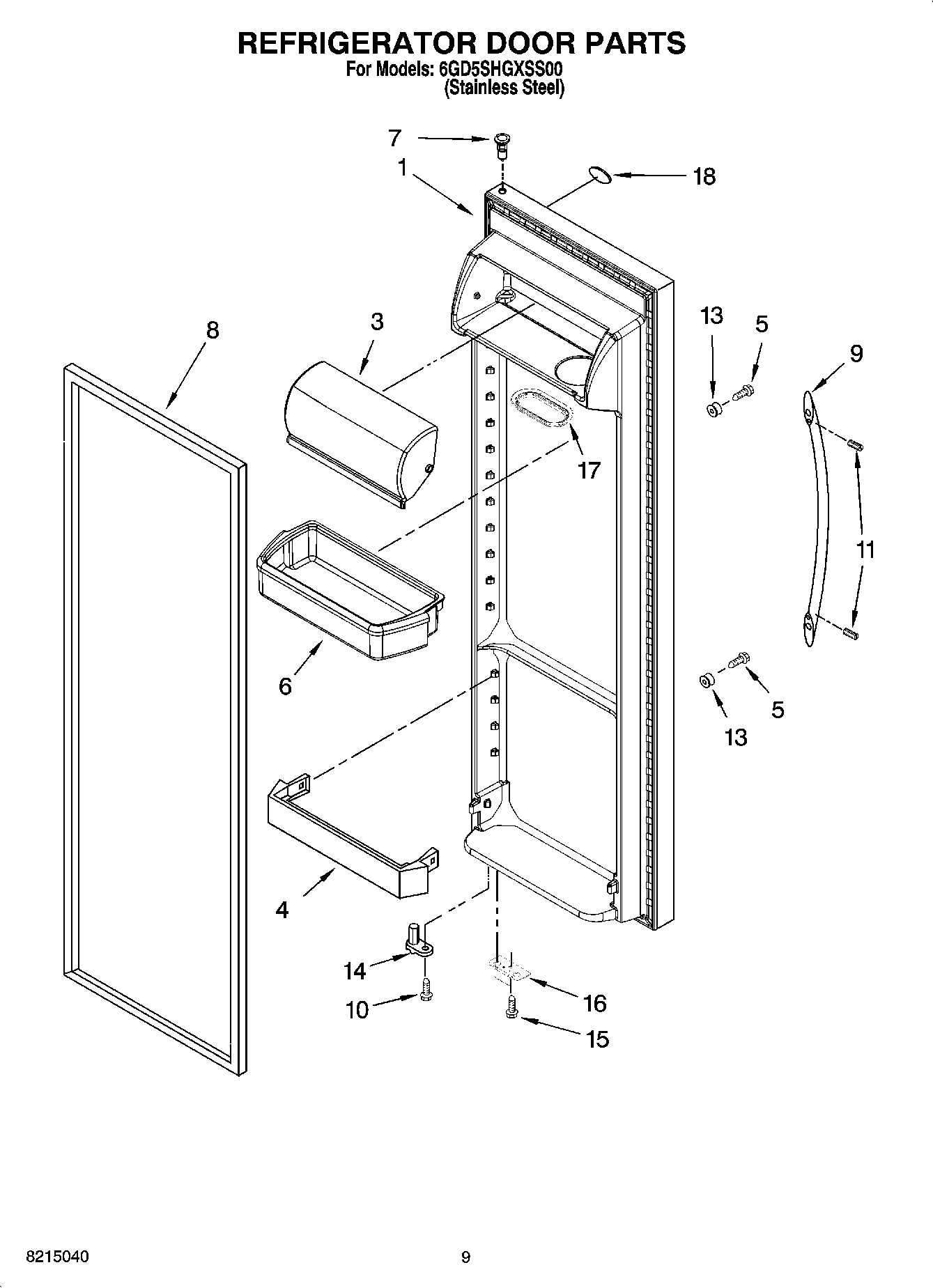

6GD5SHGXSS00 06 – REFRIGERATOR DOOR PARTS

6GD5SHGXSS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

6GD5SHGXSS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless Steel)
3WP2256101 Whirlpool Dairy Door
4WP2318736 Whirlpool Refrigerator Door Trim
5WP488163 Whirlpool Refrigerator Screw
6Door Bin (3)
7Thimble, Top (For Stainless Steel Models)
82159083 Whirlpool Gasket Door
9Handle (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11SCREW
13WPW10170540 Whirlpool Screw
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
17Dish, Butter
18WP2213265 Whirlpool Refrigerator Nameplate
