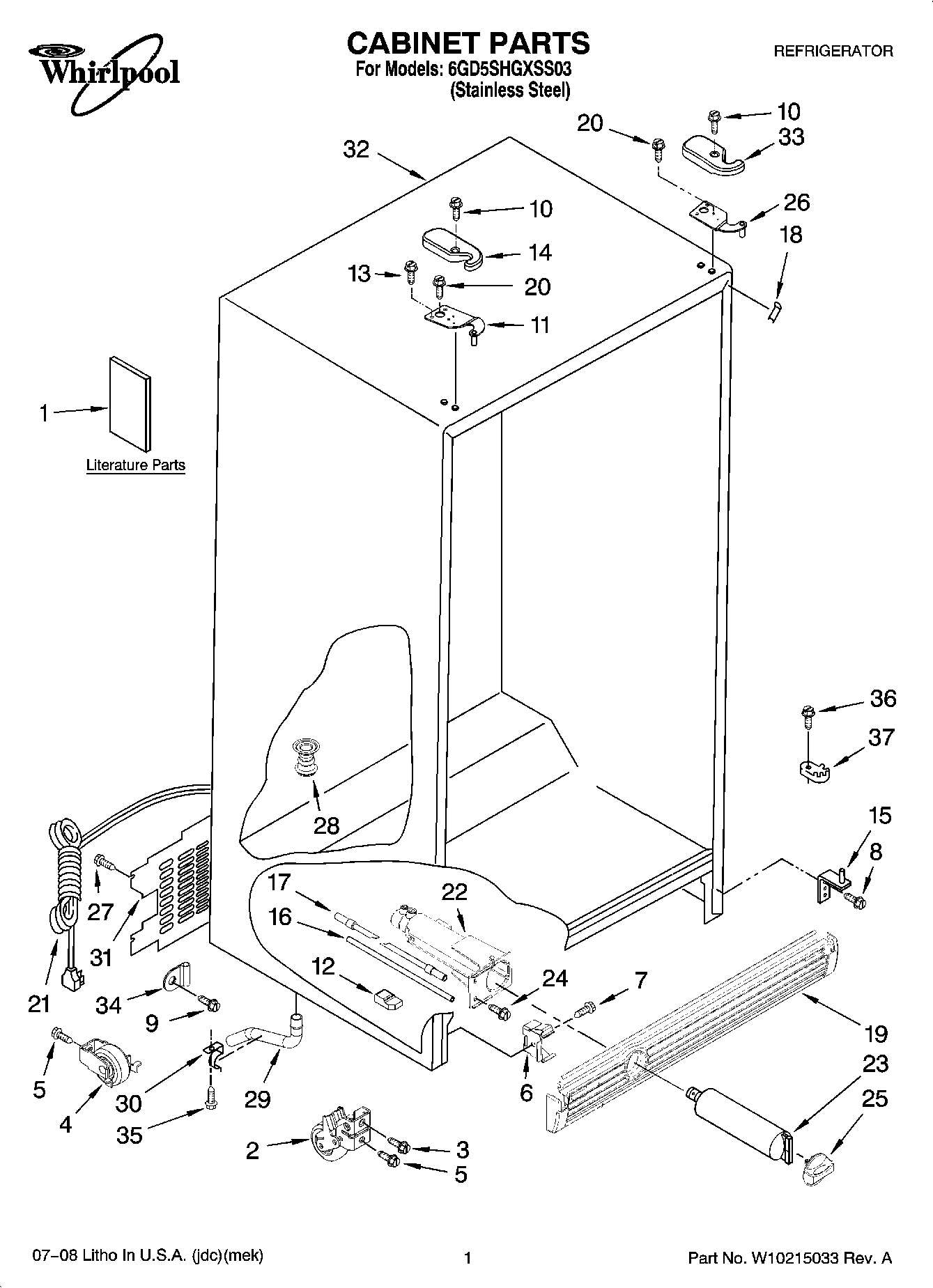

6GD5SHGXSS03 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	Use & Care Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP489497 Whirlpool Screw
9	W11693756 Whirlpool Screw Assembly
10	WP8281227 Whirlpool Screw
11	WP2203770 Whirlpool Refrigerator Door Hinge
12	Block, Housing Support
13	WP489128 Whirlpool Refrigerator Screw
14	WP2203407B Whirlpool Refrigerator Cover
15	W10138965 Whirlpool Refrigerator Door Hinge
16	WPW10350006 Whirlpool Refrigerator Water Tube
17	WP2304697 Whirlpool Refrigerator Water Tube
18	Filler, Wrapper (Black)
19	W10803964 Whirlpool Grille Assembly
21	W10199314 Whirlpool Refrigerator Power Cord
22	WP2186443 Whirlpool Water Filter Housing
23	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
24	WP489500 Whirlpool Refrigerator Screw
25	WP2186494B Whirlpool Refrigerator Filter Cap
26	WP2203771 Whirlpool Refrigerator Door Hinge
27	WP489464 Whirlpool Refrigerator Screw
28	W11566763 Whirlpool Fitting
29	WP1108438 Whirlpool Refrigerator Extension
30	WP1108439 Whirlpool Refrigerator Clip
31	Cover, Unit
32	Cabinet, (Not A Serviceable Part)
33	WP2203408B Whirlpool Refrigerator Cover
34	489348 Whirlpool Refrigerator Tube Clamp
36	WPW10329686 Whirlpool Door Cam Black
37	WP489483 Whirlpool Screw
