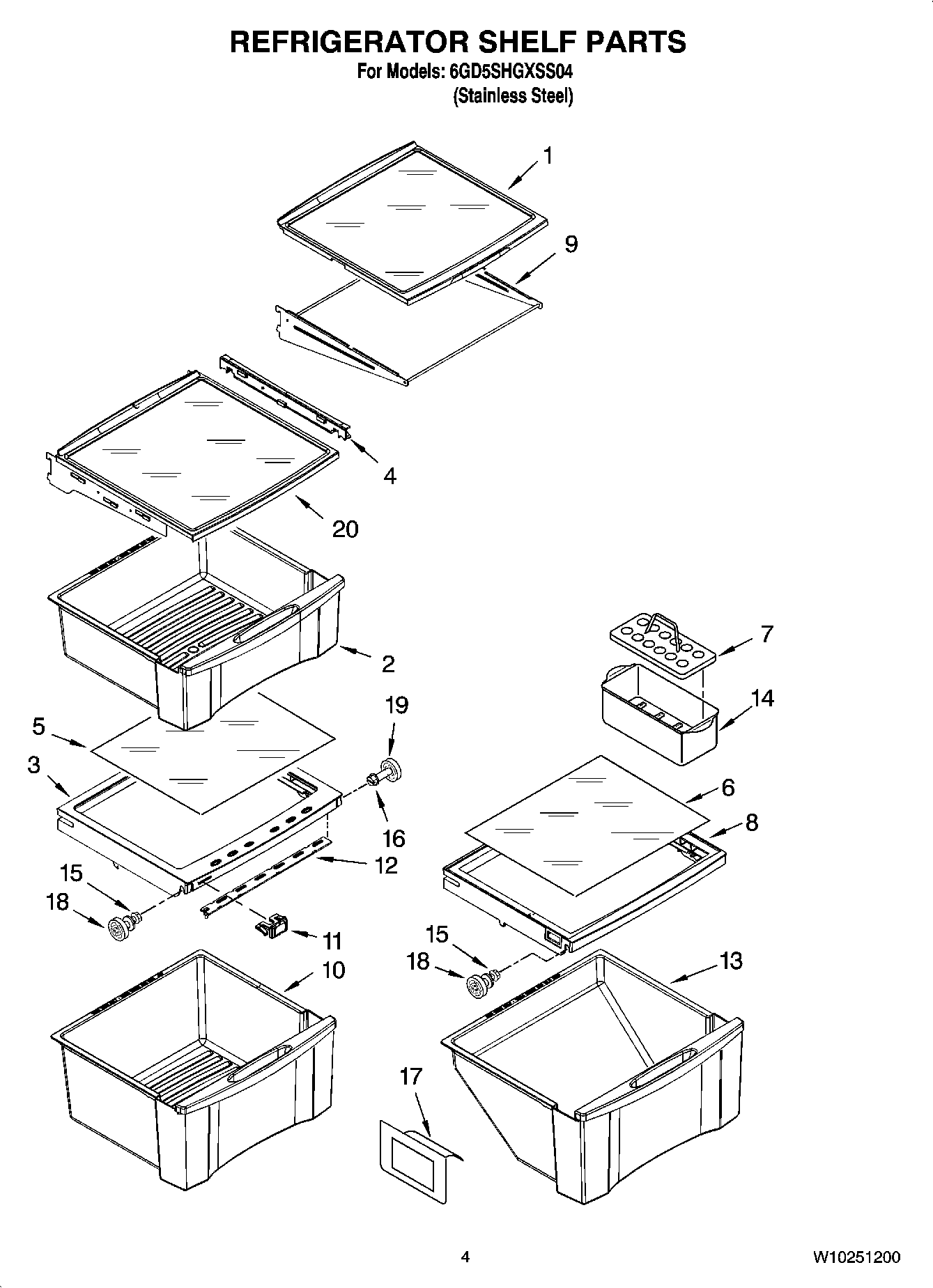

6GD5SHGXSS04 03 – REFRIGERATOR SHELF PARTS

6GD5SHGXSS04 03 – REFRIGERATOR SHELF PARTS

Written by

in

6GD5SHGXSS04 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Slide Out (2)
2Snack Bin Asm
3Cover, Crisper
4WP2223320 Whirlpool Slide Track Pan
5WP2223591 Whirlpool Refrigerator Glass Shelf
6Glass, Meat Cover
7WP2177817 Whirlpool Refrigerator Egg Container
8WP2223242 Whirlpool Refrigerator Cover
9Frame Assembly (2)
10WPW10233488 Whirlpool Refrigerator Crisper Pan
11Knob, Humidity Control
122223308 Whirlpool Refrigerator Slide
13Meat Pan Assembly
14W10136387A Whirlpool Refrigerator Egg Container
15WP3-24004-109 Whirlpool Refrigerator Screw
16WP3400806 Whirlpool Screw
172179350 Whirlpool Refrigerator Deflector
18W11223328 Whirlpool Refrigerator Shelf Stud
19WP2196483 Whirlpool Refrigerator Shelf Stud
20WP2223288 Whirlpool Refrigerator Cantilever Shelf
