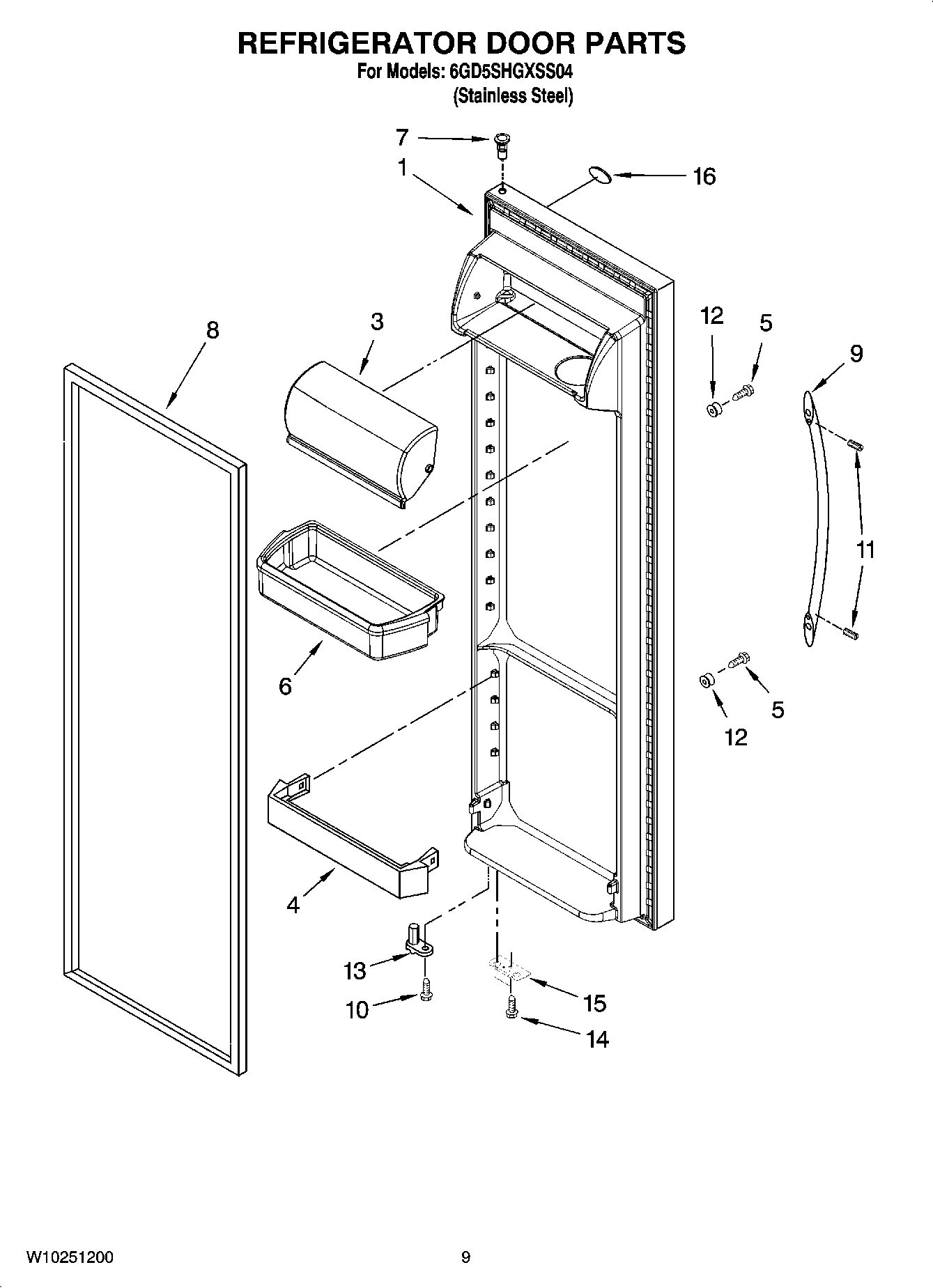

6GD5SHGXSS04 06 – REFRIGERATOR DOOR PARTS

6GD5SHGXSS04 06 – REFRIGERATOR DOOR PARTS

Written by

in

6GD5SHGXSS04 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.8) (STAINLESS STEEL)
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5W10141596 Whirlpool Screw Assembly
6Shelf Bin (3)
7WP2182181 Whirlpool Refrigerator Thimble
82159083 Whirlpool Gasket Door
9Handle, Door (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11SCREW
12WPW10170540 Whirlpool Screw
13WP2182179 Whirlpool Cam Closer
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16WP2213265 Whirlpool Refrigerator Nameplate
