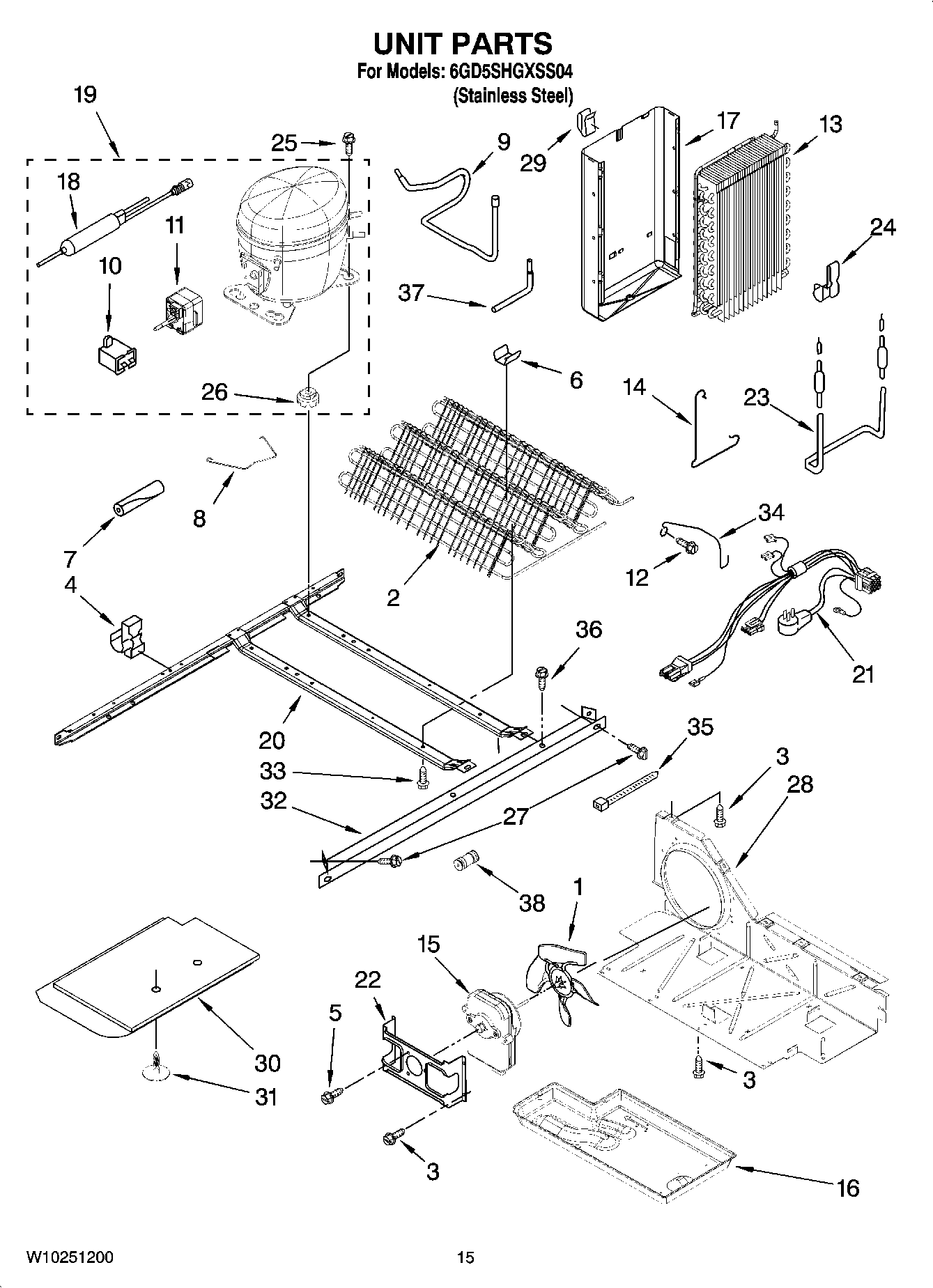

6GD5SHGXSS04 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 0.142 Kg (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	Clip, Wire & Tube
5	WP8533993 Whirlpool Refrigerator Screw
6	W10683556 Whirlpool Refrigerator Clip
7	SLEEVE
8	Strap, Bale
9	WP2205765 Whirlpool Refrigerator Tube
10	2321245 Whirlpool Refrigerator Capacitor
11	Start-Device, Combination (Start Relay and Overload)
12	WP489478 Whirlpool Refrigerator Screw
13	WP2188823 Whirlpool Refrigerator Evaporator
14	Clamp
15	WP2321271 Whirlpool Refrigerator Condenser Motor
16	WPW10614158 Whirlpool Refrigerator Evaporator Tray
17	Heat Shield
18	WPW10143759 Whirlpool Dryer Filter
19	WP8201733 Whirlpool Refrigerator Compressor
20	2304904 Whirlpool Frame Assembly
21	Unit, Harness
22	WP2181929 Whirlpool Refrigerator Bracket
23	WPW10123653 Whirlpool Refrigerator Heater
24	W11623163 Whirlpool Refrigerator Clip
26	876811 Whirlpool Grommet
27	489340 Whirlpool Refrigerator Screw
28	W10896764 Whirlpool Refrigerator Air Baffle
29	Clip, Heat Shield
30	Unit Cover, Bottom
31	489396 Whirlpool Refrigerator Clip
32	2305374 Whirlpool Refrigerator Unit Rail
33	W11544659 Whirlpool Refrigerator Screw
34	Guard, Fan
35	WPW10339879 Whirlpool Wire Tie
36	WP489427 Whirlpool Refrigerator Screw
37	W10858105 Whirlpool Refrigerator Tube
38	WPW10334458 Whirlpool Refrigerator Connector
