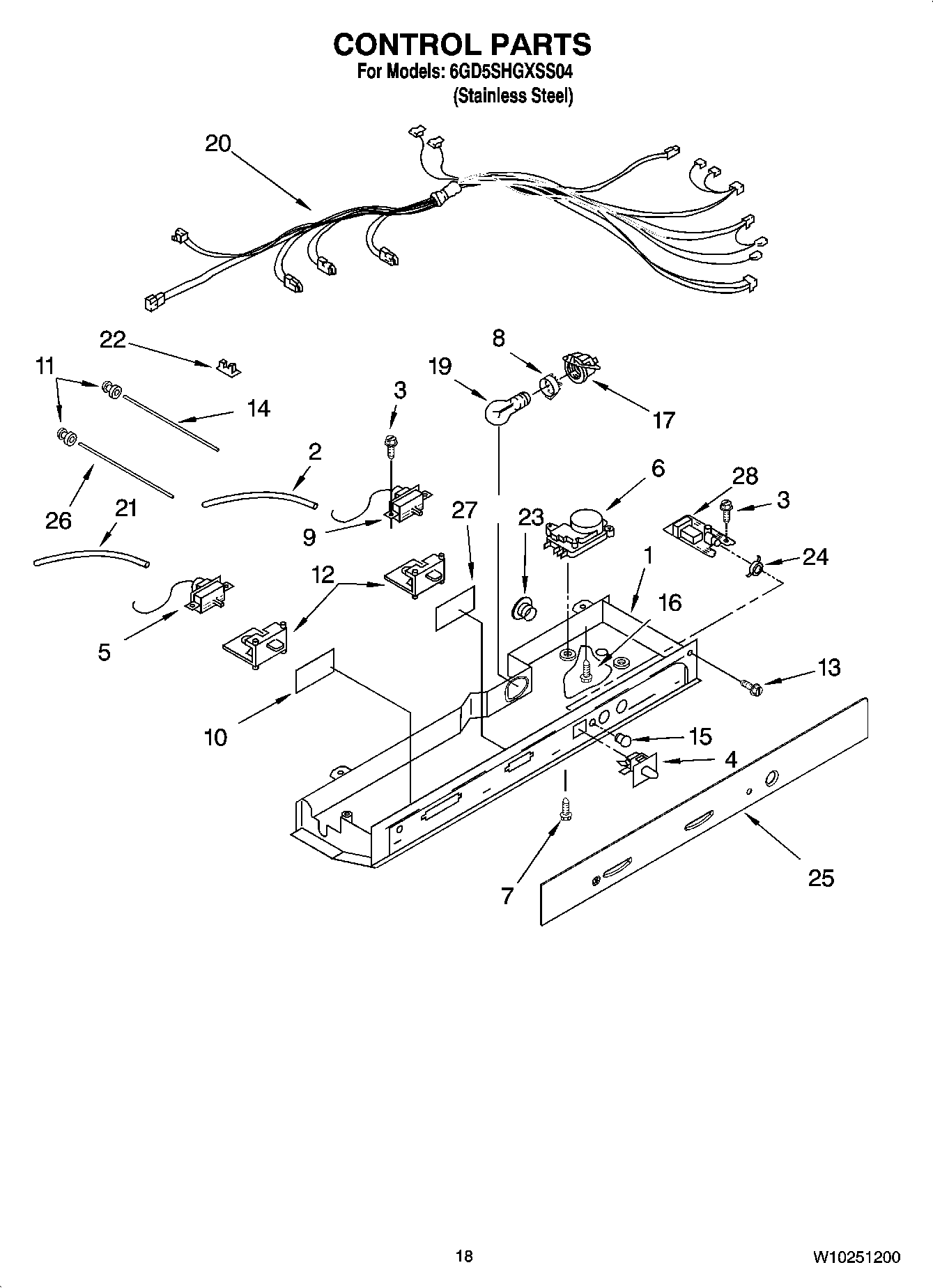

6GD5SHGXSS04 11 – CONTROL PARTS

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2321289 Whirlpool Refrigerator Thermostat
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	SHROUD-LGHT SOCKET
9	WP2321305 Whirlpool Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	COVER, LIGHT LENS
16	WP488488 Whirlpool Refrigerator Screw
17	W11447232 Whirlpool Refrigerator Socket
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
22	CLIP, WIRING
23	940014 Whirlpool Refrigerator Primary Button Plug
24	Retainer, Light Lens
25	Cover, Front Control
26	Light Bar (FC)
27	Window
28	P.C. Board Filter Indicator
