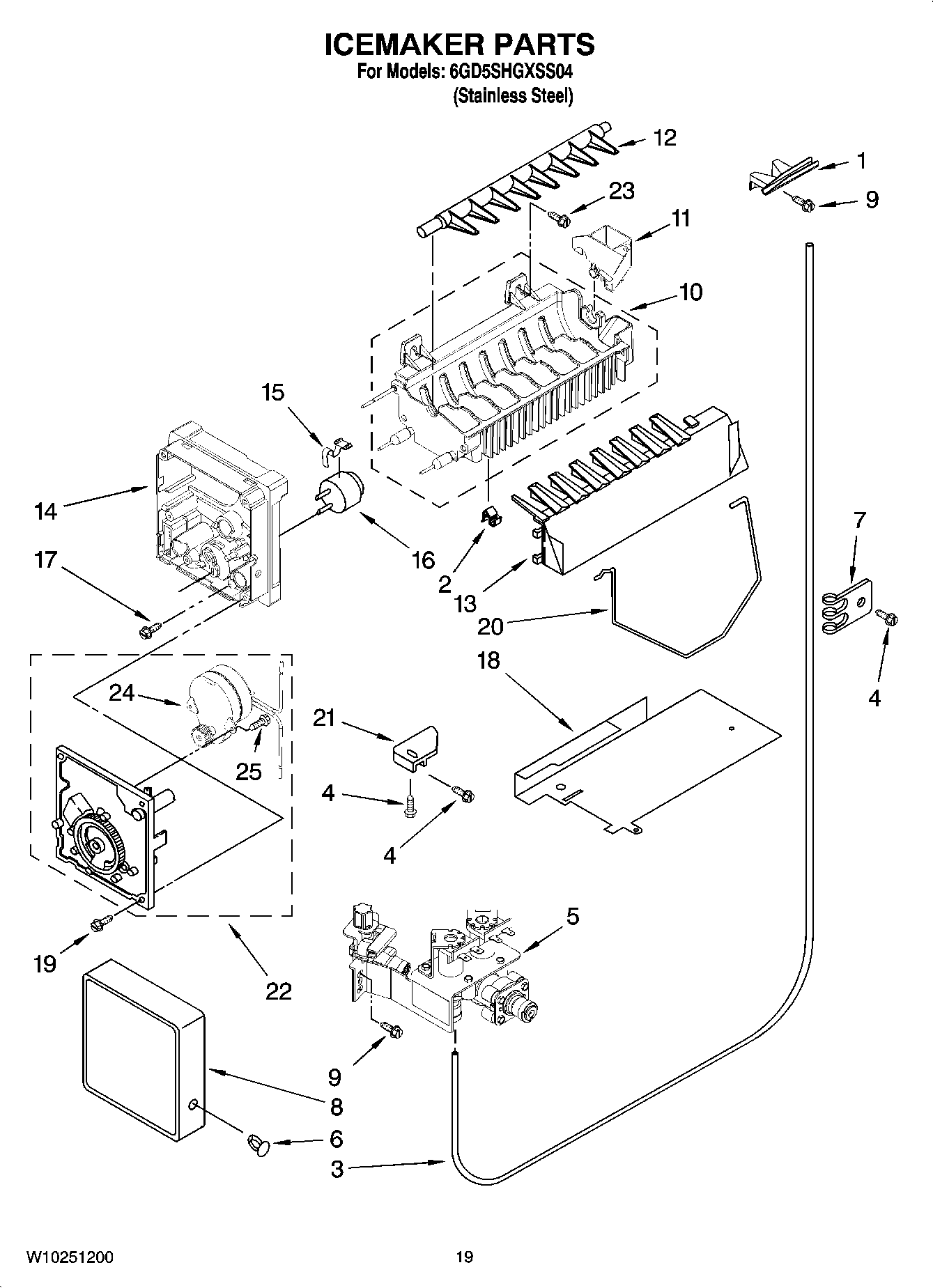

6GD5SHGXSS04 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

6GD5SHGXSS04 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

6GD5SHGXSS04 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	TORX SCREW WRENCH
	72032 Whirlpool Touch Up Paint Black
	833938 Whirlpool Refrigerator Terminal
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL 799833
	Miscellaneous
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	212643 Whirlpool Refrigerator Permagum Sealer
1	W11505385 Whirlpool Refrigerator Chute
2	WP628379 Whirlpool Refrigerator Clip
3	W10823511 Whirlpool Refrigerator Water Tube
4	WP489478 Whirlpool Refrigerator Screw
5	WPW10158157 Whirlpool Refrigerator Inlet Valve
6	WP489115 Whirlpool Refrigerator Rivet
7	WP488366 Whirlpool Refrigerator Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10122523 Whirlpool Refrigerator Ice Mold
11	W10122561 Whirlpool Refrigerator Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WP2182124 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17	W10001280 Whirlpool Refrigerator Screw
18	2256178 Whirlpool Shield Assembly
20	W11342242 Whirlpool Refrigerator Ice Level Arm
21	W11500948 Whirlpool Refrigerator Bracket
23	W10141596 Whirlpool Screw Assembly
24	W10190933 Whirlpool Refrigerator Motor Assembly
25	W10001240 Whirlpool Refrigerator Screw
100	Complete Icemaker Assembly
