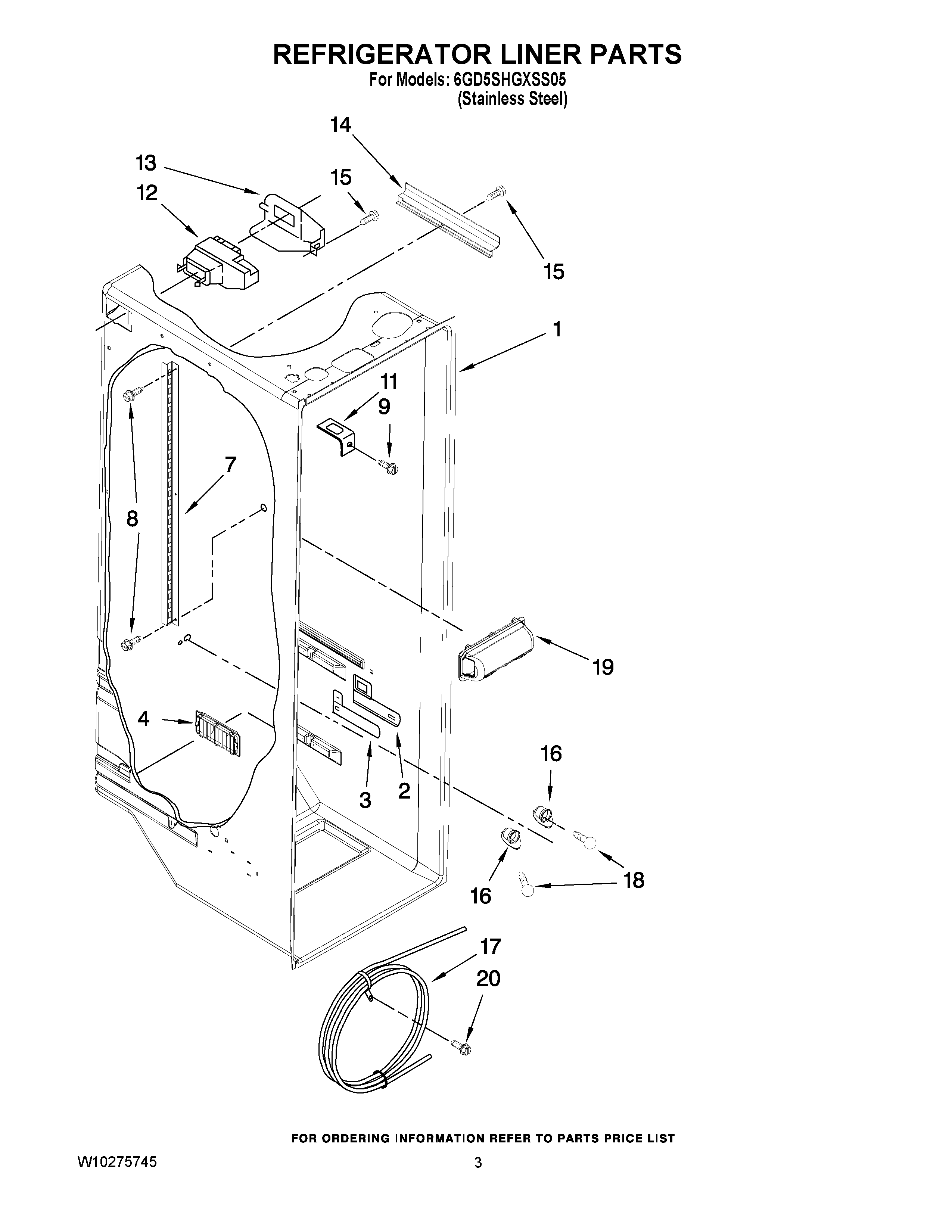

6GD5SHGXSS05 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
7	Shelf Ladder
8	W10853301 Whirlpool Refrigerator Screw
9	WP488488 Whirlpool Refrigerator Screw
11	WP2256085 Whirlpool Refrigerator Retainer
12	WPW10151378 Whirlpool Refrigerator Diffuser
13	WP2212240 Whirlpool Refrigerator Cover
14	2150331 Whirlpool Refrigerator Wire Cover
15	W10759522 Whirlpool Screw
16	W11447232 Whirlpool Refrigerator Socket
17	RESERVOIR
18	WP67002552 Whirlpool Refrigerator Light Bulb
19	W11239891 Whirlpool Refrigerator Light Lens
20	SCREW
