6GD5SHGXSS05 07 – FREEZER DOOR PARTS

6GD5SHGXSS05 07 – FREEZER DOOR PARTS

Written by

in

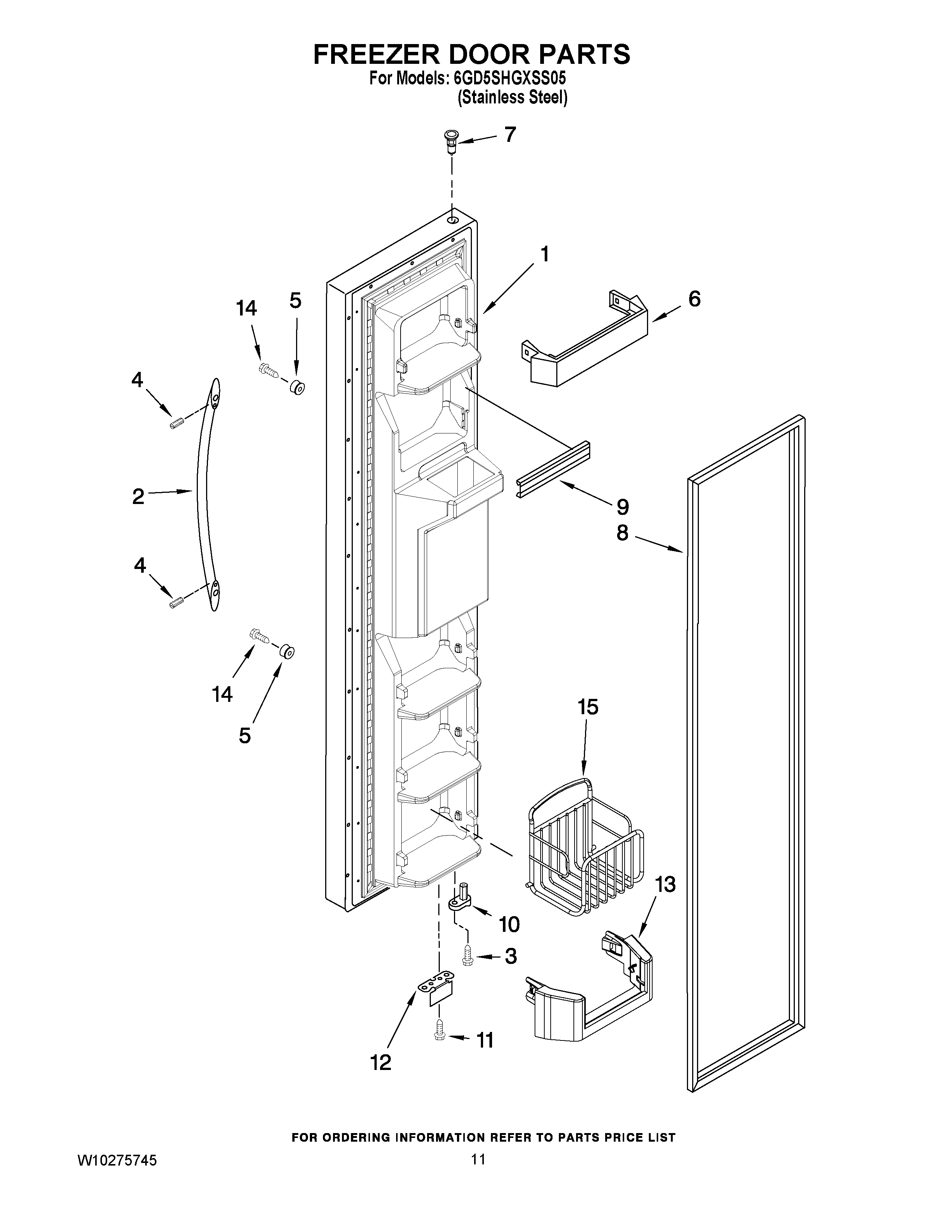

6GD5SHGXSS05 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
2Handle, Door (Stainless Steel)
3WP3400012 Whirlpool Refrigerator Screw
4SCREW
5WPW10170540 Whirlpool Screw
6WP2171157 Whirlpool Shelf Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP2182179 Whirlpool Cam Closer
11WPW10142233 Whirlpool Refrigerator Screw
12Bracket, Door Stop (Black)
13TRIVET, TILT-OUT
14W10141596 Whirlpool Screw Assembly
15Basket, Tilt Out
