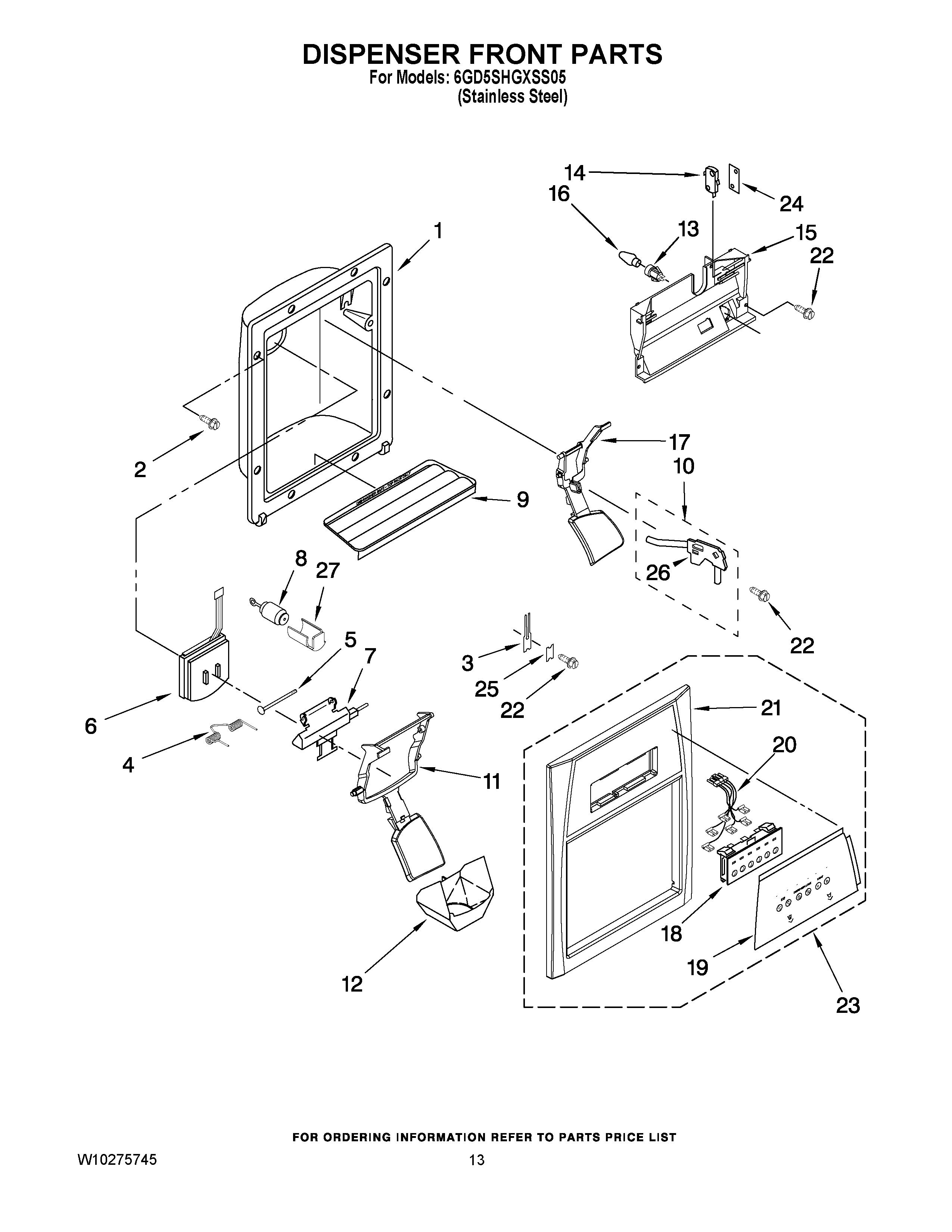

6GD5SHGXSS05 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	W10142289 Whirlpool Air Conditioner Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	WP2255431B Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Lamp Holder
14	WP2162361 Whirlpool Switch
15	Bracket, Control
16	Bulb, Light
17	WP2255432B Whirlpool Refrigerator Dispenser Arm
18	Switch Assembly (Not Available- Order No.23)
19	Overlay, Front Cover (Not Available- Order No.23)
20	Wire Assembly
21	Front, Cover Housing (Not Available, Order No.23)
22	SCREW
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
24	Spacer, Switch (2)
25	WP2195051 Whirlpool Refrigerator Clip
26	WP2304673 Whirlpool Refrigerator Bracket
27	Sleeve, Delay Mechanism
