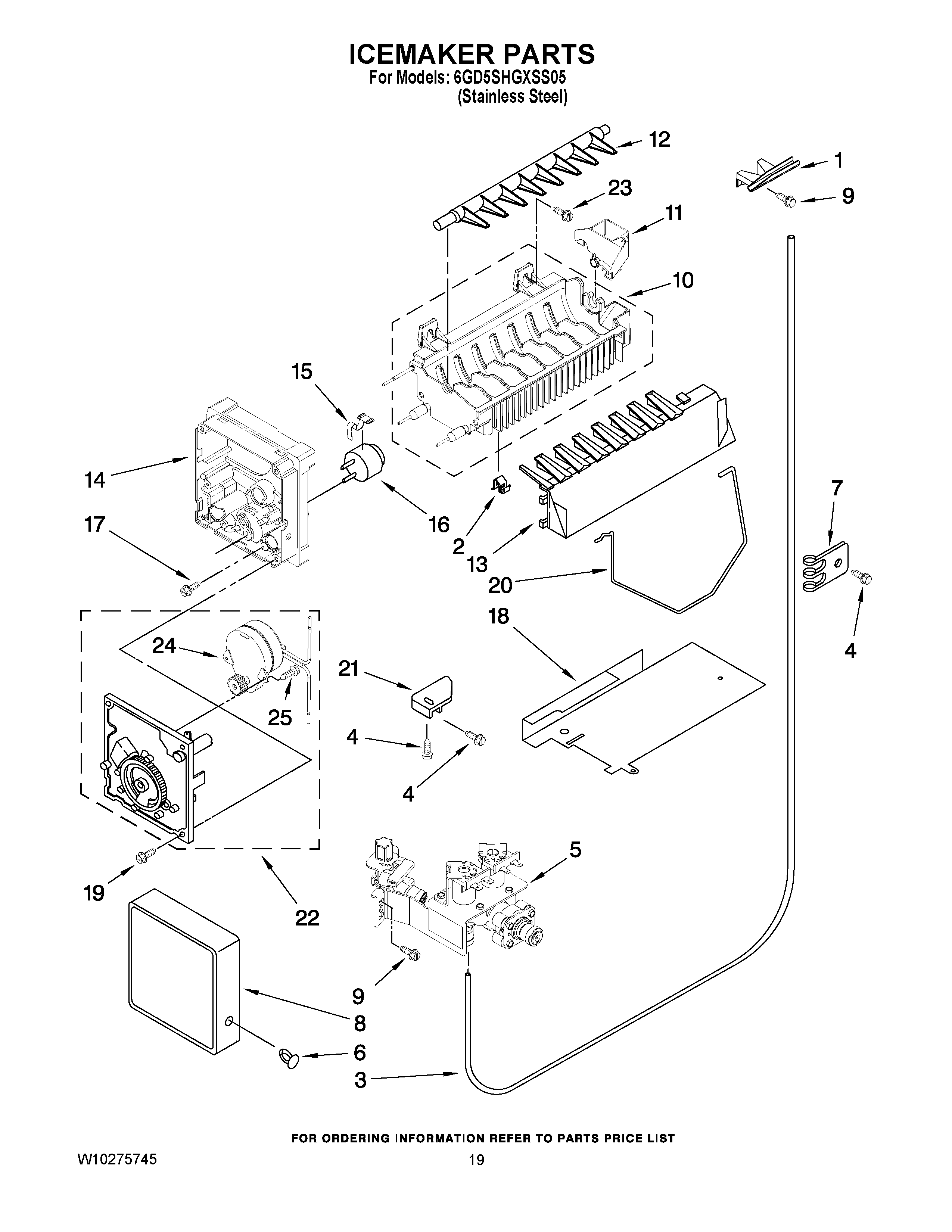

6GD5SHGXSS05 12 – ICEMAKER PARTS

Products

Position	Product
1	W11505385 Whirlpool Refrigerator Chute
2	WP628379 Whirlpool Refrigerator Clip
3	W10823511 Whirlpool Refrigerator Water Tube
4	WP489478 Whirlpool Refrigerator Screw
5	WPW10158157 Whirlpool Refrigerator Inlet Valve
6	WP489115 Whirlpool Refrigerator Rivet
7	WP488366 Whirlpool Refrigerator Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10122523 Whirlpool Refrigerator Ice Mold
11	W10122561 Whirlpool Refrigerator Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WP2182124 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17	W10001280 Whirlpool Refrigerator Screw
18	2256178 Whirlpool Shield Assembly
20	W11342242 Whirlpool Refrigerator Ice Level Arm
21	W11500948 Whirlpool Refrigerator Bracket
23	W10141596 Whirlpool Screw Assembly
24	W10190933 Whirlpool Refrigerator Motor Assembly
25	W10001240 Whirlpool Refrigerator Screw
100	Complete Icemaker Assembly
