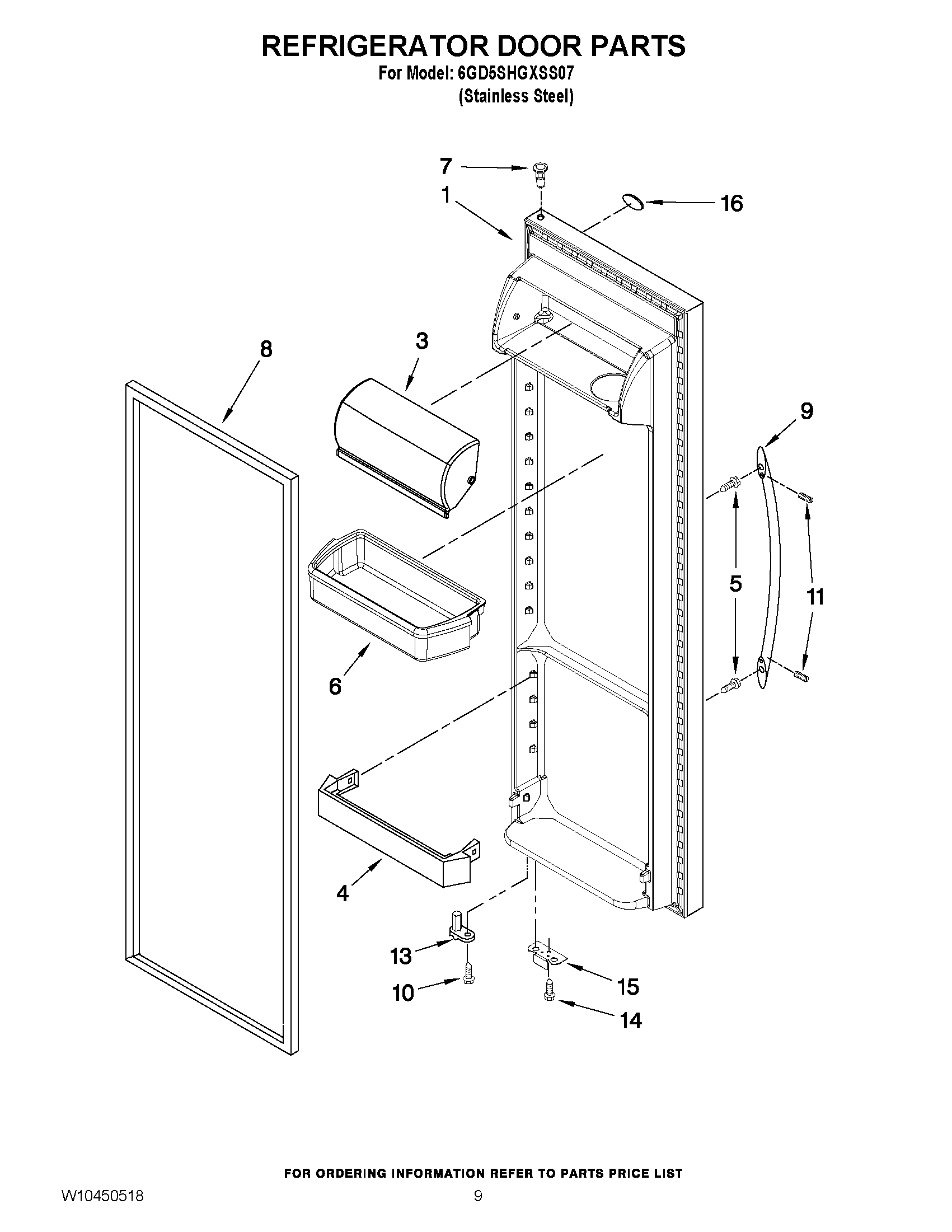

6GD5SHGXSS07 05 – REFRIGERATOR DOOR PARTS

6GD5SHGXSS07 05 – REFRIGERATOR DOOR PARTS

Written by

in

6GD5SHGXSS07 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.8) (STAINLESS STEEL)
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WPW10170540 Whirlpool Screw
6Door Bin (3)
7WP2182181 Whirlpool Refrigerator Thimble
82159083 Whirlpool Gasket Door
9Handle, Door (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11SCREW
13WP2182179 Whirlpool Cam Closer
14WPW10142233 Whirlpool Refrigerator Screw
15BRACKET, DOOR STOP (BLACK)
16WP2213265 Whirlpool Refrigerator Nameplate
