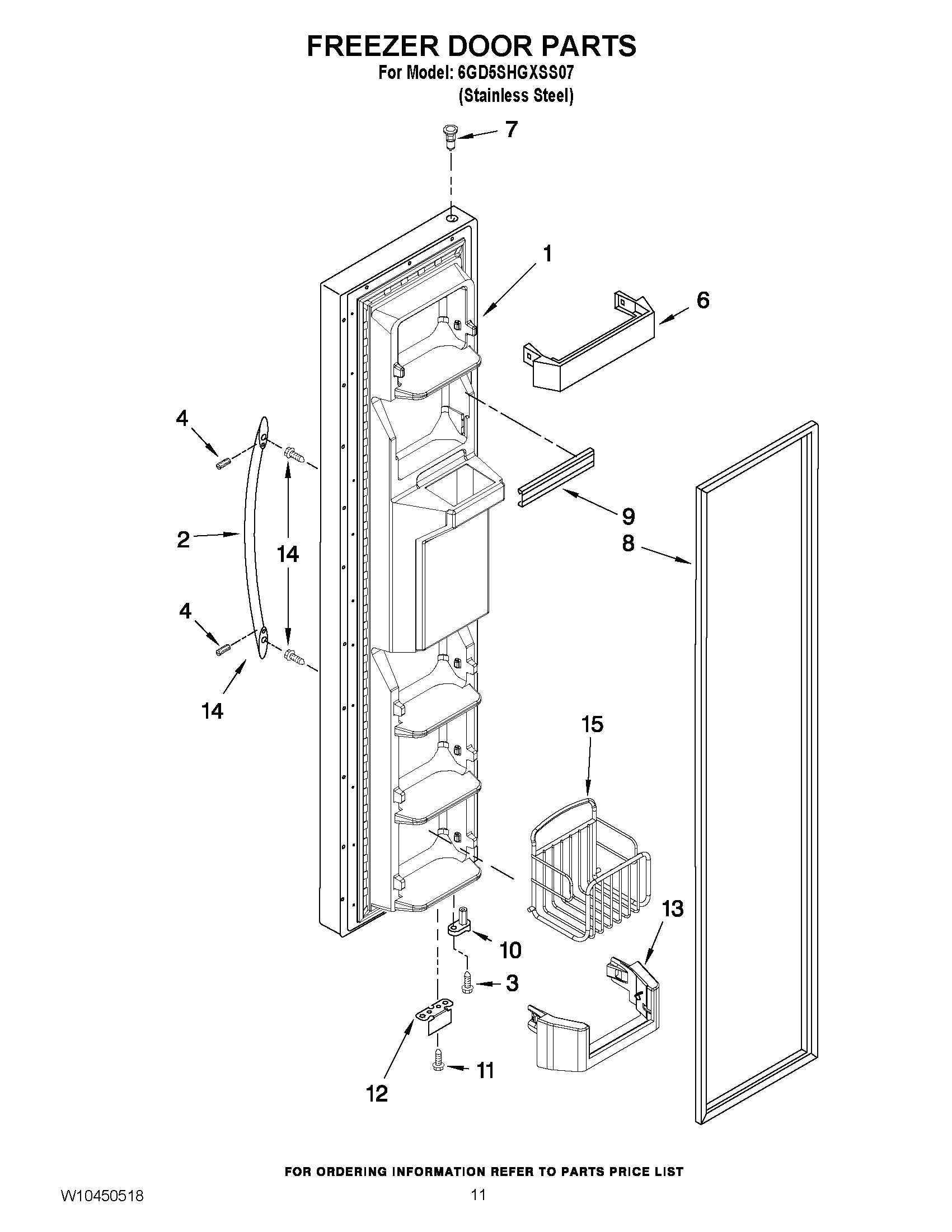

6GD5SHGXSS07 06 – FREEZER DOOR PARTS

6GD5SHGXSS07 06 – FREEZER DOOR PARTS

Written by

in

6GD5SHGXSS07 06 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
2Handle, Door (Stainless Steel)
3WP3400012 Whirlpool Refrigerator Screw
4SCREW
6WP2171157 Whirlpool Shelf Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP2182179 Whirlpool Cam Closer
11WPW10142233 Whirlpool Refrigerator Screw
12BRACKET, DOOR STOP
13TRIVET, TILT-OUT
14WPW10170540 Whirlpool Screw
15Basket, Tilt Out
