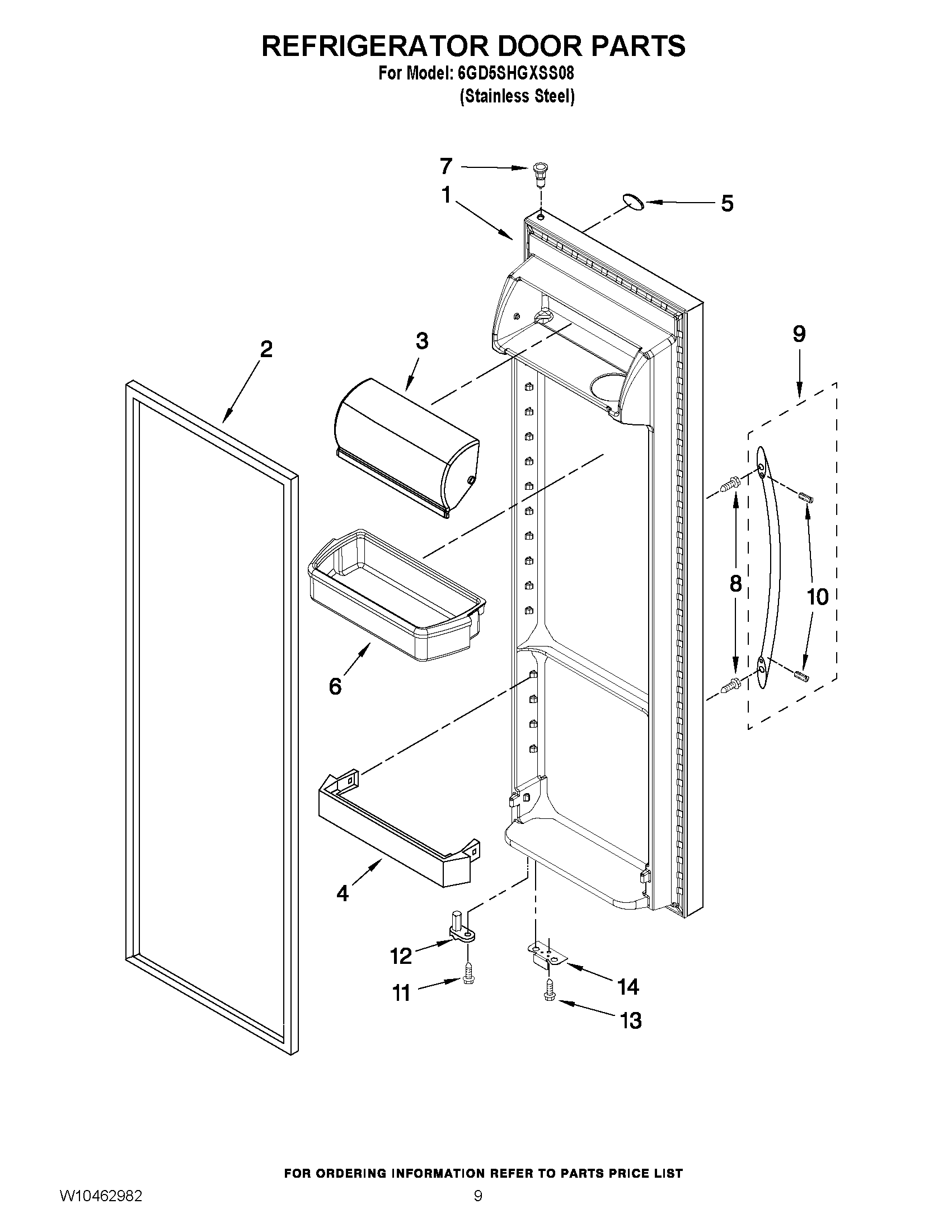

6GD5SHGXSS08 06 – REFRIGERATOR DOOR PARTS

6GD5SHGXSS08 06 – REFRIGERATOR DOOR PARTS

Written by

in

6GD5SHGXSS08 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.8) (STAINLESS STEEL)
22159083 Whirlpool Gasket Door
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP2213265 Whirlpool Refrigerator Nameplate
6Door Bin (3)
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9Handle, Door (Stainless Steel)
10SCREW
11WP3400012 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WPW10142233 Whirlpool Refrigerator Screw
14BRACKET, DOOR STOP (BLACK)
