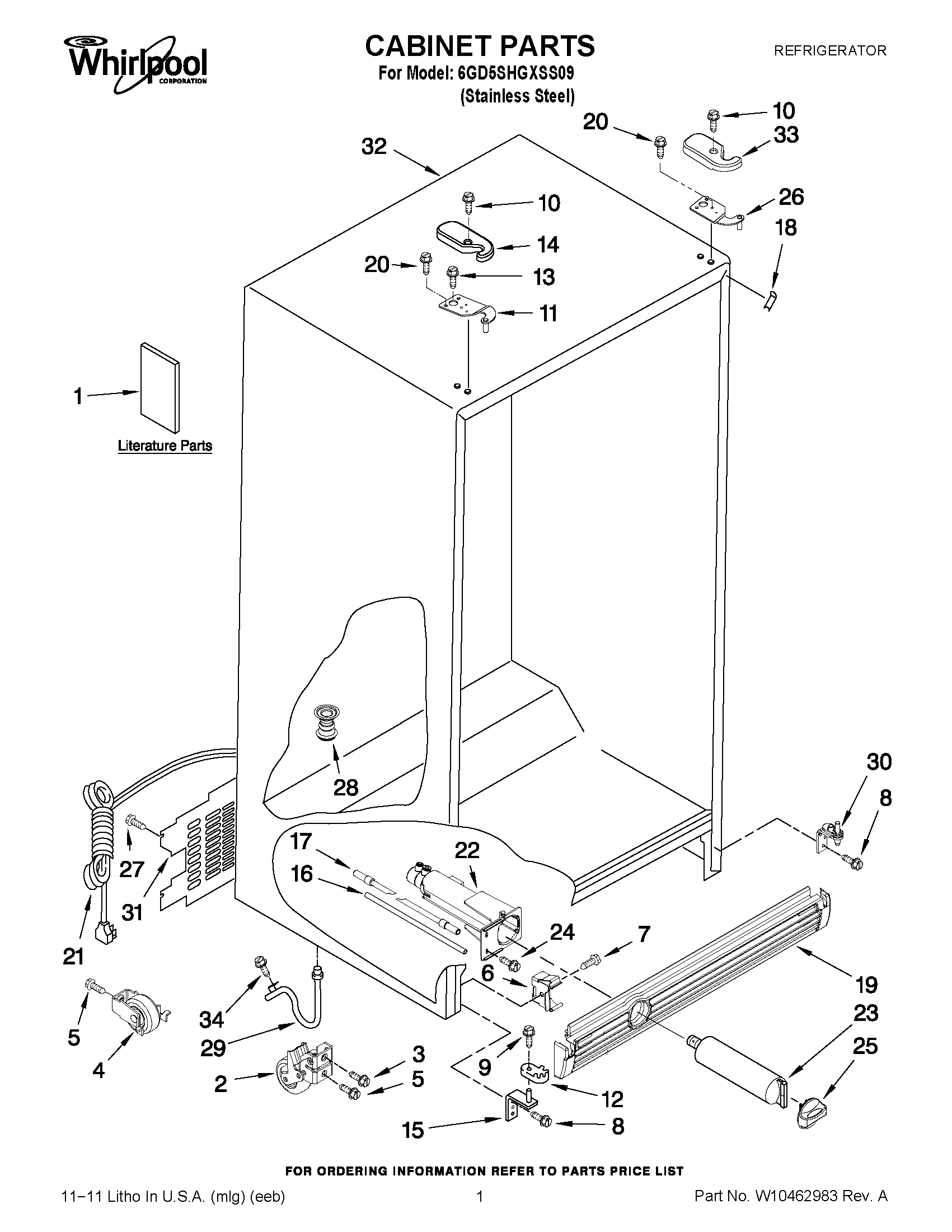

6GD5SHGXSS09 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	USE & CARE GUIDE
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
9	WP489483 Whirlpool Screw
10	WP8281227 Whirlpool Screw
11	HINGE, TOP (FC)
12	WPW10329686 Whirlpool Door Cam Black
13	WP489128 Whirlpool Refrigerator Screw
14	WP2203407B Whirlpool Refrigerator Cover
15	W10138965 Whirlpool Refrigerator Door Hinge
16	WPW10350006 Whirlpool Refrigerator Water Tube
17	WP2304697 Whirlpool Refrigerator Water Tube
18	Filler, Wrapper (Black)
19	W10803964 Whirlpool Grille Assembly
20	WP489497 Whirlpool Screw
21	W10199314 Whirlpool Refrigerator Power Cord
22	WP2186443 Whirlpool Water Filter Housing
23	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
24	WP489500 Whirlpool Refrigerator Screw
25	WP2186494B Whirlpool Refrigerator Filter Cap
26	W10242649 Whirlpool Refrigerator Door Hinge
27	SCREW
28	W11566763 Whirlpool Fitting
29	W11512417 Whirlpool Drain Connector
30	ADJUSTABLE HINGE CAM ASSY
31	Cover, Unit
32	CABINET (NOT A SERVICEABLE PART)
33	WP2203408B Whirlpool Refrigerator Cover
34	WP489464 Whirlpool Refrigerator Screw
