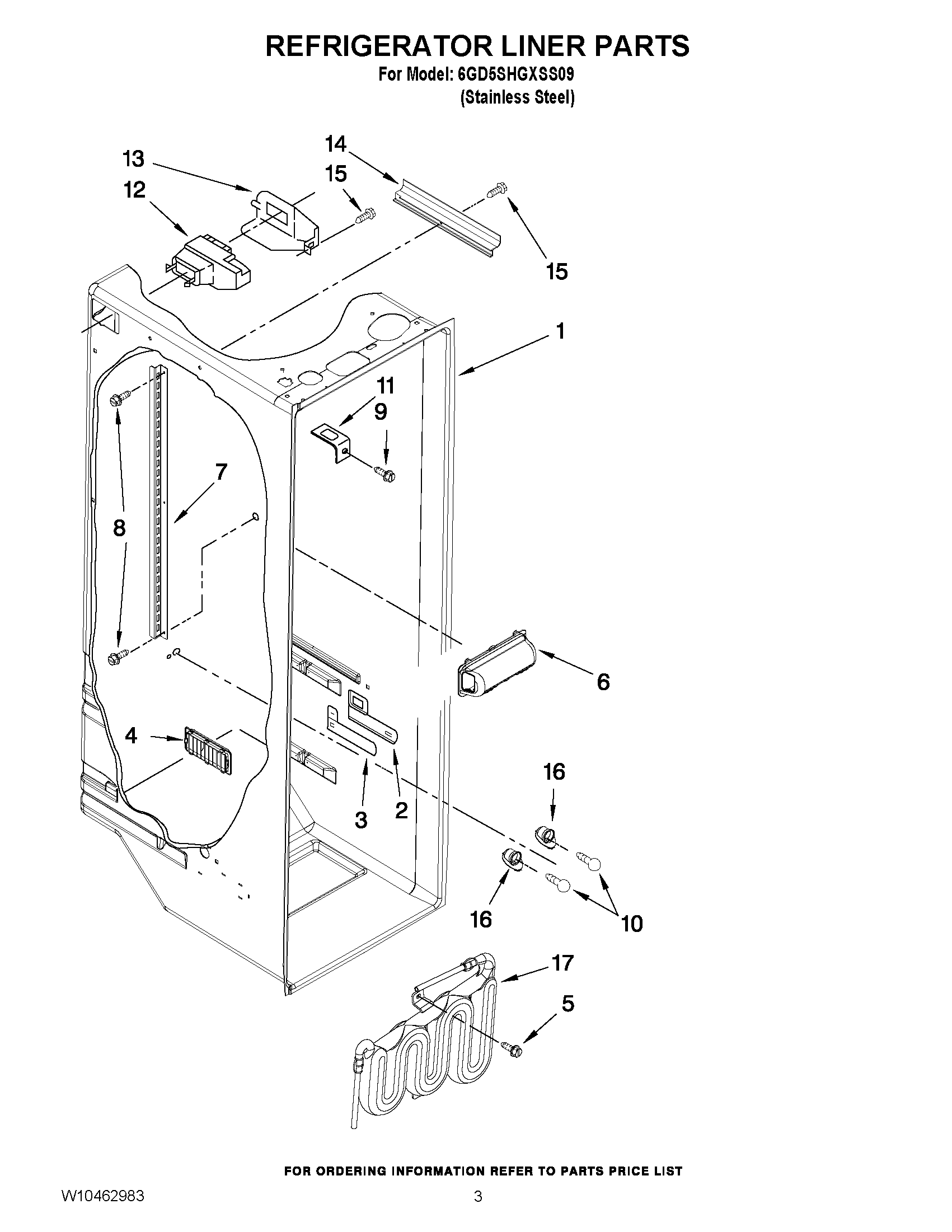

6GD5SHGXSS09 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W10141518 Whirlpool Refrigerator Screw
6	W11239891 Whirlpool Refrigerator Light Lens
7	Shelf Ladder
8	WP489478 Whirlpool Refrigerator Screw
9	WP488488 Whirlpool Refrigerator Screw
10	WP67002552 Whirlpool Refrigerator Light Bulb
11	WP2256085 Whirlpool Refrigerator Retainer
12	WPW10151378 Whirlpool Refrigerator Diffuser
13	WP2212240 Whirlpool Refrigerator Cover
14	2150331 Whirlpool Refrigerator Wire Cover
15	W10759522 Whirlpool Screw
16	W11447232 Whirlpool Refrigerator Socket
17	RESERVOIR
