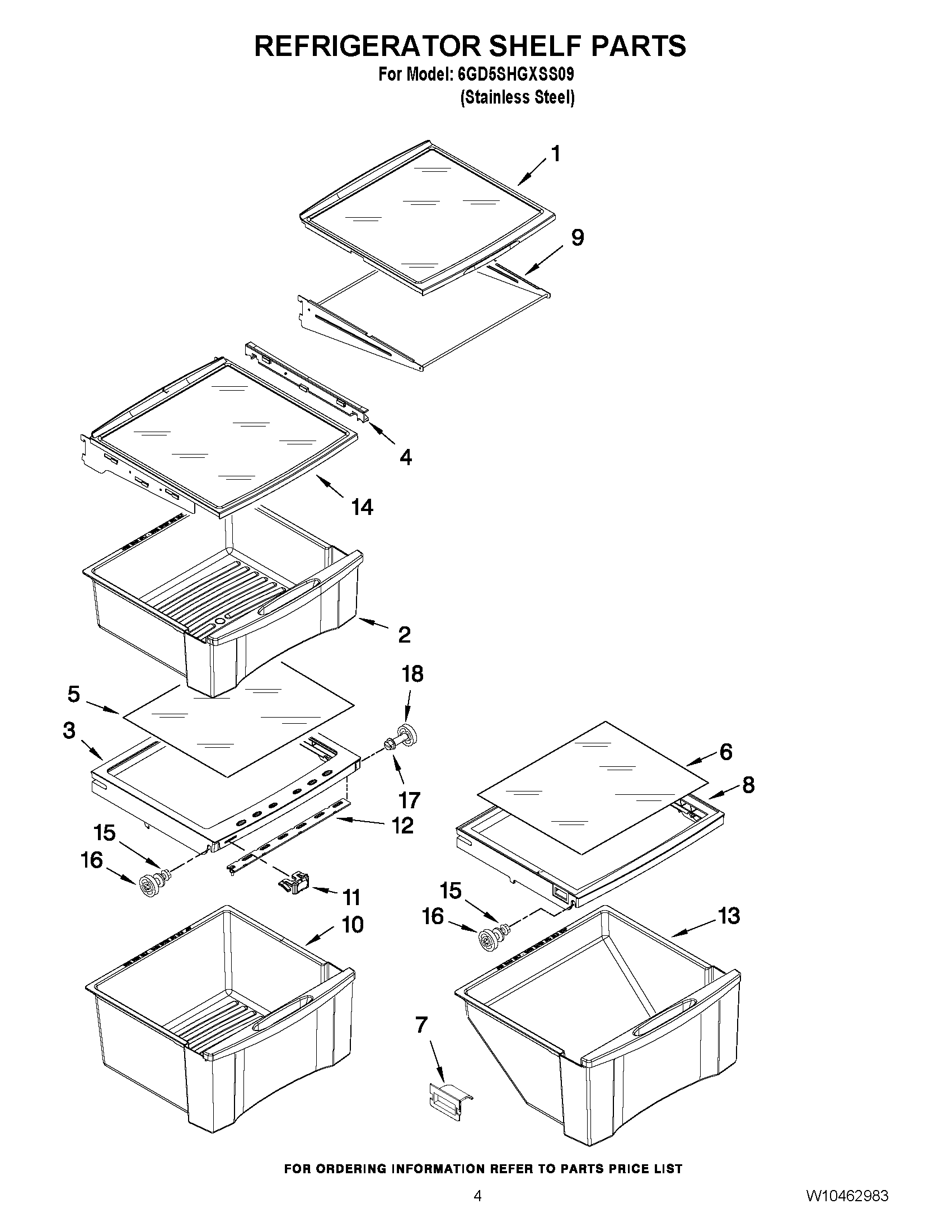

6GD5SHGXSS09 03 – REFRIGERATOR SHELF PARTS

6GD5SHGXSS09 03 – REFRIGERATOR SHELF PARTS

Written by

in

6GD5SHGXSS09 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Slide Out (2)
2SNACK BIN ASM
3Cover, Crisper
4WP2223320 Whirlpool Slide Track Pan
5WP2223591 Whirlpool Refrigerator Glass Shelf
6Glass, Meat Cover
72179350 Whirlpool Refrigerator Deflector
8WP2223242 Whirlpool Refrigerator Cover
9Frame Assembly (2)
10WPW10233488 Whirlpool Refrigerator Crisper Pan
11Knob, Humidity Control
122223308 Whirlpool Refrigerator Slide
13MEAT PAN
14WP2223288 Whirlpool Refrigerator Cantilever Shelf
15WP3-24004-109 Whirlpool Refrigerator Screw
16W11223328 Whirlpool Refrigerator Shelf Stud
17WPW10191952 Whirlpool Refrigerator Screw
18W11527119 Whirlpool Refrigerator Shelf Stud
