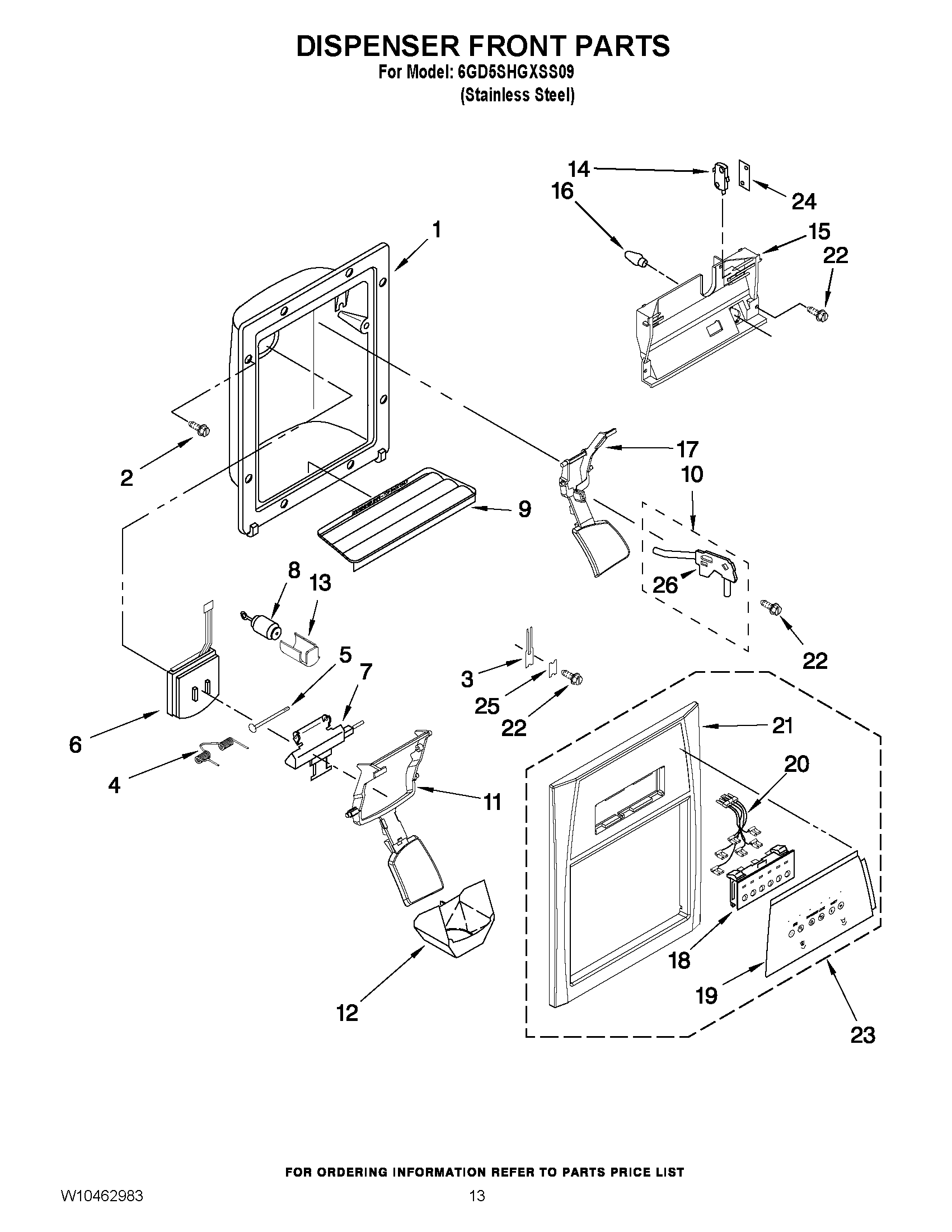

6GD5SHGXSS09 08 – DISPENSER FRONT PARTS

6GD5SHGXSS09 08 – DISPENSER FRONT PARTS

Written by

in

6GD5SHGXSS09 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670B Whirlpool Dispenser Tray
108201537 Whirlpool Water Tubing Assembly
11WP2255431B Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13Sleeve, Delay Mechanism
14WP2162361 Whirlpool Switch
15Bracket, Control
16Bulb, Light
17WP2255432B Whirlpool Refrigerator Dispenser Arm
21CABINET (NOT A SERVICEABLE PART)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
24Spacer, Switch (2)
25WP2195051 Whirlpool Refrigerator Clip
26WP2304673 Whirlpool Refrigerator Bracket
