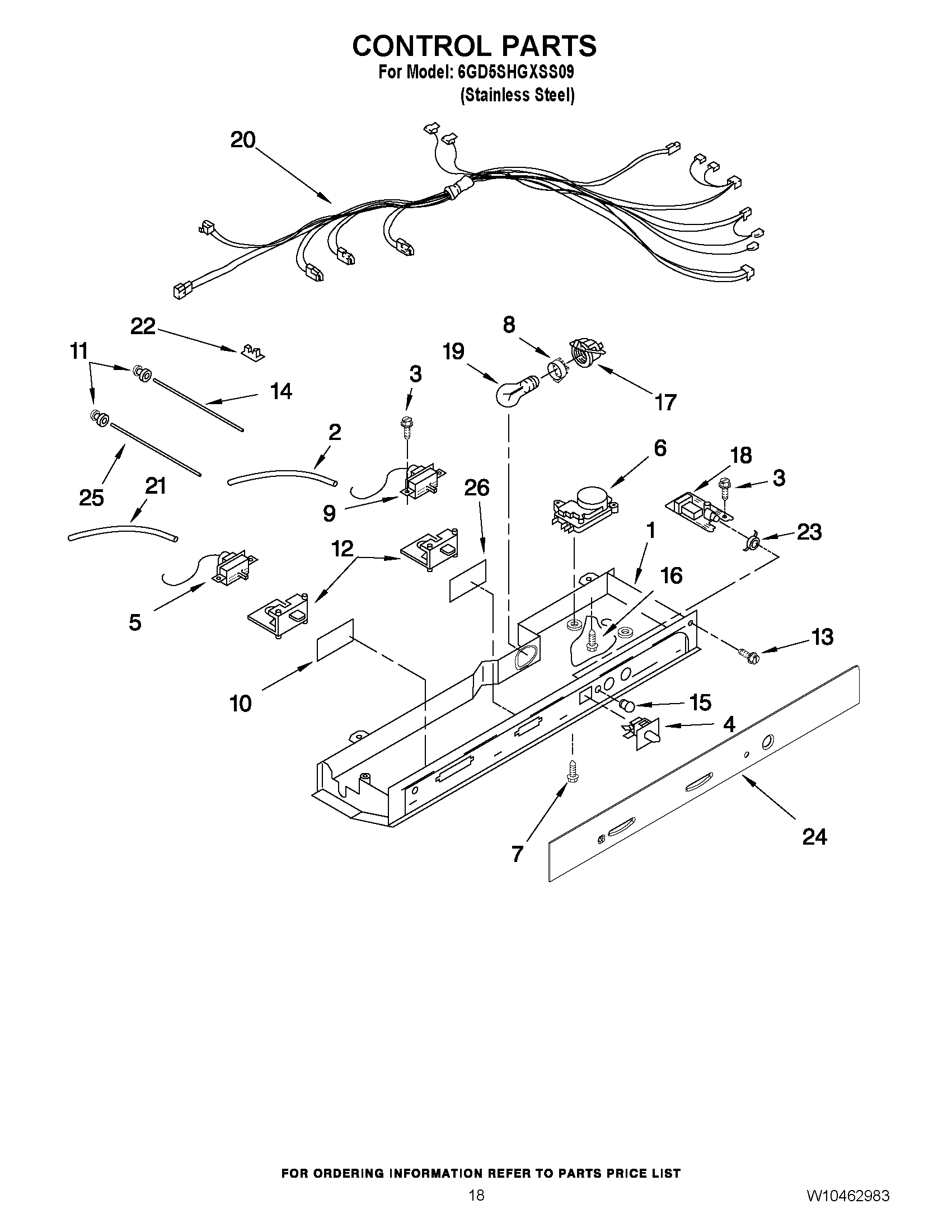

6GD5SHGXSS09 11 – CONTROL PARTS

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2321289 Whirlpool Refrigerator Thermostat
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8SHROUD-LGHT SOCKET
9WP2321305 Whirlpool Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13SCREW
14Fiber Optic
15COVER, LIGHT LENS
16WP488488 Whirlpool Refrigerator Screw
17W11447232 Whirlpool Refrigerator Socket
18P.C. Board Filter Indicator
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
22CLIP, WIRING
23Retainer, Light Lens
24Cover, Front Control
25Light Bar (FC)
26Window
