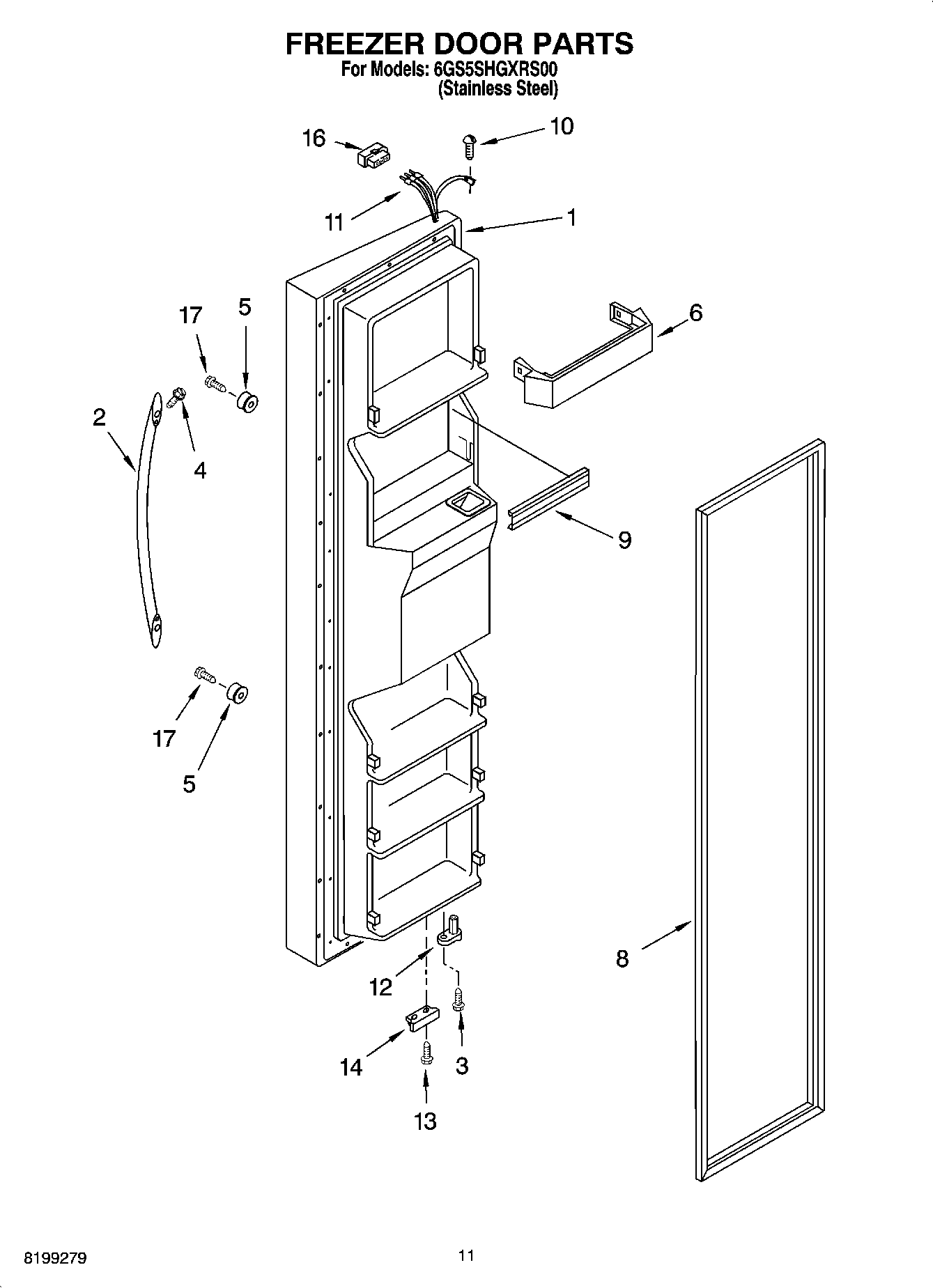

6GS5SHGXRS00 07 – FREEZER DOOR PARTS

6GS5SHGXRS00 07 – FREEZER DOOR PARTS

Written by

in

6GS5SHGXRS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2Handle, Door (Stainless Steel)
3WP3400012 Whirlpool Refrigerator Screw
4Screw
5WPW10170540 Whirlpool Screw
6WP2171157 Whirlpool Shelf Trim
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
16WP2154473 Whirlpool Refrigerator Connector
17WP488163 Whirlpool Refrigerator Screw
