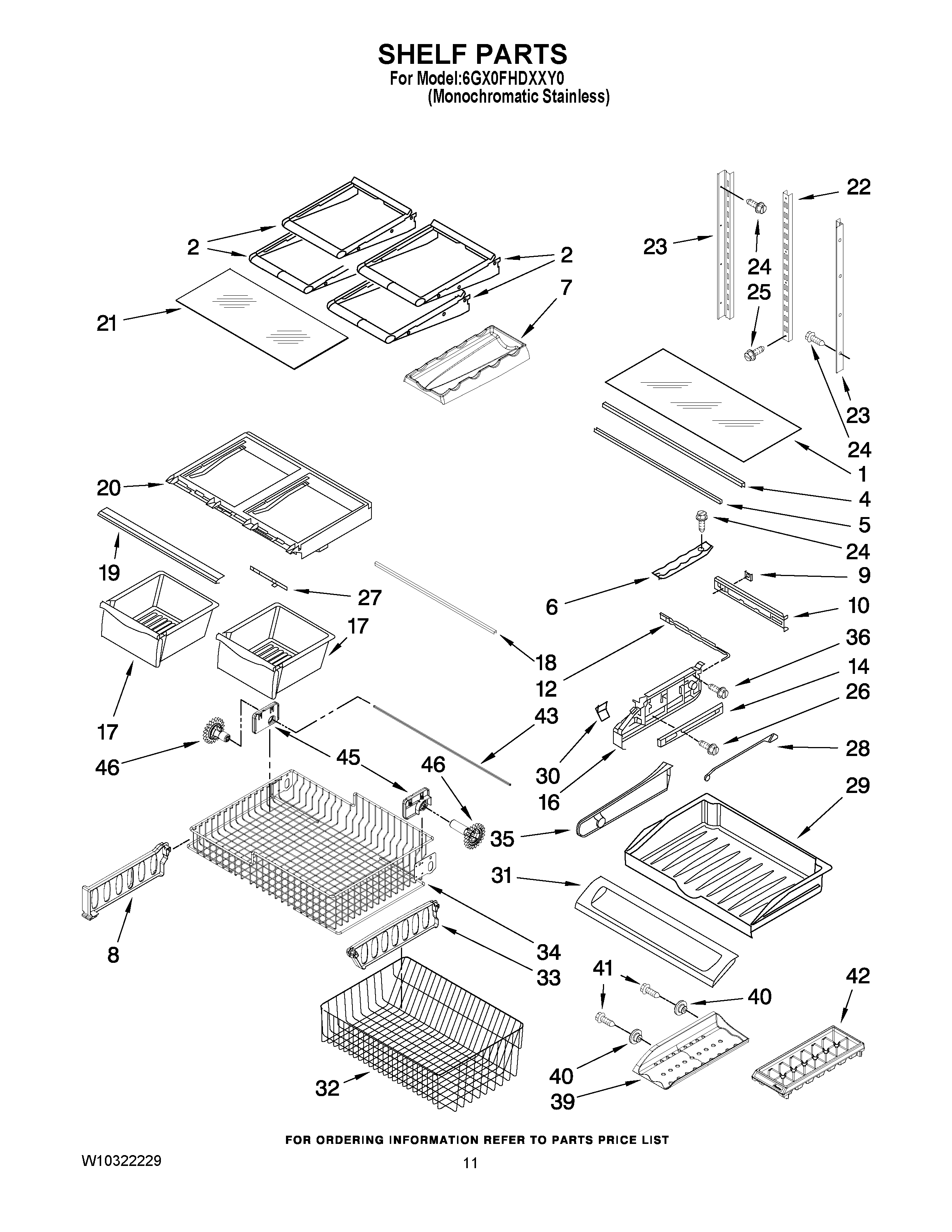

6GX0FHDXXY0 06 – SHELF PARTS

Products

Position	Product
1	W11125512 Whirlpool Refrigerator Glass Shelf
2	WP12463911 Whirlpool Refrigerator Glass Shelf
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	67001656 Whirlpool Refrigerator Bottle Trivet
8	W10241046 Whirlpool Refrigerator Divider
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
12	WP67003793 Whirlpool Refrigerator Temperature Slide
14	WPW10235370 Whirlpool Refrigerator Glide
16	WP12656018 Whirlpool Drawer Support
16	WP12656105 Whirlpool Drawer Support
17	WP67002659 Whirlpool Crisper Pan
18	WP12227304WD Whirlpool Refrigerator Drawer Support
19	TRIM, CRISPER
20	WP67006185 Whirlpool Refrigerator Crisper Frame
21	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251971 Whirlpool Ladder Assembly
24	67006425 Whirlpool Refrigerator Screw
25	W10215666 Whirlpool Refrigerator Screw
26	WP67006415 Whirlpool Refrigerator Screw
27	SLIDE
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	W11490183 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32	W10503185 Whirlpool Dishwasher Cutlery Basket
33	W10150061 Whirlpool Refrigerator Divider
34	W10348245 Whirlpool Refrigerator Freezer Basket
35	WP67002321 Whirlpool Refrigerator Divider Panel
36	WP98165 Whirlpool Screw
39	Rack, Ice
40	WP10972101 Whirlpool Refrigerator Spacer
41	WP67006908 Whirlpool Refrigerator Screw
42	WP841180A Whirlpool Microwave Glass Turntable Tray
43	W11173556 Whirlpool Refrigerator Shaft
45	W10348259 Whirlpool Refrigerator Bracket Assembly
45	W10348260 Whirlpool Refrigerator Bracket
46	WPW10474716 Whirlpool Refrigerator Gear
46	WPW10474715 Whirlpool Refrigerator Gear
