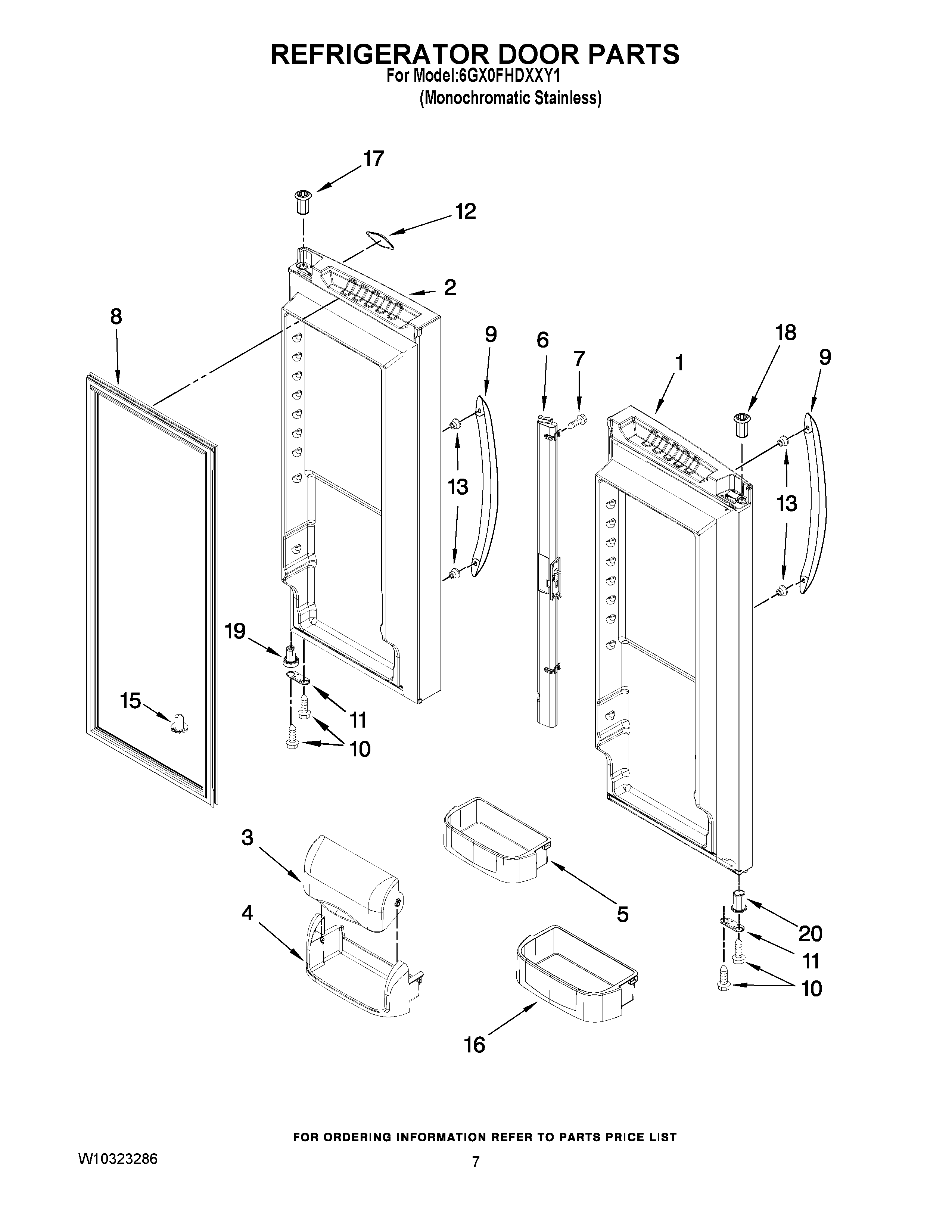

6GX0FHDXXY1 04 – REFRIGERATOR DOOR PARTS

6GX0FHDXXY1 04 – REFRIGERATOR DOOR PARTS

Written by

in

6GX0FHDXXY1 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10324005 Whirlpool Refrigerator Cantilever Bin
612722811AP Whirlpool Rail Mullion
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11401472 Whirlpool Refrigerator Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
15WP12028505AP Whirlpool Closing Cam
16WPW10289494 Whirlpool Refrigerator Cantilever Bin
1710961006AP Whirlpool Refrigerator Hinge Bushing
18BUSHING, DOOR UPPER LEFT (APOLLO GREY)
19W10853652 Whirlpool Refrigerator Hinge Bushing
20BUSHING, DOOR (BOTTOM LEFT)
