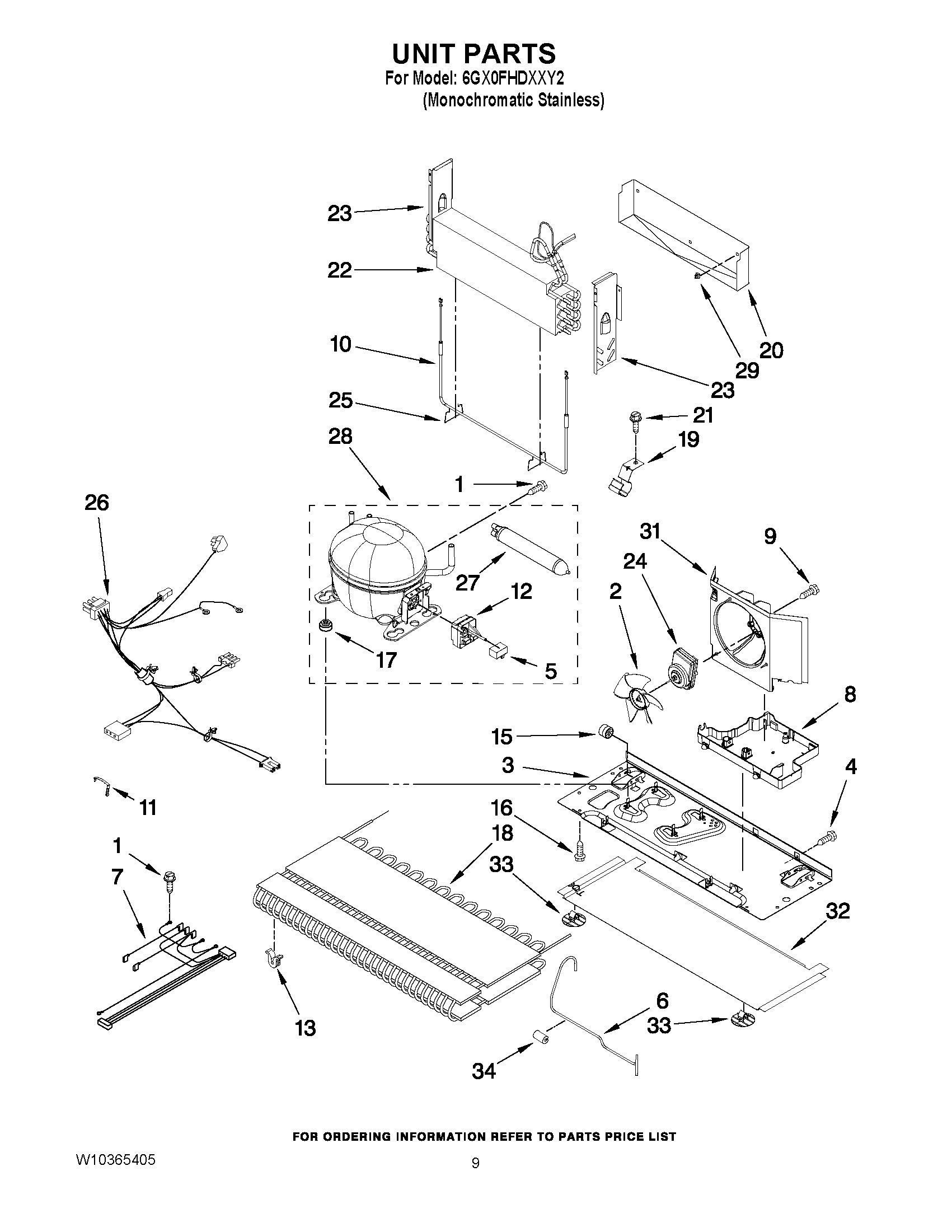

6GX0FHDXXY2 05 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	2321245 Whirlpool Refrigerator Capacitor
6	TUBE, DISCHARGE
7	HARNESS, EVAP. HEATER
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	WP67006908 Whirlpool Refrigerator Screw
10	12729132 Whirlpool Refrigerator Heater
11	Strap, Bale
12	WP2312007 Whirlpool Refrigerator Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
15	ROLLER ASSY.(REAR)
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346420 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11256565 Whirlpool Refrigerator Evaporator
23	Dam (Right Side)
23	Dam (Left Side)
24	WPW10246191 Whirlpool Refrigerator Motor
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT WITH POWER CORD
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
31	SHROUD
32	EXTENSION, BASEPAN
33	W10206339 Whirlpool Fastener
34	W10852725 Whirlpool Refrigerator Grommet
