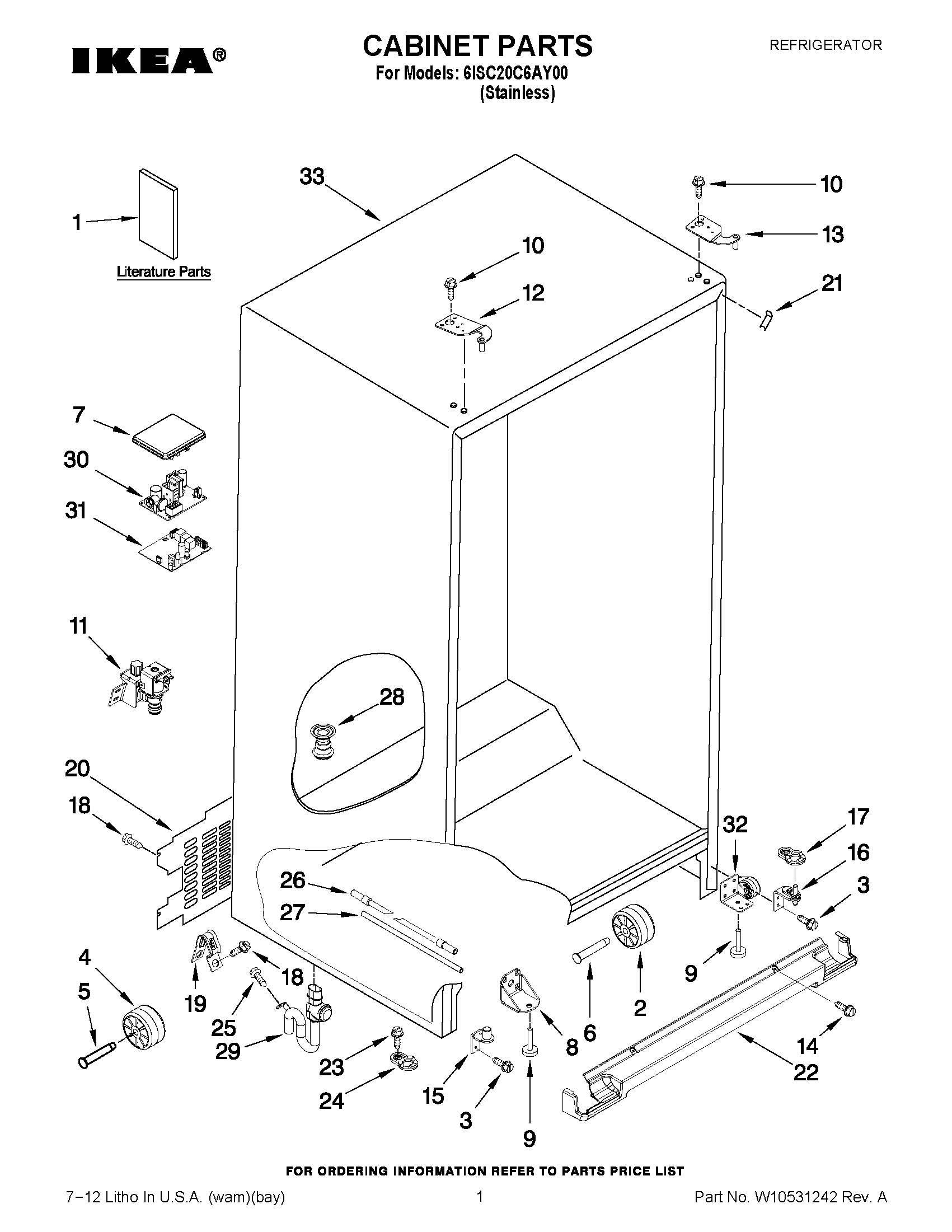

6ISC20C6AY00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	LID, HV BOX
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
11	WPW10258560 Whirlpool Refrigerator Inlet Valve
12	W11590581 Whirlpool Refrigerator Door Hinge
13	HINGE-DOOR
14	WPW10308489 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
17	W10500004 Whirlpool Refrigerator Door Hinge
18	SCREW
19	489348 Whirlpool Refrigerator Tube Clamp
20	COVER, UNIT
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	W10370680 Whirlpool Refrigerator Fitting
29	W10379525 Whirlpool Refrigerator Extension
30	WPW10356041-includeCORE Whirlpool WPW10356041 Refrigerator Electronic Control Board + Core
31	WPW10453912-includeCORE Whirlpool WPW10453912 Refrigerator Electronic Control Board + Core
32	W11266052 Whirlpool Refrigerator Bracket
33	CABINET (NOT A SERVICEABLE PART)
