6ISC20C6AY00 08 – DISPENSER FRONT PARTS

6ISC20C6AY00 08 – DISPENSER FRONT PARTS

Written by

in

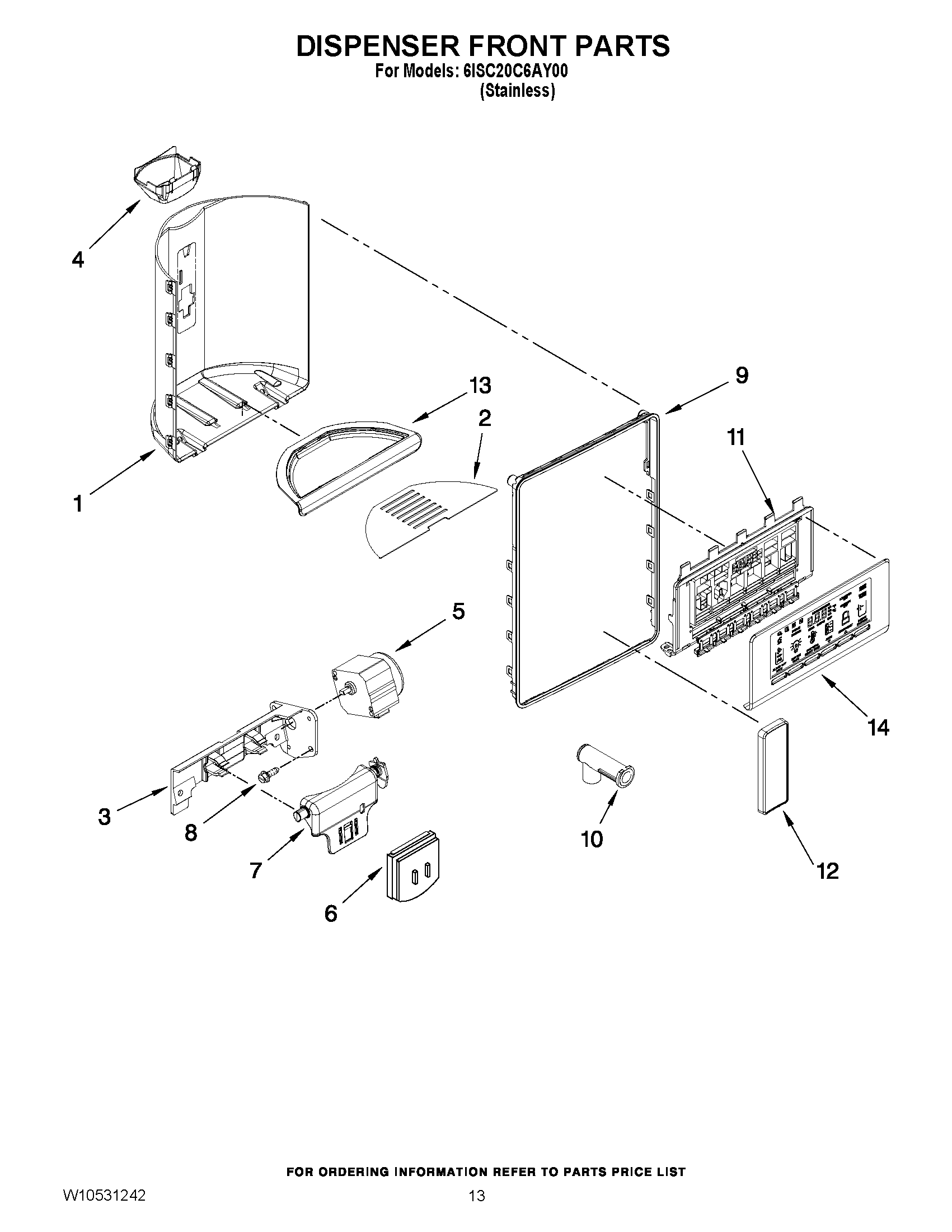

6ISC20C6AY00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2GRATE, DRIP TRAY
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10781989 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9TRIM RING
10W11566468 Whirlpool Spigot
11WPW10372212-includeCORE Whirlpool WPW10372212 Refrigerator Electronic Control Board + Core
12WPW10370594 Whirlpool Refrigerator Pad
13W10276254 Whirlpool Refrigerator Drip Tray
14FRONT COVER
