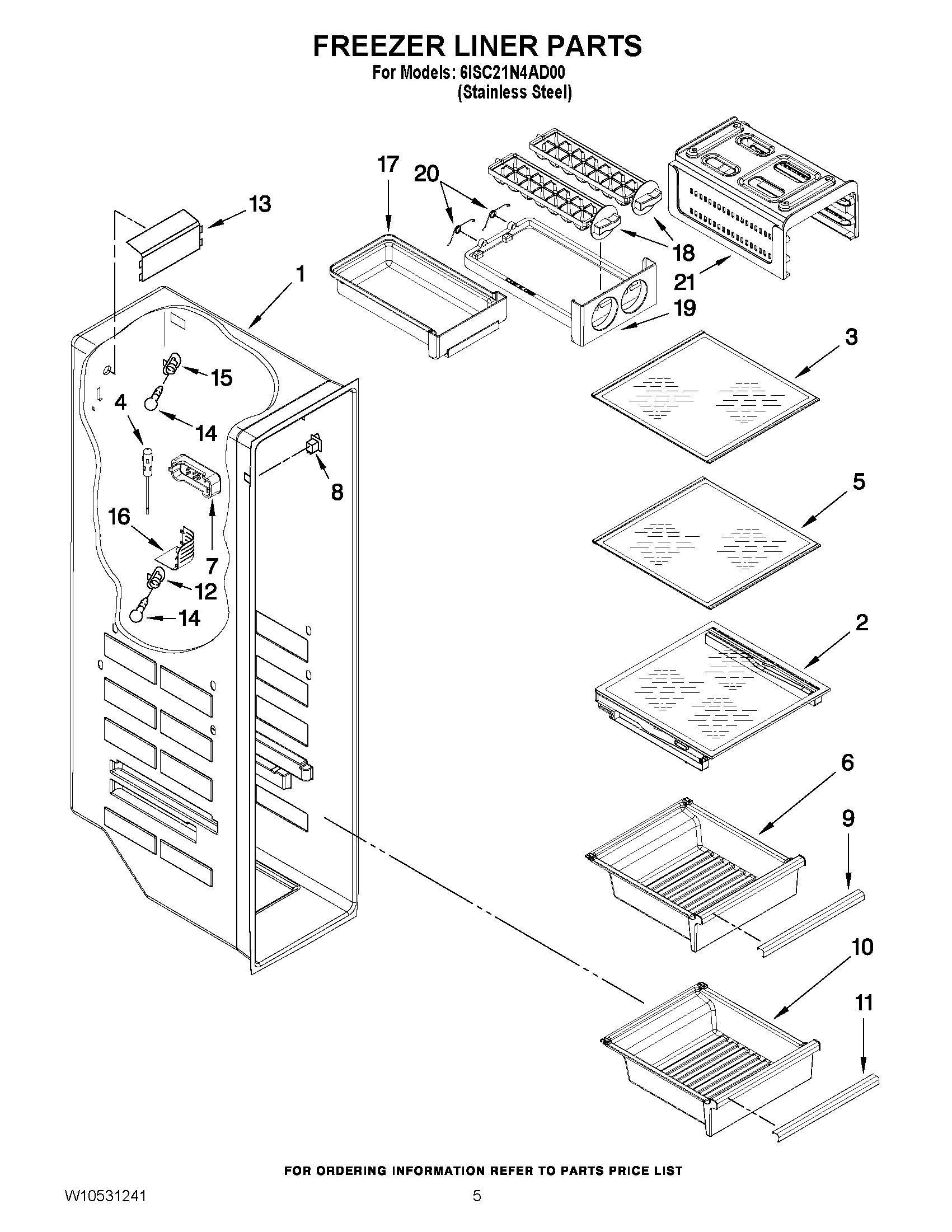

6ISC21N4AD00 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	COVER ASSY
3	WPW10238485 Whirlpool Glass Shelf
4	THERMISTOR
5	WPW10269146 Whirlpool Glass Shelf
6	PAN, FREEZER UPPER (ALSO ORDER 9)
7	WPW10425252 Whirlpool Refrigerator Cover
8	Rocker Arm Switch
10	PAN, FREEZER LOWER (ALSO ORDER 11)
11	TRIM, HANDLE
12	SOCKET
13	WPW10269101 Whirlpool Refrigerator Light Lens
14	WP67002552 Whirlpool Refrigerator Light Bulb
15	W11447232 Whirlpool Refrigerator Socket
16	W10260382 Whirlpool Refrigerator Cover
17	PAN, ICE TRAY
19	W10304316 Whirlpool Refrigerator Tray
20	SPRING, TWIST ICE
21	TWIST ICE SUPPORT
