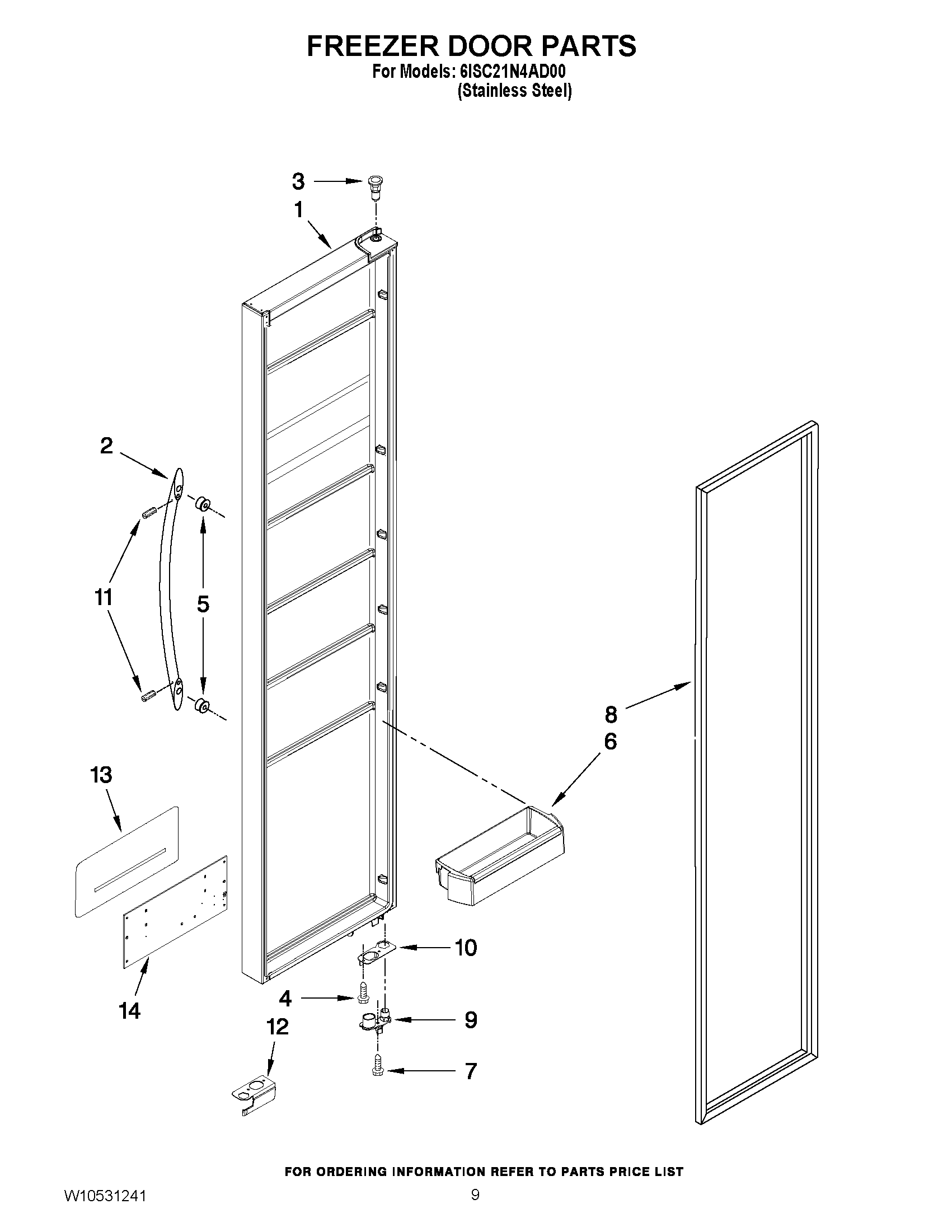

6ISC21N4AD00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2WPW10670421 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6W10309878 Whirlpool Control Bin
7SCREW
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12WPW10632062 Whirlpool Refrigerator Wire Cover
13FRONT COVER, CONTROL
14WPW10254301-includeCORE Whirlpool WPW10254301 Refrigerator Electronic Control Board + Core
