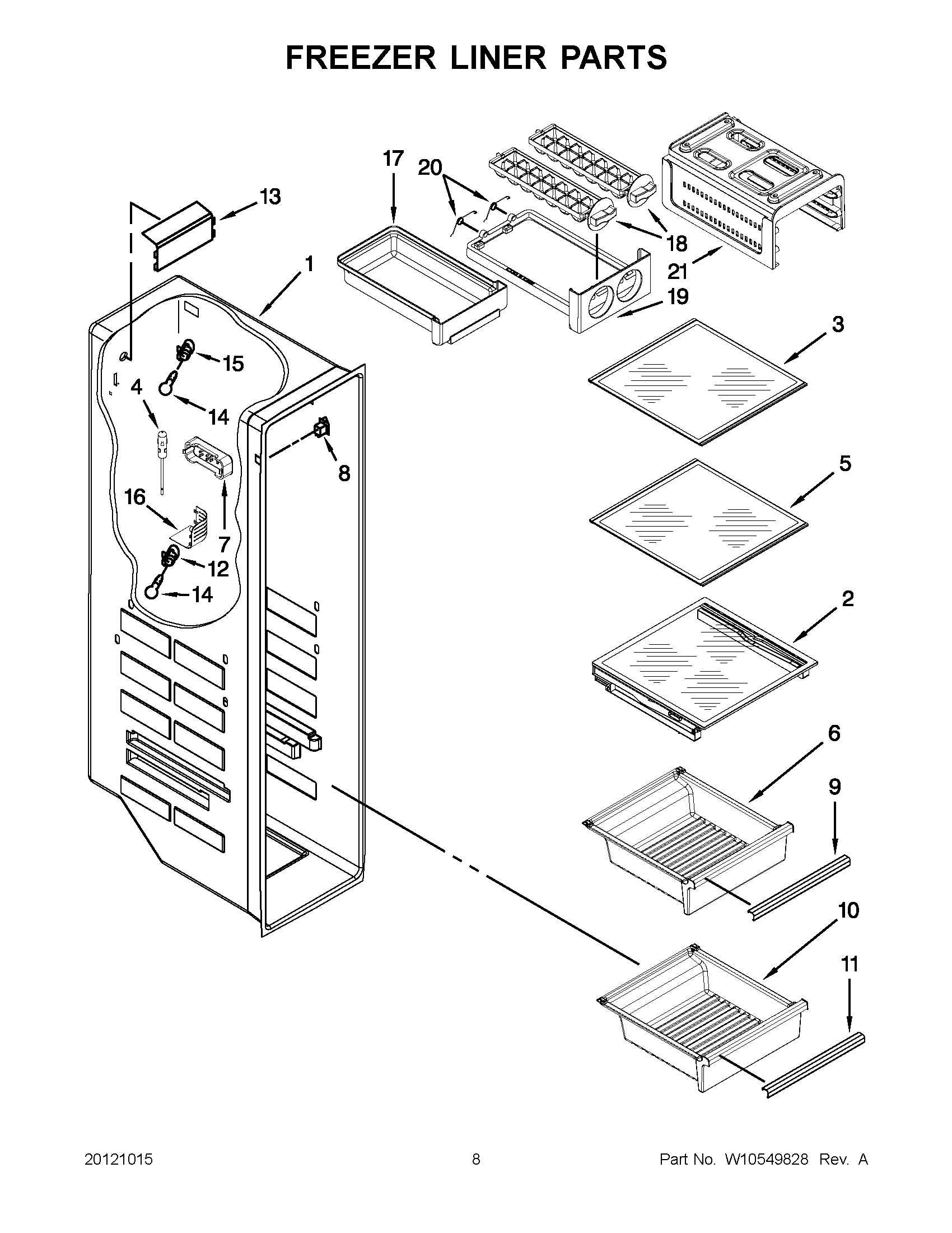

6ISC21N4AF00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10290891 Whirlpool Cover
3WPW10238485 Whirlpool Glass Shelf
4THERMISTOR
5WPW10269146 Whirlpool Glass Shelf
6PAN, FREEZER UPPER (ALSO ORDER 9)
7WPW10425252 Whirlpool Refrigerator Cover
8Rocker Arm Switch
10PAN, FREEZER LOWER (ALSO ORDER 11)
11TRIM, HANDLE
12SOCKET
13WPW10269101 Whirlpool Refrigerator Light Lens
14WP67002552 Whirlpool Refrigerator Light Bulb
15W11447232 Whirlpool Refrigerator Socket
16W10260382 Whirlpool Refrigerator Cover
17PAN, ICE TRAY
19W10304316 Whirlpool Refrigerator Tray
20SPRING, TWIST ICE
21TWIST ICE SUPPORT
