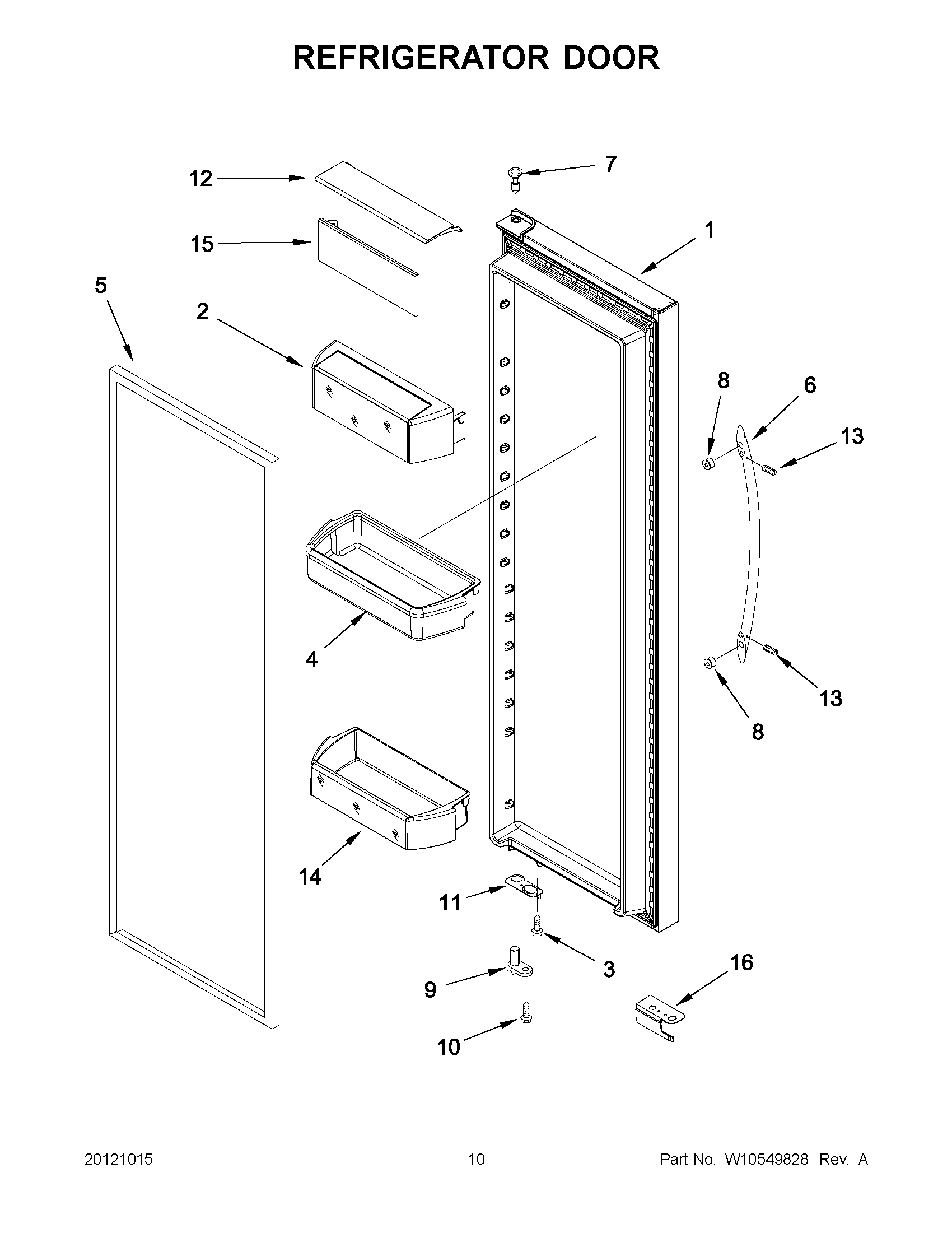

6ISC21N4AF00 05 – REFRIGERATOR DOOR

6ISC21N4AF00 05 – REFRIGERATOR DOOR

Written by

in

6ISC21N4AF00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ITEM 5) (SATINA)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4W10286561 Whirlpool Bin Containment Lever
5W10355582 Whirlpool Refrigerator Door Gasket
6WPW10670421 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10316883 Whirlpool Refrigerator Door Compressor
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
15WPW10316885 Whirlpool Refrigerator Compressor Door
16W11661847 Whirlpool Wire Cover
