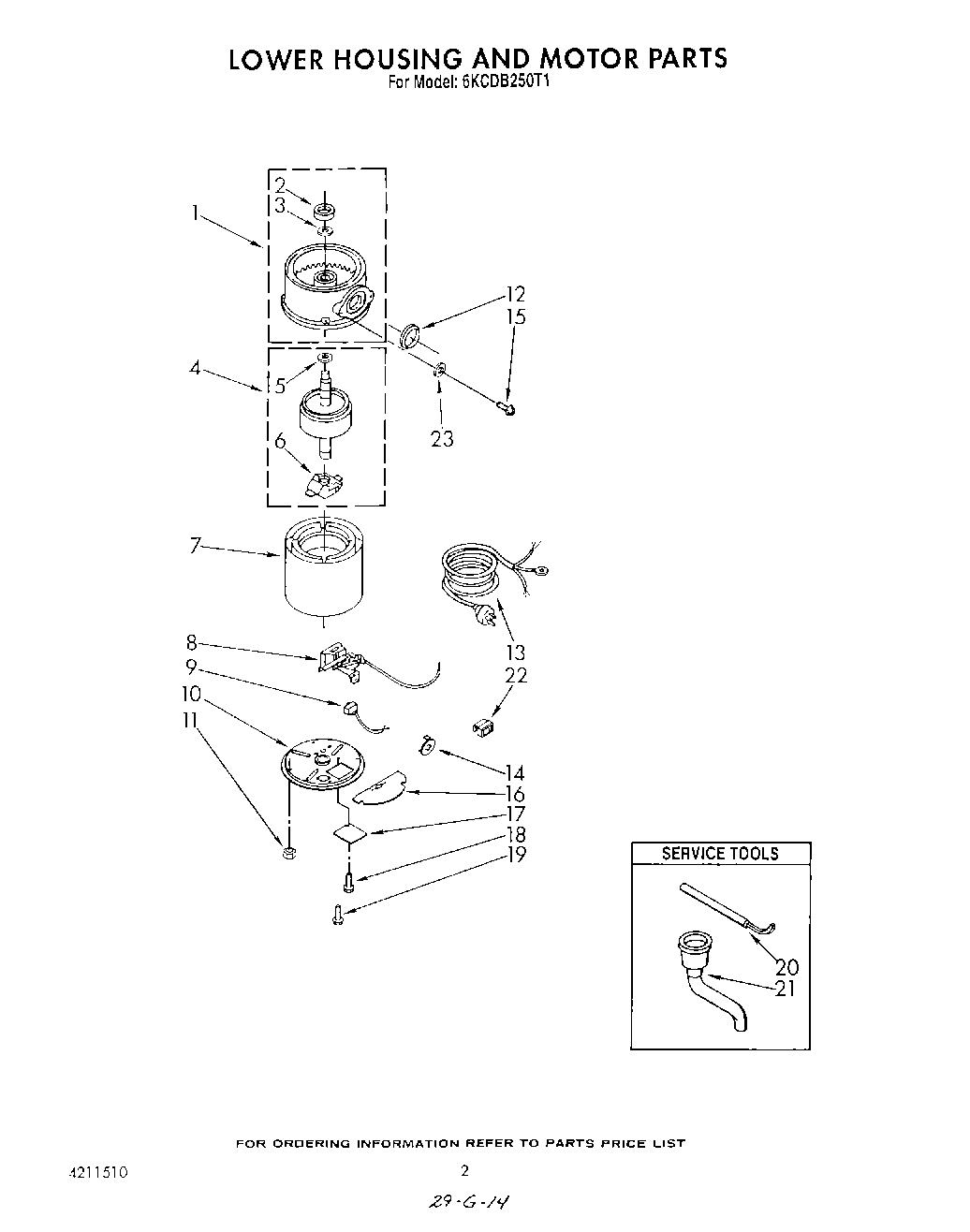

6KCDB250T1 02 – SECTION

Products

Position	Product
	Guide, Use And Care
	Repair Parts List
	Instructions, Installation
1	4211313 Whirlpool Disposer End Bell
2	Seal, Water & Oil
3	Washer, Thrust
4	Rotor & Shaft Assembly
5	4211321 Whirlpool Washer
6	Actuator Assembly, Centrifugal
7	Stator Assembly
8	8174312 Whirlpool Disposer Switch
9	Protector, Overload
10	End Frame Assembly, Lower
11	W10080180 Whirlpool Nut
12	Gasket, Tailpipe
13	Plug & Cord
14	Clip, Retainer
15	WP8204624 Whirlpool Bolt
16	Shield, Wire
17	Cover, Terminal
18	Screw
19	Screw, Tailpipe
20	WP8174310 Whirlpool Disposer Wrench
21	4211396 Whirlpool Disposer Adapter
22	Cord, Adapter
23	Washer (2)
