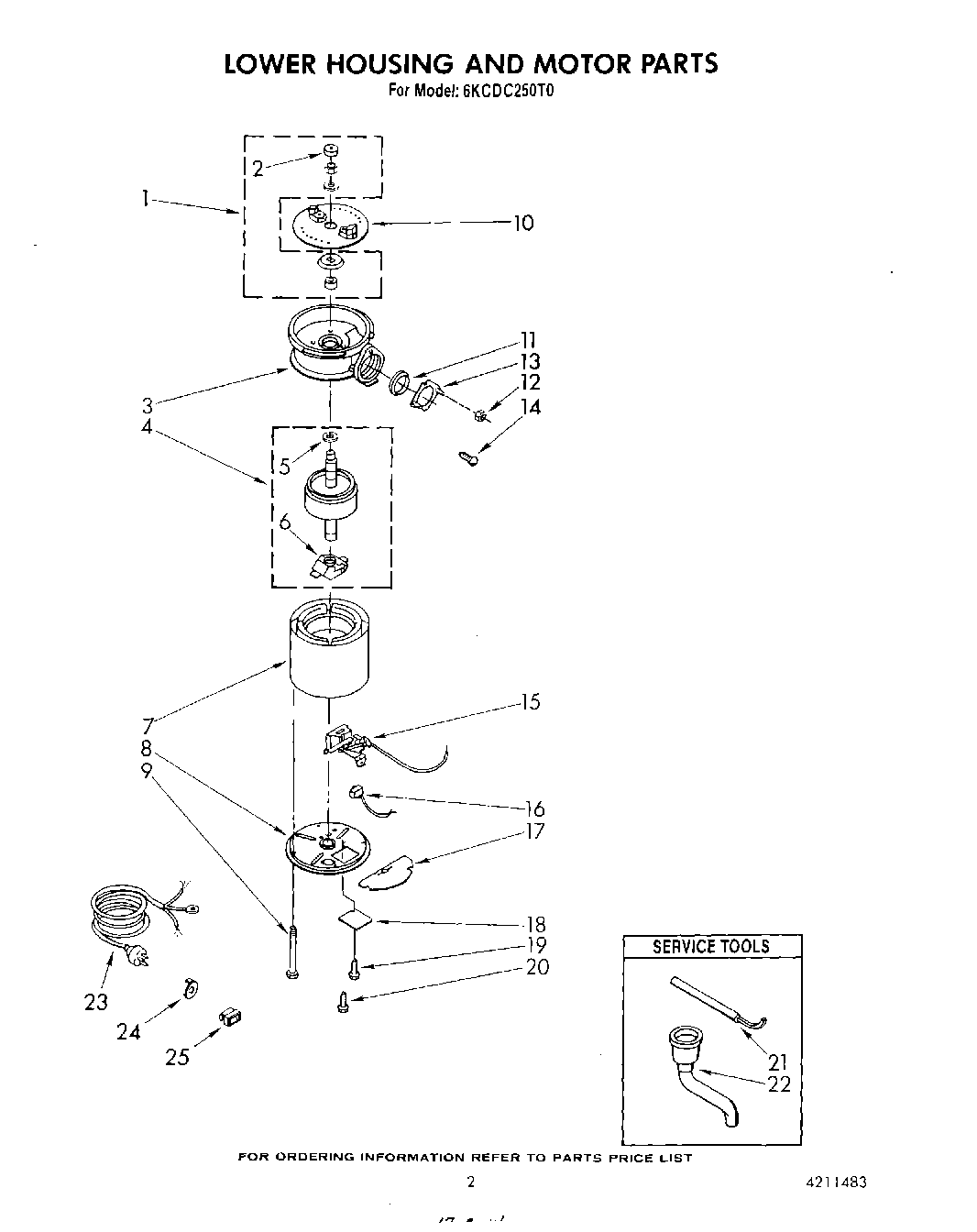

6KCDC250T0 02 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions, Installation
	Guide, Use And Care
1	4211578 Whirlpool Disposer Sleeve
3	End Bell Assembly (Upper)
4	Rotor And Shaft Assembly
5	4211321 Whirlpool Washer
6	Actuator Assembly, Centrifugal
7	Stator Assembly
8	End Frame Assembly, Lower
9	Bolt, Thru
10	Shredder
11	Gasket, Tailpipe
12	Nut (2)
13	Adapter
14	WP8204624 Whirlpool Bolt
15	Switch Assembly, Start
16	Protector, Overload
17	Shield, Wire
18	Cover, Terminal
19	Screw
20	Screw, Tailpipe
21	WP8174310 Whirlpool Disposer Wrench
22	4211396 Whirlpool Disposer Adapter
23	Plug & Cord
24	Clip, Retainer
25	Cord, Adapter
