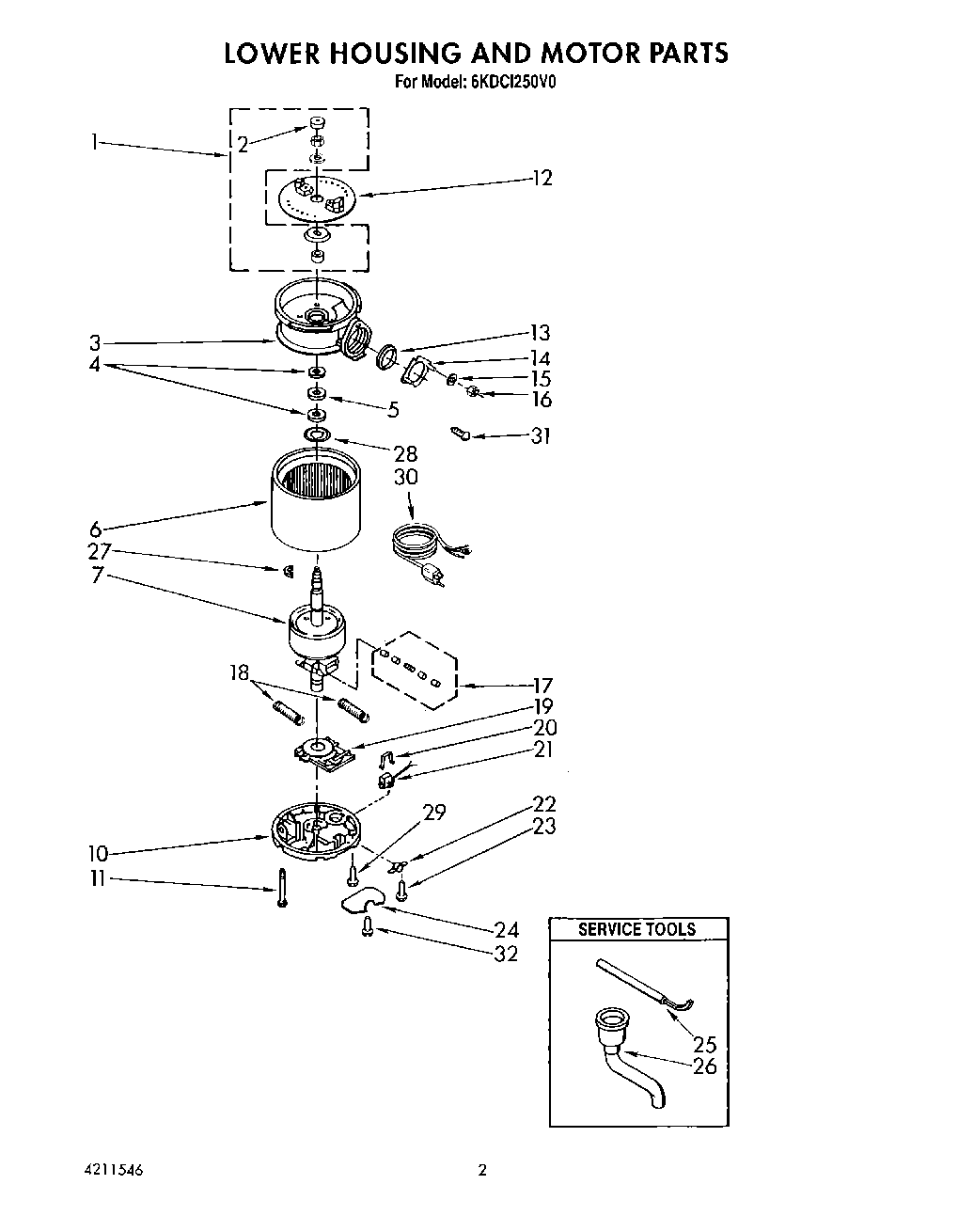

6KCDI250V0 02 – SECTION

Products

PositionProduct
14211578 Whirlpool Disposer Sleeve
3End Bell Assembly, Upper
4Washer, Phenolic (2)
5Washer, Rubber
6Stator Assembly
7Rotor And Shaft Assembly
10End Frame Assembly (Lower)
11Bolt, Thru (4)
12Shredder
13Gasket, Tailpipe
14Adapter
15Washer (2)
16Nut (2)
17Transfer Assembly
18Rotor And Shaft Assembly
19Switch Assembly, Start
20Clip, Overload
21Protector, Overload
22Clamp, BX
23Screw, Clamp (2)
24Cover, Terminal
25WP8174310 Whirlpool Disposer Wrench
264211396 Whirlpool Disposer Adapter
27Ring, C
28Washer, Thrust
29Screw, Ground
30Plug & Cord
31WP8204624 Whirlpool Bolt
32Screw
