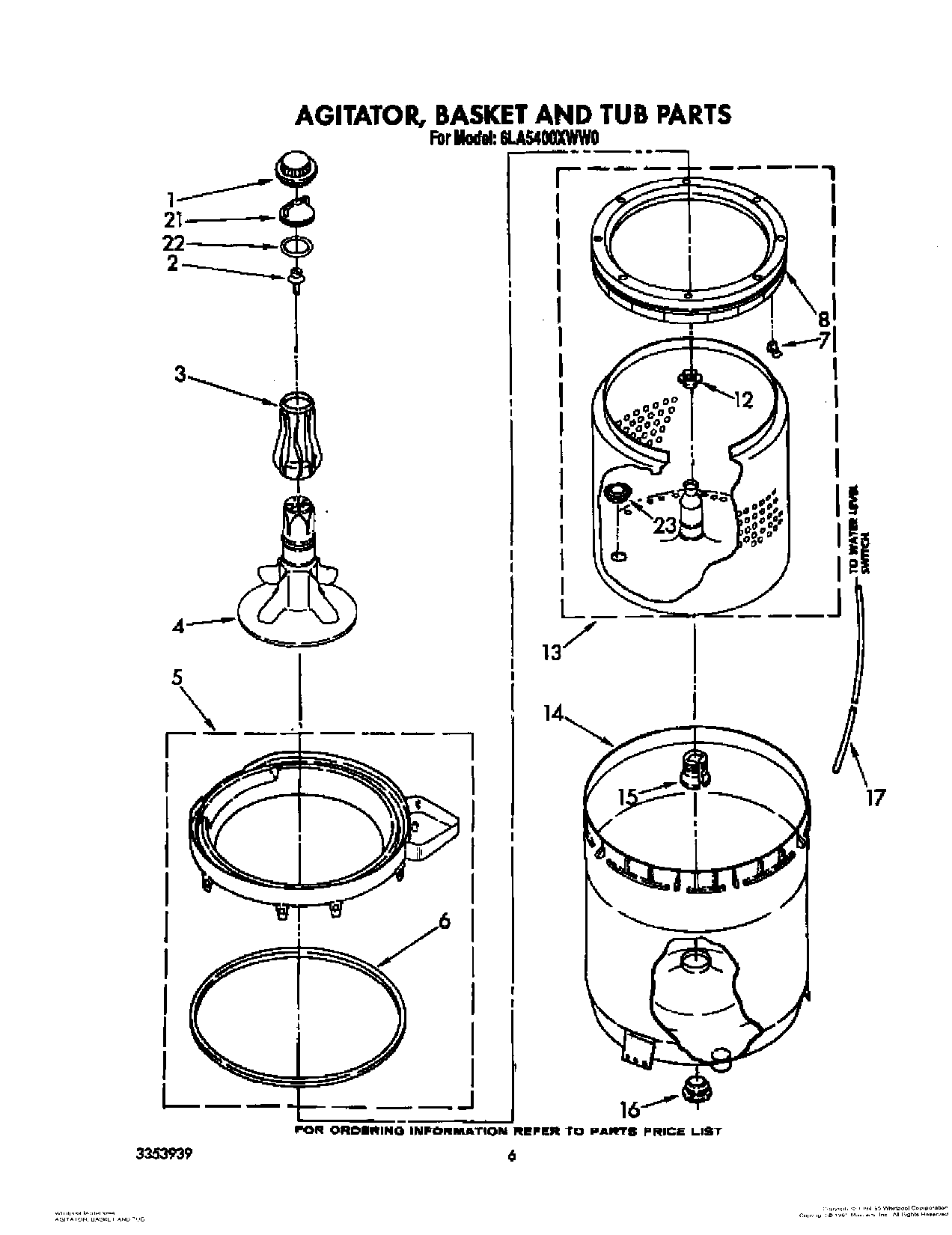

6LA5400XWF0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63753 Whirlpool Filter
4387838 Whirlpool Washer Agitator with Auger Assembly
5Tub Ring & Gasket
6WP3359586 Whirlpool Tub Seal
7WP3956205 Whirlpool Balance Ring
8WP8519815 Whirlpool Washer Balance Ring Clip
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14Tub
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17WP353244 Whirlpool Hose
21WPW10074580 Whirlpool Agitator Inner Cap and Seal
22WPW10072840 Whirlpool Seal Assembly
23Snap-In-Plugs (4)
