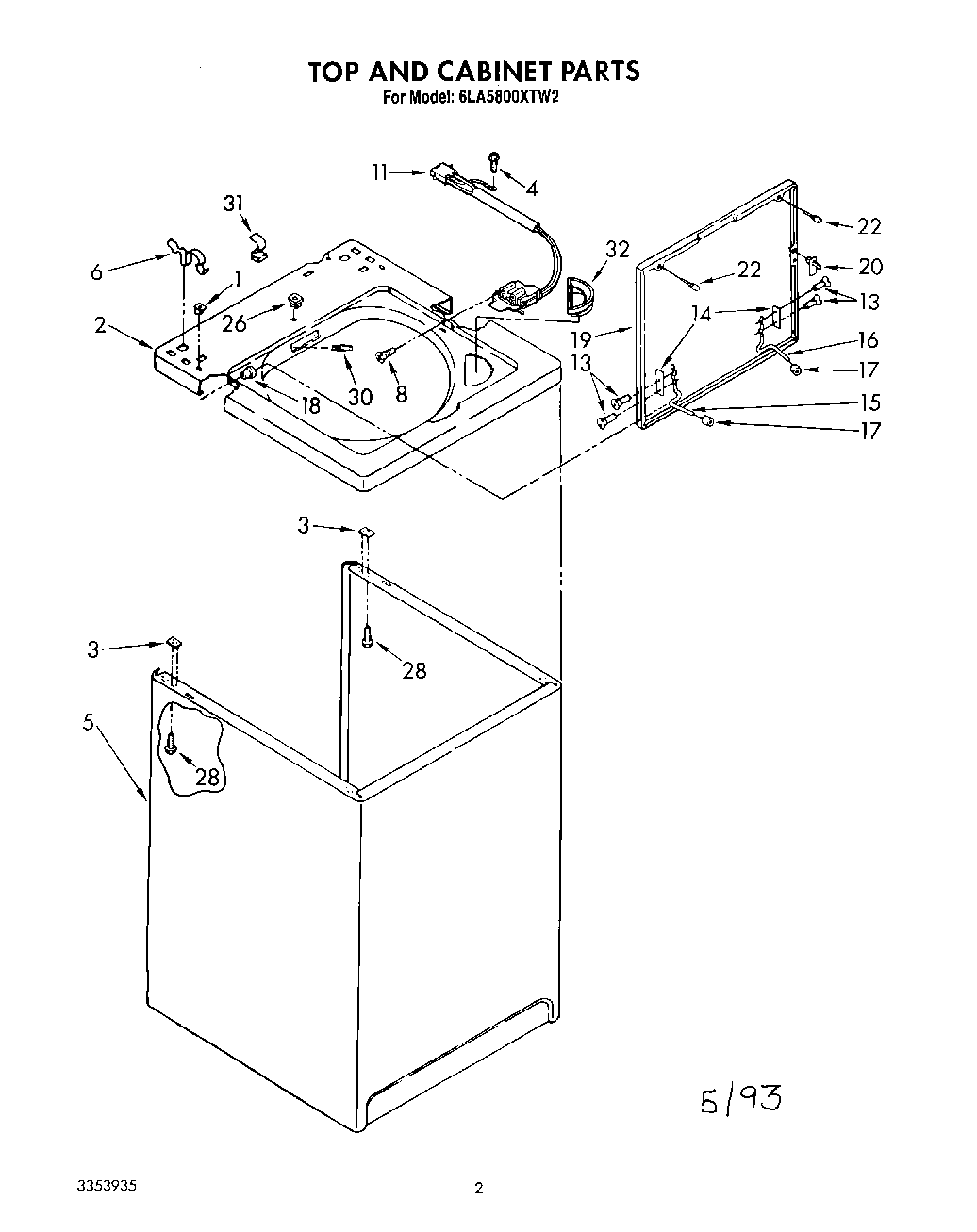

6LA5800XTW2 01 – TOP AND CABINET, LIT/OPTIONAL

6LA5800XTW2 01 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

6LA5800XTW2 01 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3353935
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3351410
WP285195 Whirlpool Sealer Assembly
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3354063
WPL LIT3353923
WPL LIT3353302
WPL LIT3353305
Golden Harvest (Uncut)
Drain Protector (Not Included)
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Almond (Uncut)
Golden Harvest
285320 Whirlpool Washer Siphon Break Kit
350930 Whirlpool White Spray Paint
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
63580 Whirlpool Washer Fabric Softener Dispenser
350572 Whirlpool Oil Transmission 15 Oz
350938 Whirlpool Spray Gun
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (Platinum)
2Top (Toast)
2Top (Almond)
2Top (White)
3WP62750 Whirlpool Spacer
4WP3351614 Whirlpool Screw
5Cabinet (Golden Harvest)
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
5Cabinet (Toast)
5Cabinet (Platinum)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Platinum)
19Lid (Toast)
19Lid (Almond)
19Lid (White)
19Lid (Golden Harvest)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
26Stop, Push-In Top
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
