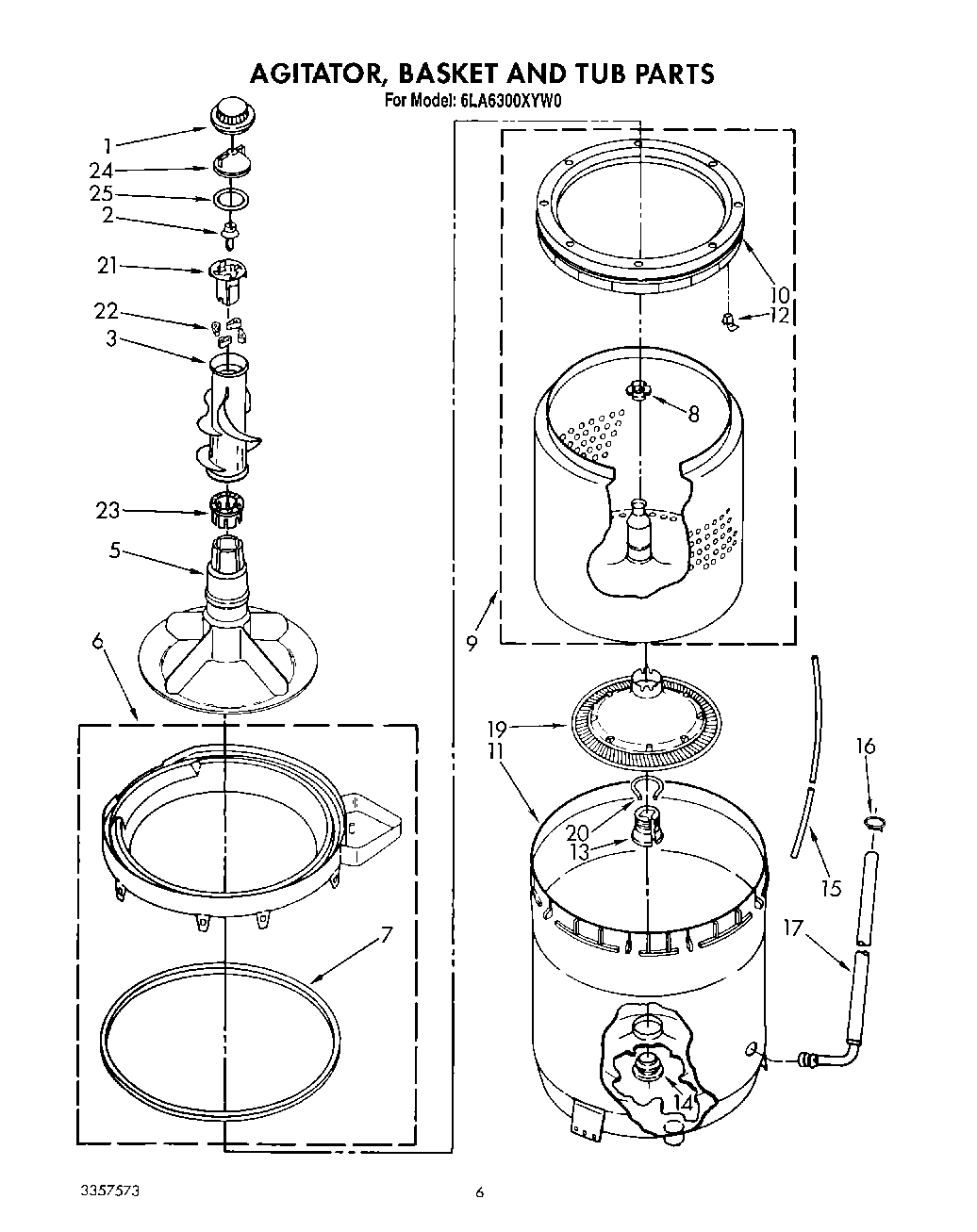

6LA6300XYW0 04 – AGITATOR, BASKET AND TUB

6LA6300XYW0 04 – AGITATOR, BASKET AND TUB

Written by

in

6LA6300XYW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3349019 Whirlpool Upper Agitator
5WP3350830 Whirlpool Agitator Assembly
6Tub Ring & Gasket
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket & Balance Ring
11Tub
12WP8519815 Whirlpool Washer Balance Ring Clip
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16WP596669 Whirlpool Hose Clamp
17Hose, Bleach
19285868 Whirlpool Washer Filter Plug Kit
20Lock, Filter
21285811 Whirlpool Washer Agitator Repair Kit
2280040 Whirlpool Washer Agitator Dog Kit
23285587 Whirlpool Thrust Washer
24WPW10074580 Whirlpool Agitator Inner Cap and Seal
25WPW10072840 Whirlpool Seal Assembly
