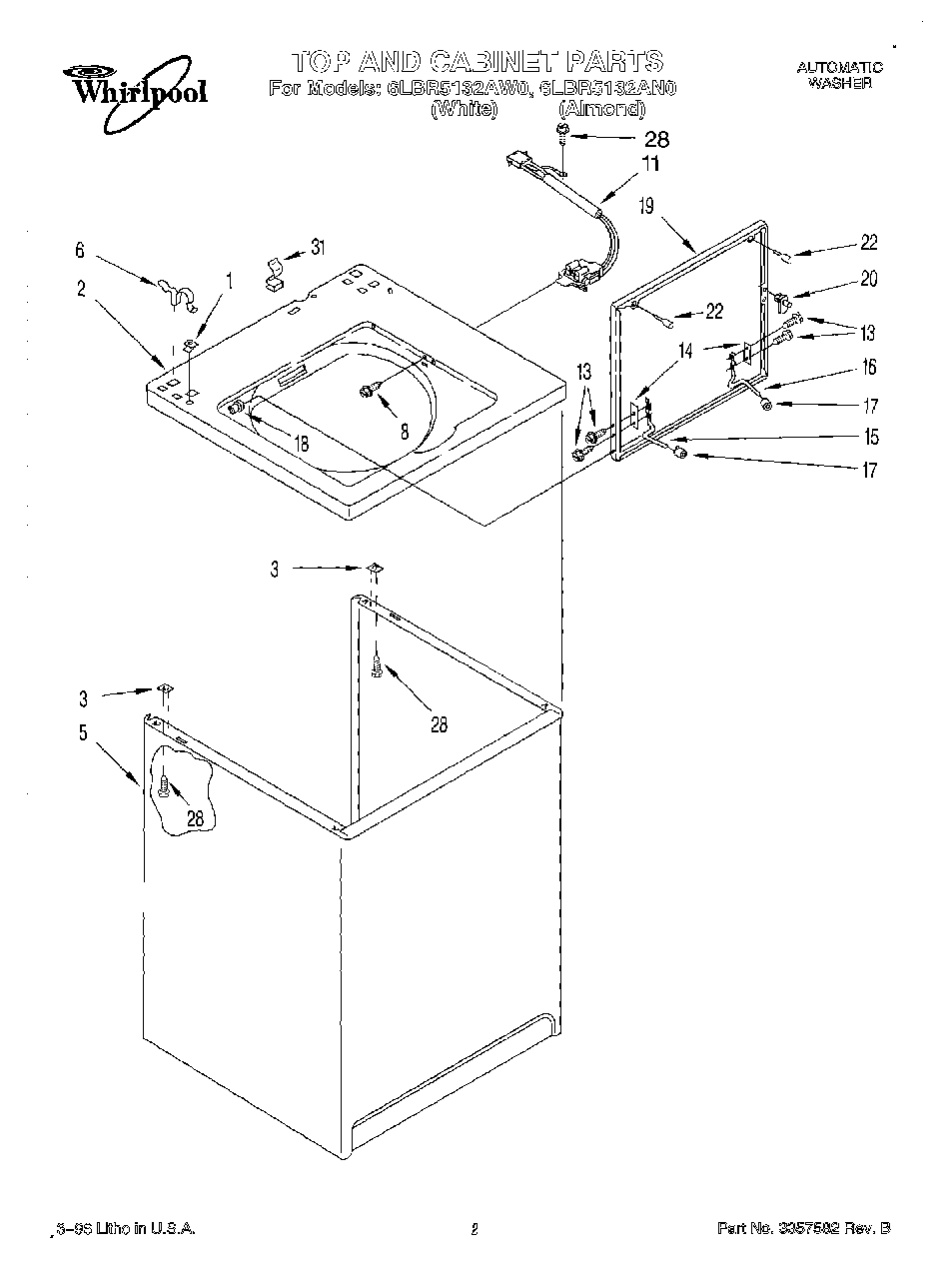

6LBR5132AN0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	Energy Guide
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	Manual, (Washer) Do-It-Yourself
	List, Repair Parts
	Sheet, Installation Instructions
	Label, Wiring Diagram
	Guide, Use and Care
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	350930 Whirlpool White Spray Paint
	Drain Protector (Not Included)
	285320 Whirlpool Washer Siphon Break Kit
	350938 Whirlpool Spray Gun
	Almond (Uncut)
1	WP357213 Whirlpool Hinge Stopper
2	Top (For Designer White Model)
2	Top (For Almond Model)
3	WP62750 Whirlpool Spacer
5	Cabinet (For Almond Model)
5	Cabinet (For Designer White Model)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	SCREW
31	WP90016 Whirlpool Clip
