6LBR5132AN1 01 – TOP AND CABINET, LIT/OPTIONAL
Written by
in

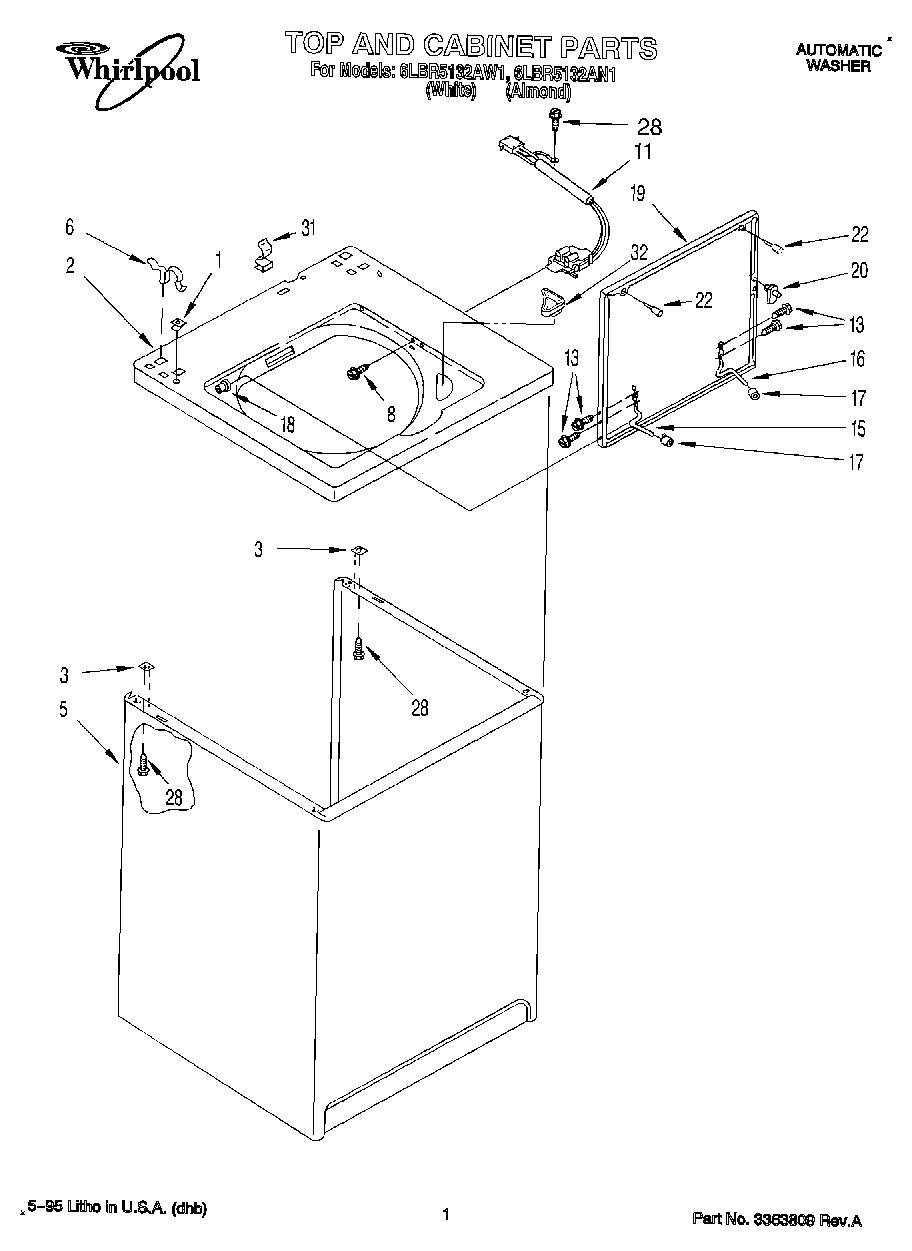

6LBR5132AN1 01 – TOP AND CABINET, LIT/OPTIONAL
Products
Position
Product
Energy Guide
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
WPL 89121
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
Manual, (Washer) Do-It-Yourself
WPL LIT3363809
Sheet, Installation Instructions
Label, Wiring Diagram
Guide, Use and Care
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
350930 Whirlpool White Spray Paint
Drain Protector (Not Included)
350938 Whirlpool Spray Gun
285320 Whirlpool Washer Siphon Break Kit
1
WP357213 Whirlpool Hinge Stopper
2
Top (For Designer White Model)
2
Top (For Almond Model)
3
WP62750 Whirlpool Spacer
5
Cabinet (For Almond Model)
5
Cabinet (For Designer White Model)
6
WP62780 Whirlpool Cabinet Clip
8
WP3356311 Whirlpool Screw
11
285671 Whirlpool Lid Switch Assembly
13
SCREW
15
WP54584 Whirlpool Hinge
16
WP54583 Whirlpool Hinge
17
Bumper, Lid Hinge
18
WP21258 Whirlpool Washer Lid Hinge Bearing
19
Lid (Almond)
19
Lid (White)
20
WP358684 Whirlpool Strike Assembly
22
WP9724509 Whirlpool Bumper
28
SCREW
31
WP90016 Whirlpool Clip
32
WP3362952 Whirlpool Bezel
←
